Description

Price

1

NUT, SPEED(10)

7670057

$1.49

2

GUARD-MUD,REAR,LH,BLK

5431796-070

Unavailable

2

GUARD-MUD,REAR,RH,BLK

5431797-070

Unavailable

3

RIVET(50)

7661645

$3.99

4

SCREW(10)

7511930

$2.39

5

WASHER(10)

7555792

$4.79

5

WASHER(10)

7555792

$4.79

6

FOIL,REAR CAB,REAR

5811107

$6.46

7

CAB,REAR,GEN 4,DESERT DUNE

5432117-282

Unavailable

8

NUT(10)

7541925

$1.49

8

NUT(10)

7541925

$1.49

9

RETAINER,SEAT LATCH

5224592

Unavailable

10

FOIL,TAPE,3 X 12

5811308

$12.79

11

SCREW(10)

7512242

$2.39

12

WASHER, FLAT(10)

7555859

$1.49

13

SCREW(10) Substituted by 7511989

7512085

Unavailable

14

TOOLBOX

5431786

$53.59

15

BLIND RIVET(50)

7621403

$1.49

16

BRACKET,LEVER RETAINER

5211033

$29.25

17

LATCH,SEAT

1040387

$47.99

18

SPRING, LATCH

7041370

$9.59

19

COVER,SEAT,BLK.

2681747-070

$141.65

19

SEAT,BLK

2682441-070

$424.98

19

FOIL,SEATBASE,LG.

5811104

Unavailable

19

FOIL,SEATBASE,SM.

5811105

$9.91

20

BUMPER-RUBBER

5412067

$3.99

21

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

22

COVER, TOOLBOX

5431787

Unavailable

23

CAP,DRAIN

5410896

$5.59

24

Asm., Front Gearcase (See Front Housing Pg. C1)

-------

Unavailable

25

WASHER(10)

7552603

$1.49

26

SCREW(10)

7512492

$1.49

27

GUARD-ROCK

5433435

Unavailable

28

WASHER-SKID PLATE

7556065

$4.79

29

SCREW,(10)

7517386

$1.49

29

SCREW,(10)

7517386

$1.49

30

WASHER(10)

7558301

$1.49

31

NUT-LOCK(10)

7542122

$1.49

32

MOUNT,RUBBER

5411548

$27.99

33

SCREW(10)

7515111

$7.19

34

BOLT(10)

7512297

$5.59

35

FRAME MAIN,5-SPEED,BLK

1013381-067

Unavailable

36

FOOTWELL-LH,NY,MAN,BLK

5433391-070

$198.39

36

FOOTWELL-RH,NY,MAN,BLK

5433392-070

Unavailable

37

BOLT(10)

7512232

$1.49

38

FOIL FOAM

5811111

$32.37

39

FOIL,FR,REAR CAB

5811106

$8.89

40

FOIL-FOAM,(6X1)

5811087

Unavailable

41

DECAL-4 STRK,CARB/FILTER INFO

7079902

Unavailable

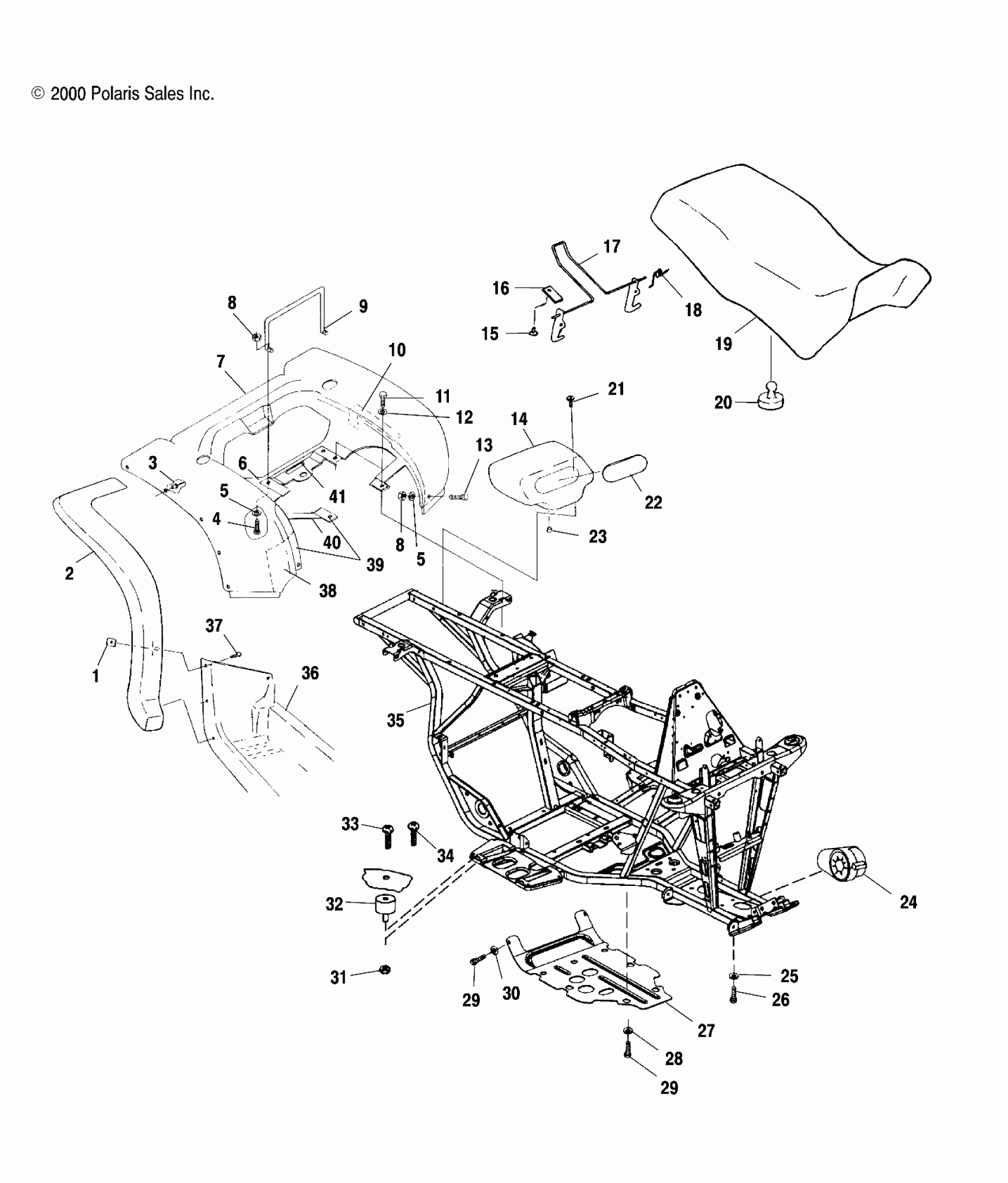

Polaris XPEDITION 325 - A01CK32AA REAR CAB and SEAT - A01CK32AA (4964086408A003) Diagram

NUT, SPEED(10)

GUARD-MUD,REAR,LH,BLK

GUARD-MUD,REAR,RH,BLK

RIVET(50)

SCREW(10)

WASHER(10)

WASHER(10)

FOIL,REAR CAB,REAR

CAB,REAR,GEN 4,DESERT DUNE

NUT(10)

NUT(10)

RETAINER,SEAT LATCH

FOIL,TAPE,3 X 12

SCREW(10)

WASHER, FLAT(10)

SCREW(10) Substituted by 7511989

TOOLBOX

BLIND RIVET(50)

BRACKET,LEVER RETAINER

LATCH,SEAT

SPRING, LATCH

COVER,SEAT,BLK.

SEAT,BLK

FOIL,SEATBASE,LG.

FOIL,SEATBASE,SM.

BUMPER-RUBBER

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

COVER, TOOLBOX

CAP,DRAIN

Asm., Front Gearcase (See Front Housing Pg. C1)

WASHER(10)

SCREW(10)

GUARD-ROCK

WASHER-SKID PLATE

SCREW,(10)

SCREW,(10)

WASHER(10)

NUT-LOCK(10)

MOUNT,RUBBER

SCREW(10)

BOLT(10)

FRAME MAIN,5-SPEED,BLK

FOOTWELL-LH,NY,MAN,BLK

FOOTWELL-RH,NY,MAN,BLK

BOLT(10)

FOIL FOAM

FOIL,FR,REAR CAB

FOIL-FOAM,(6X1)

DECAL-4 STRK,CARB/FILTER INFO
