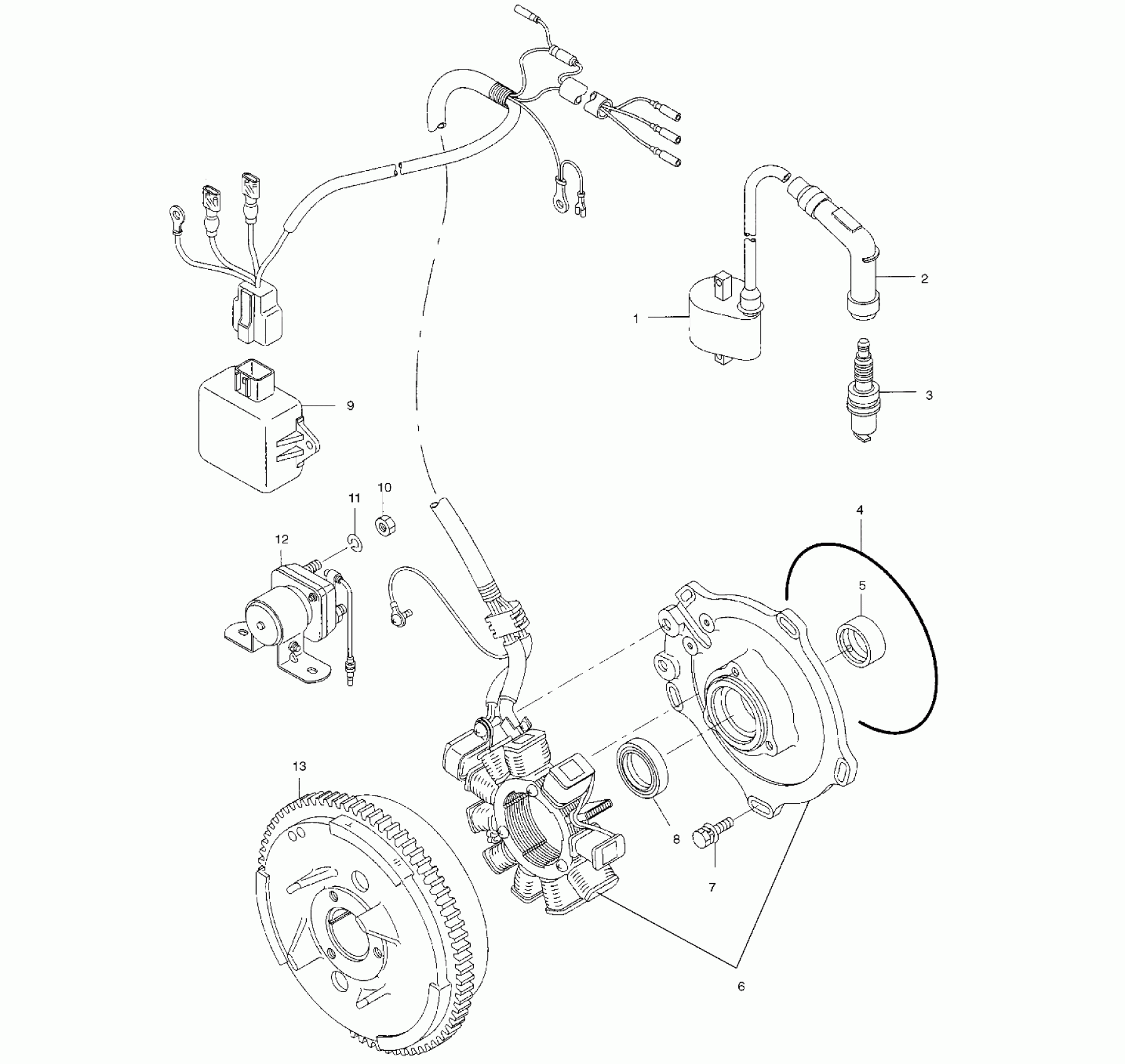

Polaris XPEDITION 325 - A01CK32AA MAGNETO - A01CK32AA (4964086408C014) Diagram

#

Description

Price

1

COIL,IGNITION Substituted by 3086483

3086484

Unavailable

2

CAP-SPARK PLUG

3087037

$39.99

3

SPARKPLUG, BKR6E(10) Substituted by 3070172

3084997

Unavailable

4

O-RING (Replace w/same color)

3084978

$35.99

4

O-RING(RED) (Replace w/same color) NOTE: Use Red O-Ring for these Engine Serial #'s: #0000334-337,339-341,345,346,348-359,364,366-379, 381-392,397,399-401,420,445,447-467,469-471 #0000475,477-480,4

3086992

$13.99

5

BEARING-DRY

3086460

$27.99

6

PLATE,ASM (Incl. 5,8)

3086904

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

CDI,SYSTEM

3086905

Unavailable

10

Nut

3083073

$2.39

11

WASHER SPRING(10)

3080077

$2.39

12

SWITCH-MAGNETIC

3086236

Unavailable

13

Flywheel w/Ring Gear

3086457

Unavailable
