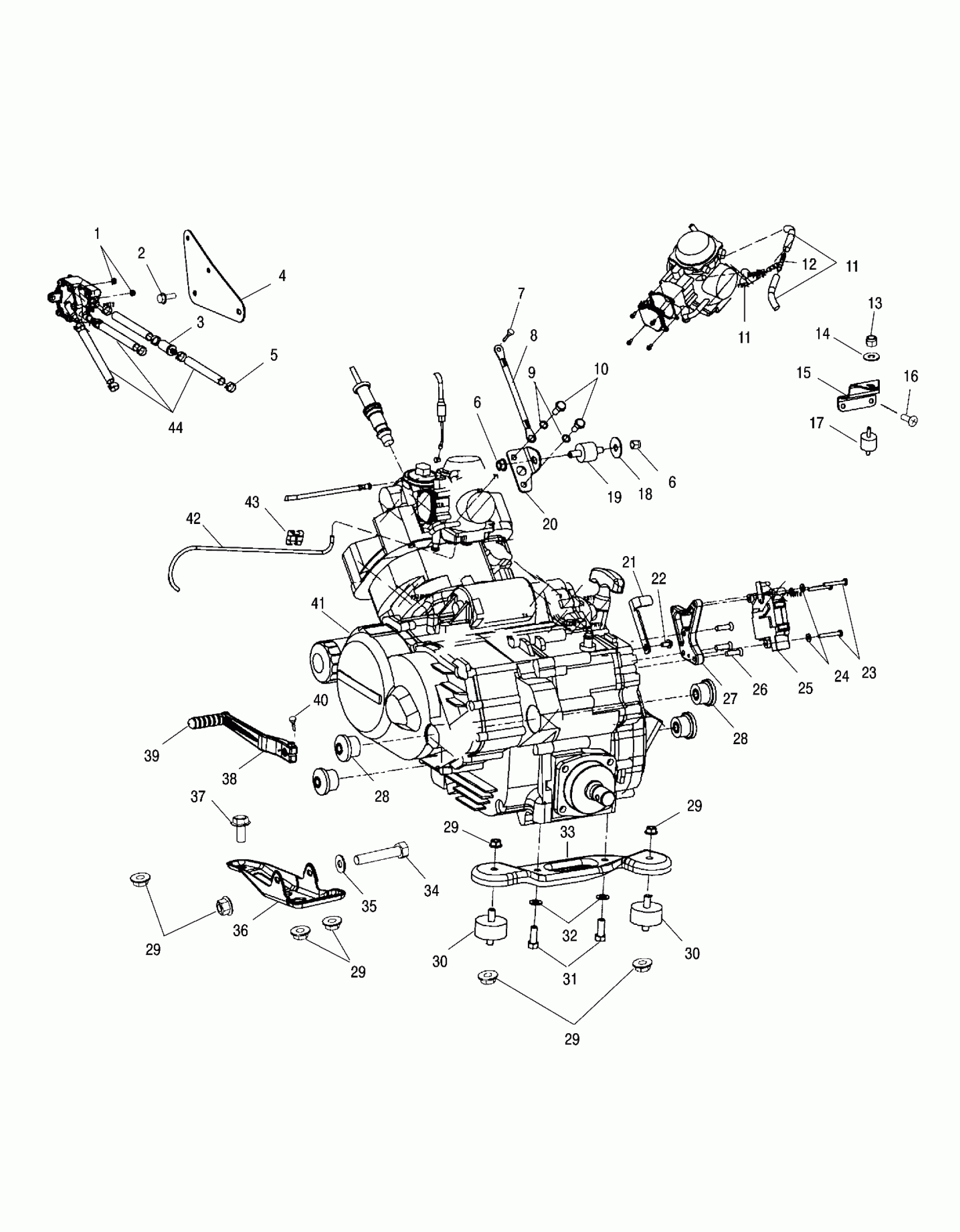

Polaris XPEDITION 325 - A01CK32AA ENGINE MOUNTING - A01CK32AA (4964086408A009) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

SCREW,10-24X5/8

7517756

$1.49

3

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

4

STRAP-FUEL PUMP,MTG,BLK

5243829-067

Unavailable

5

HOSE CLAMP, RED

7080003

$1.49

6

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

6

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

7

SCREW,(10)

7517386

$1.49

8

CABLE,GND-ENGINE

4010132

Unavailable

9

LOCK WASHER(10)

7552901

$1.49

10

BOLT(10)

7512315

$4.79

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

NUT-LOCK(10)

7542122

$1.49

14

WASHER(10)

7558301

$1.49

15

BRACKET-CARB MOUNT,BLK

5244058-067

$3.83

16

SCREW & WASHER(10)

3084205

$3.99

17

MOUNT,CARB.

3110050

$12.99

18

WASHER(10)

7555823

$3.99

19

MNT,ENG.,3/8-16X.66,3-TAB

3021180

$18.23

20

MOUNT,ENGINE,TOP MAN,BLK

5244517-067

$7.43

21

LEVER-REVERSE,BLK

5243586-067

Unavailable

22

SCREW

7517653

Unavailable

23

SCREW(10)

7510504

$6.76

24

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

25

ACTUATOR-POLLAK,18-201-01

4010265

Unavailable

26

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.79

27

MOUNT,ACTUATOR,REV,MACH

5132141

$24.79

28

MOUNT,RUBBER,ENGINE,MAN

5411927

$11.59

28

MOUNT,RUBBER,ENGINE,MAN

5411927

$11.59

29

NUT

7547108

$4.79

29

NUT

7547108

$4.79

29

NUT

7547108

$4.79

29

NUT

7547108

$4.79

29

NUT

7547108

$4.79

30

MOUNT,RUBBER,REAR Substituted by 3110068

3110045

Unavailable

30

MOUNT,RUBBER,REAR Substituted by 3110068

3110045

Unavailable

31

SCREW(10)

7512492

$1.49

32

WASHER(10)

7552603

$1.49

33

MOUNT,5 SPEED LWR,REAR,BLK.

5242984-067

$15.67

34

SCREW CAP(10)

7515406

$7.19

35

WASHER(10)

7555806

$1.49

36

MOUNT-ENGINE LOWER,MANUAL,BLK

5242905-067

$11.59

37

SCREW,(10)

7517388

$3.79

38

LEVER,SHIFT,325 5 SPD,BLK

5631054-067

Unavailable

39

PAD,SHIFT PEDAL

5411364

$23.99

40

SCREW(10)

7512225

$3.99

41

ENGINE,ES32PLE03 The Short Block assembly contains a crankcase Asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty consideration.

3086945

Unavailable

42

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

43

CLIP-T,DUAL 3/16" LINE

7080816

$5.43

44

DESC NOT_AVAILABLE

8450040-60

Unavailable
