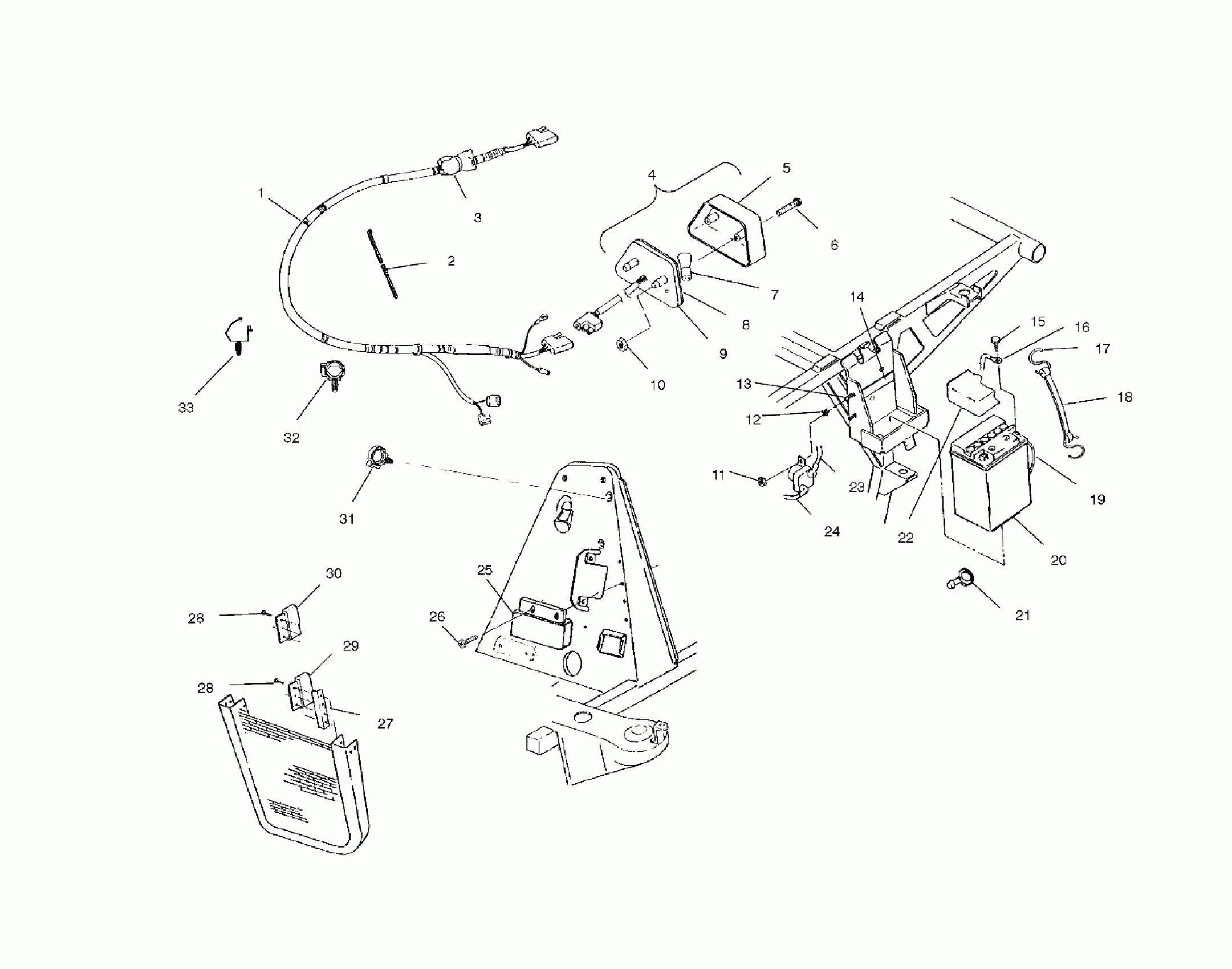

Polaris XPEDITION 325 - A01CK32AA ELECTRICAL/TAILLIGHT - A01CK32AA (4964086408B013) Diagram

#

Description
Price

1

HARNESS-MAIN,WIRE,XPD 325

2460866

$297.62

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

KIT-CIRCUT BREAKER,FAN

2201795

$72.84

4

TAIL LIGHT NEGATIVE POLAR,ASM. (Incl. 5-10)

2410221

$38.41

5

LENS,TAILLIGHT

4032046

$32.37

6

Screw, Taillight

4032029

$4.76

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,TAILLIGHT

4032045

$4.03

9

BACKING,TAILLIGHT

4032064

$83.33

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

11

NUT(10)

7541925

$0.79

12

WASHER(10)

7571602

$4.76

13

SCREW(10)

7512027

$1.19

14

PAD-BATTERY

5810290

$7.27

15

BOLT,BATT,KIT(SHORT)

2200361

Unavailable

16

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

17

HOOK-BATT.H/D(10)

7010032

$1.59

18

STRAP,BATTERY HOLDDOWN

5410424

$4.84

19

TUBE,BATTERY VENT

5432077

Unavailable

20

Battery

4140006

$99.99

21

CLIP,SILENCER,(10)

7670102

$2.38

22

COVER,BATTERY

5431769

$15.37

23

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

24

CABLE,SOL/STARTER

4010093

$48.56

25

SWITCH-THERMISTER,LR-60

4010249

Unavailable

26

SCREW(10)

7512017

$4.76

27

SINK,HEAT

5132214

$8.17

28

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

28

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

29

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

30

SWITCH-HUB SAFETY,LR-84

4010285

Unavailable

31

CLIP, PLASTIC(10)

4020139

$4.76

32

CLIP,ROSEBUD

4020149

$6.35

33

CLIP-ROUTING

7670109

$2.38
