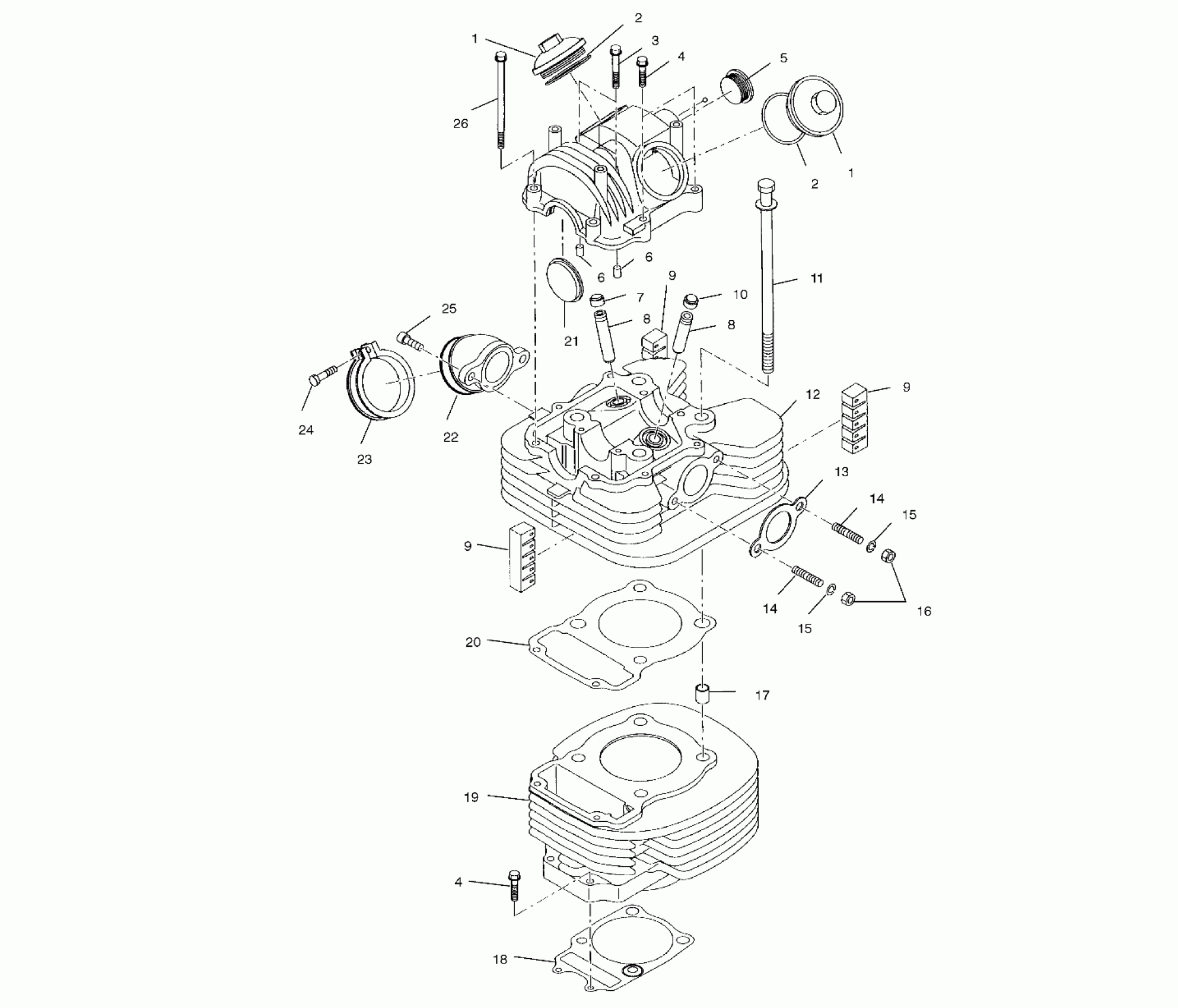

Polaris XPEDITION 325 - A01CK32AA CYLINDER - A01CK32AA (4964086408C006) Diagram

#

Description
Price

1

COVER-VALVE

3086413

Unavailable

1

COVER-VALVE

3086413

Unavailable

2

O-Ring

3086414

$29.99

2

O-Ring

3086414

$29.99

3

BOLT,FLANGE

3086412

$3.85

4

BOLT, FLANGE

3084874

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

PLUG,CYLINDER BLOCK

3086417

Unavailable

6

PIN,STRAIGHT

3086410

$3.99

6

PIN,STRAIGHT

3086410

$3.99

7

SEAL,INTAKE VALVE

3084858

$13.59

8

GUIDE,VALVE

3084994

$39.99

8

GUIDE,VALVE

3084994

$39.99

9

Fin Damper A

3084798

$31.99

9

Fin Damper A

3084798

$31.99

9

Fin Damper A

3084798

$31.99

10

SEAL,EXHAUST VALVE

3084859

$23.99

11

Bolt and Washer

3086418

$10.39

12

CYLINDER,SM,HEAD (Incl. 3,4,6-10, 12,14)

3086796

Unavailable

13

GASKET-EXHAUST

3086421

Unavailable

14

STUD,(10)

3085326

Unavailable

14

STUD,(10)

3085326

Unavailable

15

WASHER LOCK ,(10)

3080530

$3.19

15

WASHER LOCK ,(10)

3080530

$3.19

16

NUT(10)

3080285

Unavailable

17

PIN,STRAIGHT

3084838

Unavailable

18

GASKET-CYLINDER

3086407

$31.99

19

CYLINDER,UNIT

3086883

Unavailable

20

GASKET-HEAD

3086415

Unavailable

21

GASKET-CAM

3086416

Unavailable

22

Adapter

3087050

$71.99

23

BAND ASM. (Incl. 24)

3083166

$19.84

24

SCREW,(10)

3081497

$2.39

25

Bolt, Allen

3081330

$3.99

26

BOLT,FLANGE

3086419

Unavailable
