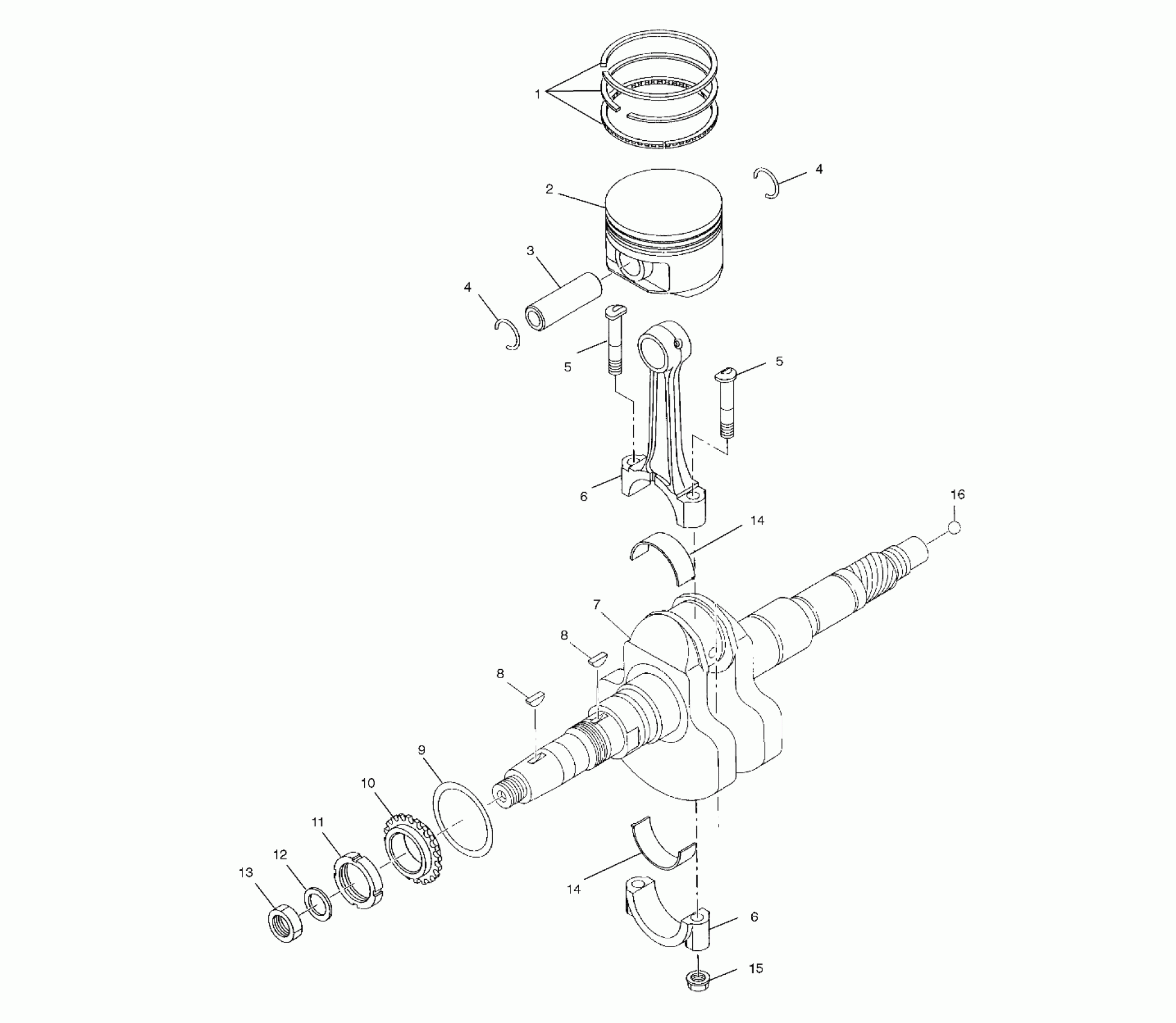

Polaris XPEDITION 325 - A01CK32AA CRANKSHAFT and PISTON - A01CK32AA (4964086408C007) Diagram

#

Description
Price

1

PISTONRING SET,,STD * (STD)

3085774

Unavailable

1

PISTONRING SET,(.25MM O/S) (0.25 O/S)

3085775

Unavailable

1

PISTONRING SET,(.50MM O/S) (0.50 O/S)

3085776

Unavailable

2

PISTON(STD) (STD)(Incl. 4)

3086800

Unavailable

2

PISTON(.25 O/S) (0.25 O/S)(Incl. 4)

3086801

$100.79

2

PISTON(.50 O/S) (0.50 O/S)(Incl. 4)

3086802

$120.94

3

PIN-PISTON

3086846

Unavailable

4

CLIP,(10)

3084167

$6.39

4

CLIP,(10)

3084167

$6.39

5

Bolt

3086425

Unavailable

5

Bolt

3086425

Unavailable

6

CONNECTING ROD ASM. (Incl. 5,15)

3087107

Unavailable

6

CONNECTING ROD ASM. (Incl. 5,15)

3087107

Unavailable

7

CRANKSHAFT (Incl. 16)

3087075

$549.98

8

KEY, WOODRUFF,(10)

3240168

$19.99

8

KEY, WOODRUFF,(10)

3240168

$19.99

9

SPACER,0.4

3086888

$4.55

9

SPACER,0.6

3086889

$4.55

9

SPACER,0.8

3086890

Unavailable

9

SPACER,1.0

3086891

$4.39

10

Sprocket 1

3086492

$27.99

11

NUT,SLIT

3085528

$35.99

12

WASHER Substituted by 3086767

3083904

Unavailable

13

LOCKNUT

3083905

Unavailable

14

BEARING (STD)

3086427

Unavailable

14

BEARING-.05MM (0.05 U/S)

3086798

Unavailable

14

BEARING-.25MM (0.25 U/S)

3086799

$15.99

14

BEARING (STD)

3086427

Unavailable

14

BEARING-.05MM (0.05 U/S)

3086798

Unavailable

14

BEARING-.25MM (0.25 U/S)

3086799

$15.99

15

Nut

3086426

$4.79

16

BALL, STEEL

3085024

$5.59
