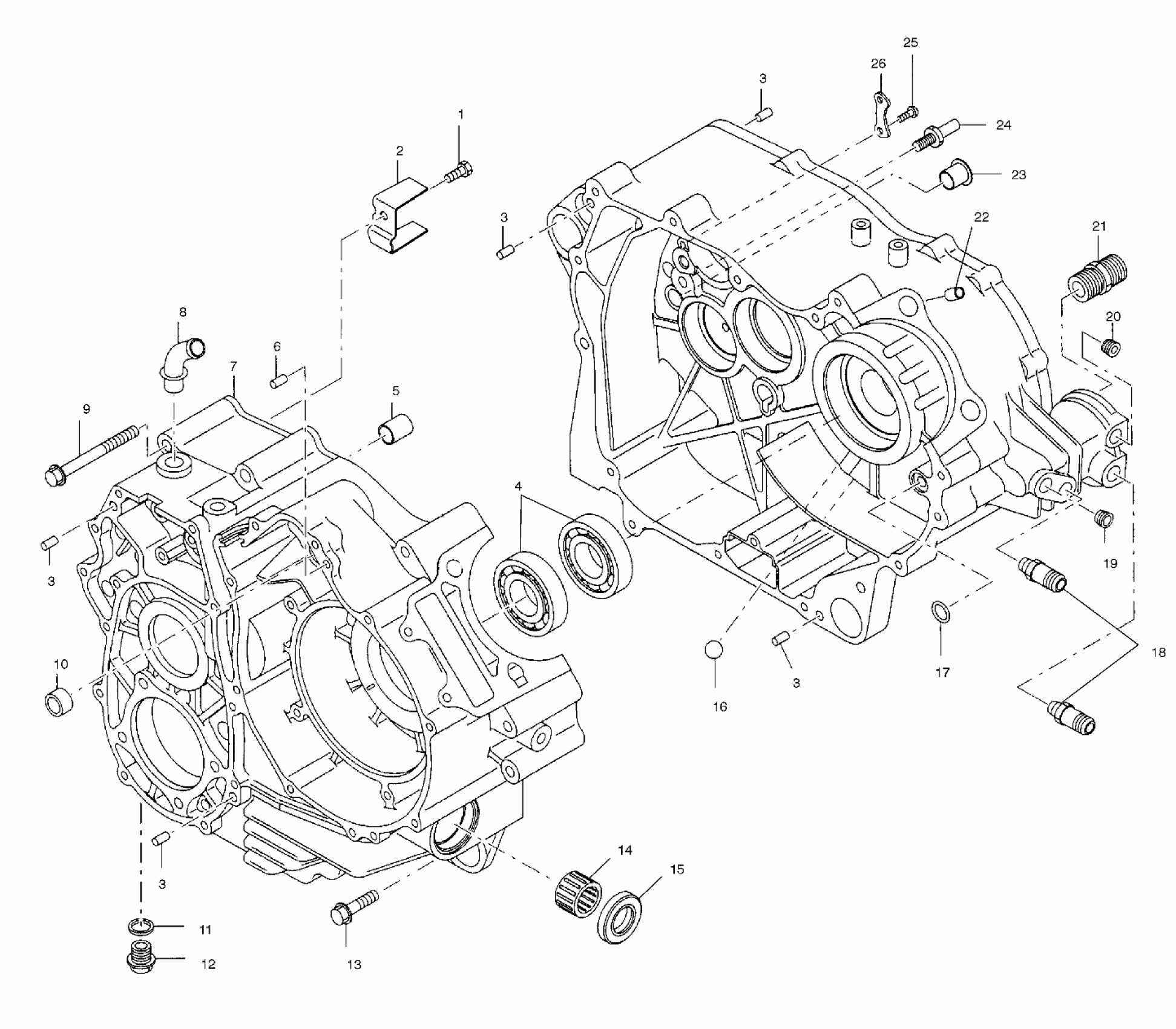

Polaris XPEDITION 325 - A01CK32AA CRANKCASE - A01CK32AA (4964086408C005) Diagram

#

Description
Price

1

BOLT-FLANGE(10)

3087035

$3.85

2

PLATE,PARTITION

3086881

$11.59

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

4

BEARING,BALL

3085815

$43.99

5

BUSHING

3086193

$5.51

6

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

ASM,CRANKCASE (Incl. 3-10,13-16,19,20,23-26)

3086879

$919.99

8

Pipe

3085850

$51.99

9

BOLT,FLANGE

3084841

Unavailable

10

BUSHING, STARTER

3083669

Unavailable

11

GASKET

3082956

$4.84

12

PLUG Substituted by 3086749

3083453

Unavailable

13

Bolt, Flange

3085295

$2.63

14

BEARING,NEEDLE

3086191

Unavailable

15

SEAL,OIL

3086192

Unavailable

16

BALL,STEEL

3086194

$1.83

17

O-Ring

3086880

$1.19

18

FITTING-37 DEG-9/16-18,1/4 JIS

5133073

$25.19

19

Plug

3086397

Unavailable

20

PLUG, BLIND

3084862

Unavailable

21

UNION,OIL PUMP

3084849

Unavailable

22

PIN,STRAIGHT

3084838

Unavailable

23

Bush

3086197

$9.83

24

PIN STOPPER

3086195

$11.43

25

Screw

3081890

$0.79

26

PLATE,BEARING

3086196

$16.47
