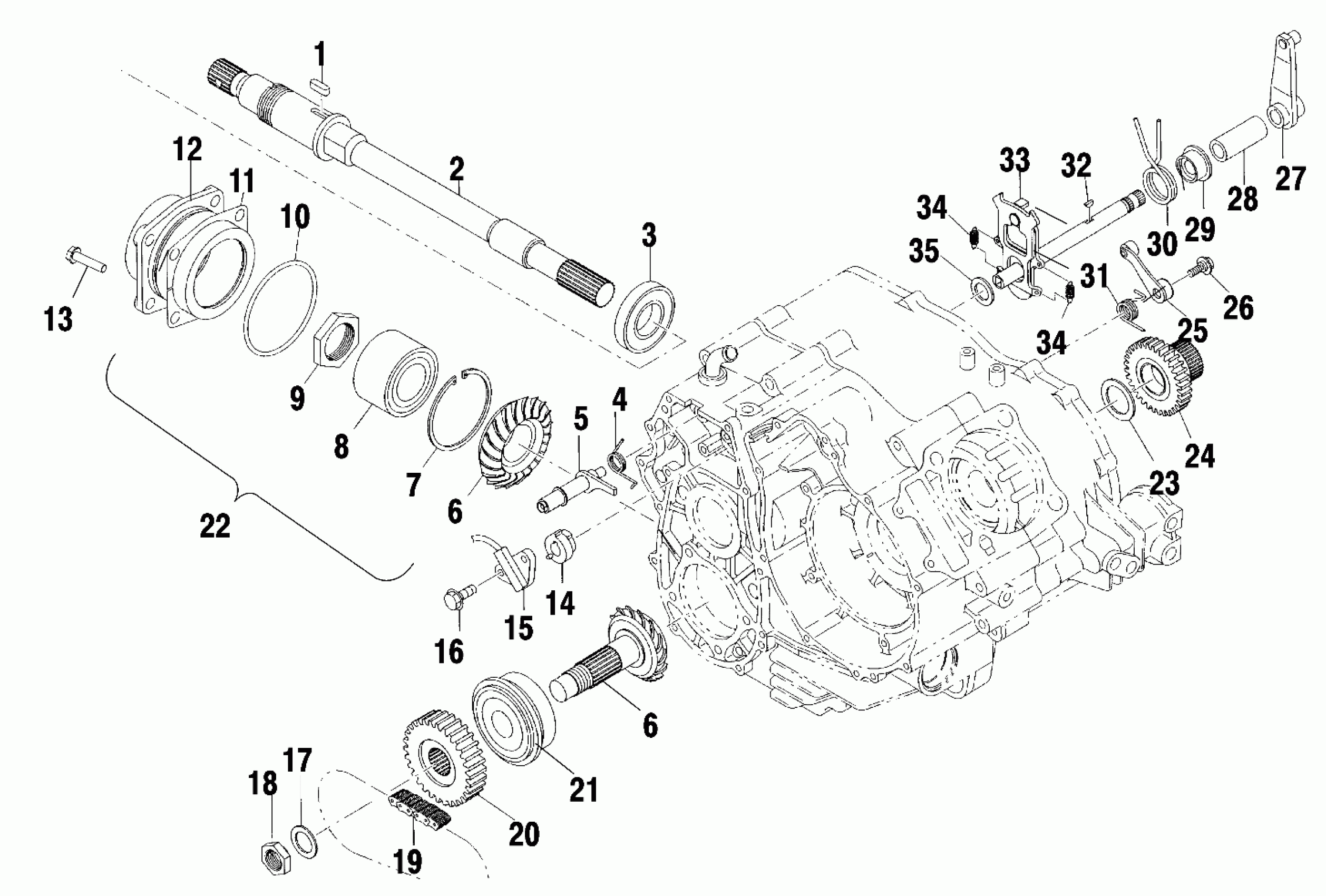

Polaris XPEDITION 325 - A01CK32AA CLUTCH - A01CK32AA (4964086408D004) Diagram

#

Description
Price

1

Key

3086330

Unavailable

2

SHAFT-OUTPUT

3086324

$287.99

3

SEAL,OIL

3086327

Unavailable

4

SPRING-REVERSE ARM

3086306

Unavailable

5

REVERSE ARM,ASM

3086919

$91.19

6

Bevel and Gear Set

3086507

Unavailable

6

Bevel and Gear Set

3086507

Unavailable

7

RING,SNAP

3086328

$14.23

8

BEARING-BALL

3086329

$96.79

9

NUT,LOCK

3086326

$31.99

10

O-Ring

3086331

$6.63

11

SHIM (.15)

3086289

$2.63

11

SHIM (.2)

3086290

$2.63

11

SHIM (.25)

3086291

$2.78

11

SHIM (.3)

3086292

$2.46

11

SHIM (.5)

3086293

$2.47

11

SHIM (.175)

3086294

$2.47

11

SHIM (.225)

3086295

$2.47

11

SHIM (.275)

3086296

$2.47

12

HOLDER,BEARING

3086923

$111.99

13

BOLT,FLANGE

3086332

$1.83

14

REVERSE CAM,ASM

3086917

Unavailable

15

SWITCH,POSITION

3086920

Unavailable

16

BOLT, FLANGE(10)

3084566

$3.19

17

WASHER-LOCK

3086314

$4.23

18

NUT,LOCK

3086310

$6.23

19

Chain

3086304

Unavailable

20

SPROCKET-DRIVEN

3086303

$78.39

21

BEARING-BALL

3086321

Unavailable

22

PINION AND SHAFT,ASM Substituted by 3086318 (Incl. 1-3,6-9,12,21)

3086922

Unavailable

23

Washer

3086380

Unavailable

24

GEAR,PRIMARY

3086918

$167.19

25

ARM,STOPPER

3086302

$18.23

26

BOLT,STOPPER ARM

3086311

$12.39

27

ARM,RELEASE

3086301

Unavailable

28

Spacer

3086317

$12.70

29

Spacer

3086316

Unavailable

30

SPRING-RETURN

3086307

Unavailable

31

SPRING-STOPPER ARM

3086308

$9.91

32

KEY,WOODRUFF

3086312

Unavailable

33

SHIFT SHAFT,ASM.

3086298

Unavailable

34

SPRING-SHIFT

3086309

Unavailable

34

SPRING-SHIFT

3086309

Unavailable

35

Spacer

3086315

Unavailable
