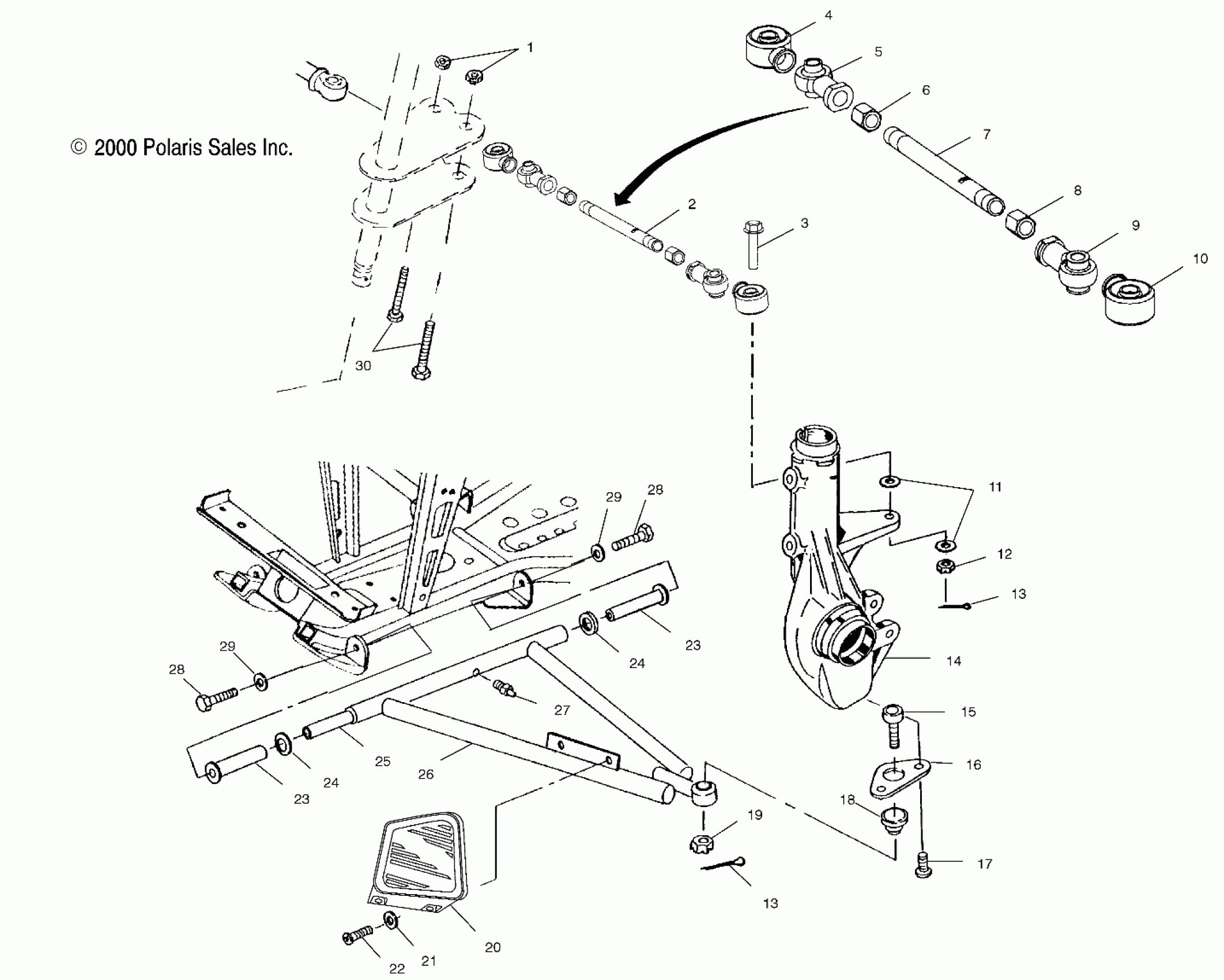

Polaris XPEDITION 325 - A01CK32AA A-ARM/STRUT MOUNTING - A01CK32AA (4964086408B010) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

TIE,ROD,1/2-20X13.4,ASM. (Incl. 4-9)

1820805

$133.56

3

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

$5.56

4

SEAL,BOOT,ROD END,1/2 IN

5411291

$11.32

5

ROD END,RH

7061034

$60.70

6

NUT-JAM(10)

7542711

$2.38

7

ROD,TIE

5020926

$44.51

8

NUT,LH,JAM(10)

7547028

$2.38

9

ROD,END,10MM,1/2-20LH,42 DEG

7061054

$56.65

10

BOOT,SEAL,ROD END,10MM

5411920

$11.32

11

Washer

7556099

$1.59

12

NUT, CASTLE(10)

7546904

$4.76

13

PIN COTTER(10)

7661203

$1.19

13

PIN COTTER(10)

7661203

$1.19

14

Asm., Hubstrut (See Front Strut Pg. B3, Ref. 16)

----

Unavailable

15

BALL-JOINT,52 DEG,ATV

7080927

$28.32

16

BRACKET-BALL JOINT

5211121

$32.37

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

18

Boot, Rubber

5410548

$4.84

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

SHIELD-CV JOINT,RH,BLK

5431149-070

$24.27

20

SHIELD-CV JOINT,LH,BLK

5431150-070

$24.27

21

WASHER, FLAT(10)

7558201

$5.79

22

SCREW(10)

7512084

$1.19

23

BUSHING,A ARM,LONG

5433066

$5.56

23

BUSHING,A ARM,LONG

5433066

$5.56

24

BUSHING,A-ARM SPACER(10)

5020677

$10.32

24

BUSHING,A-ARM SPACER(10)

5020677

$10.32

25

Shaft, A-Arm

5020681

$33.24

26

A-FRAME,KIT,LH (1541444)

2201609

$161.49

26

A-FRAME,KIT,RH (1541445)

2201610

Unavailable

27

ZERK,FITTING,THREADED(10)

7080433

$1.19

28

SCREW(10)

7512492

$1.19

28

SCREW(10)

7512492

$1.19

29

WASHER(10)

7552603

$0.79

29

WASHER(10)

7552603

$0.79

30

BOLT(10)

7515415

$1.19
