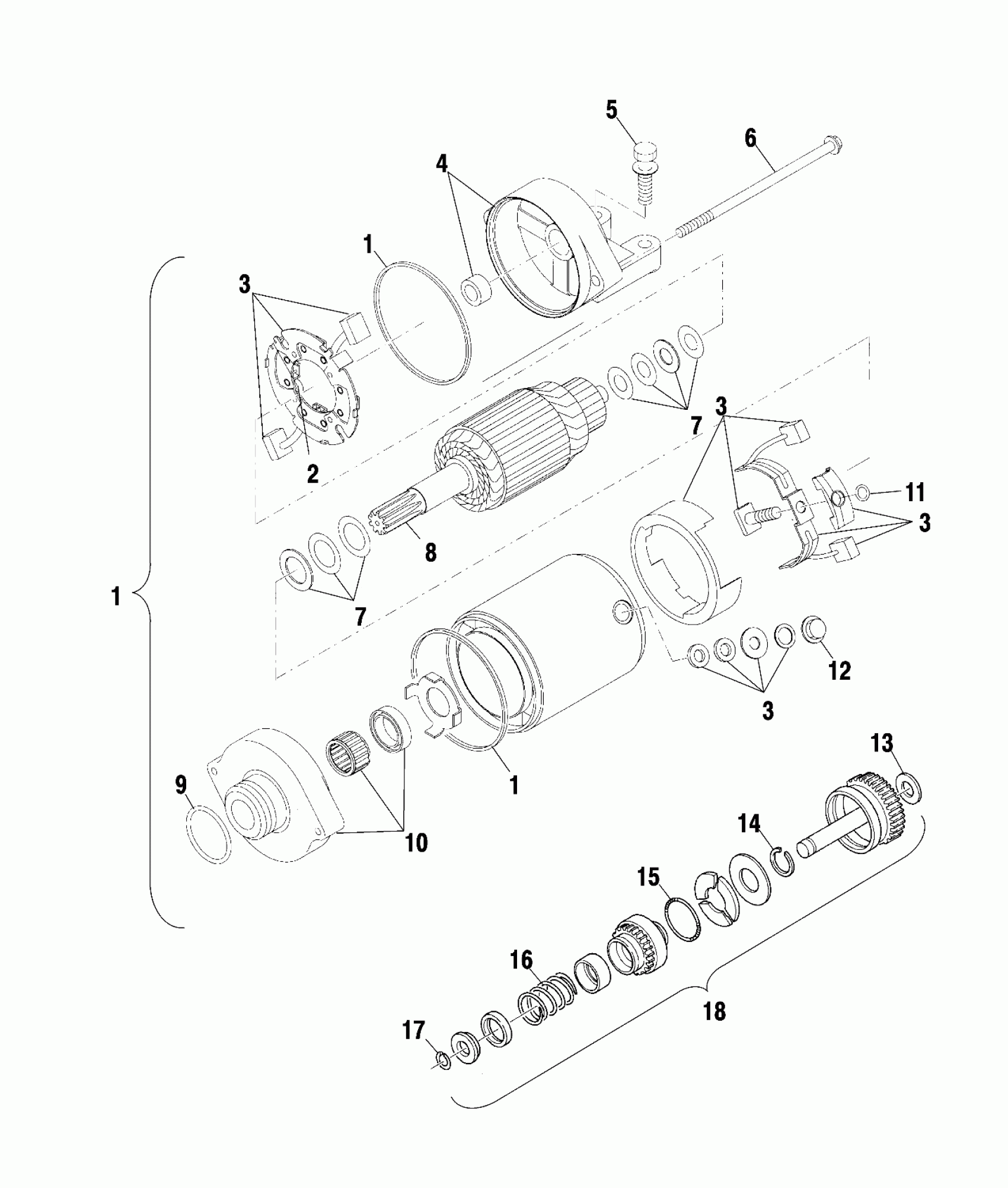

Polaris XPEDITION 325 - A00CK32AA STARTING MOTOR - A00CK32AA (4954895489D005) Diagram

#

Description
Price

1

RING, RUBBER

3084405

Unavailable

1

STARTER MOTOR ASM. (Incl. 1-4,6-12)

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

STARTER MOTOR ASM. (Incl. 1-4,6-12)

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

STARTER MOTOR ASM. (Incl. 1-4,6-12)

3086240

Unavailable

2

Spring, Brush

3240111

$1.38

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.46

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.46

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.46

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.46

4

DESC NOT_AVAILABLE

3086245

Unavailable

5

BOLT&WASHER

3083730

$4.76

6

BOLT,ASM.

3086241

Unavailable

7

Washer Set

3084982

Unavailable

7

Washer Set

3084982

Unavailable

8

ARMATURE ASM

3086244

Unavailable

9

O-Ring

3240114

$6.99

10

BRACKET,FRONT ASM (Incl. 9)

3086243

$102.38

11

O-RING

3084408

Unavailable

12

NUT, FLANGE(10)

3083649

$3.97

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

14

CLIP

3084412

$9.52

15

SPRING, WEIGHT

3084411

$15.56

16

SPRING, RETURN

3084410

Unavailable

17

CLIP

3084409

$7.14

18

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 13-17)

3085394

$271.10
