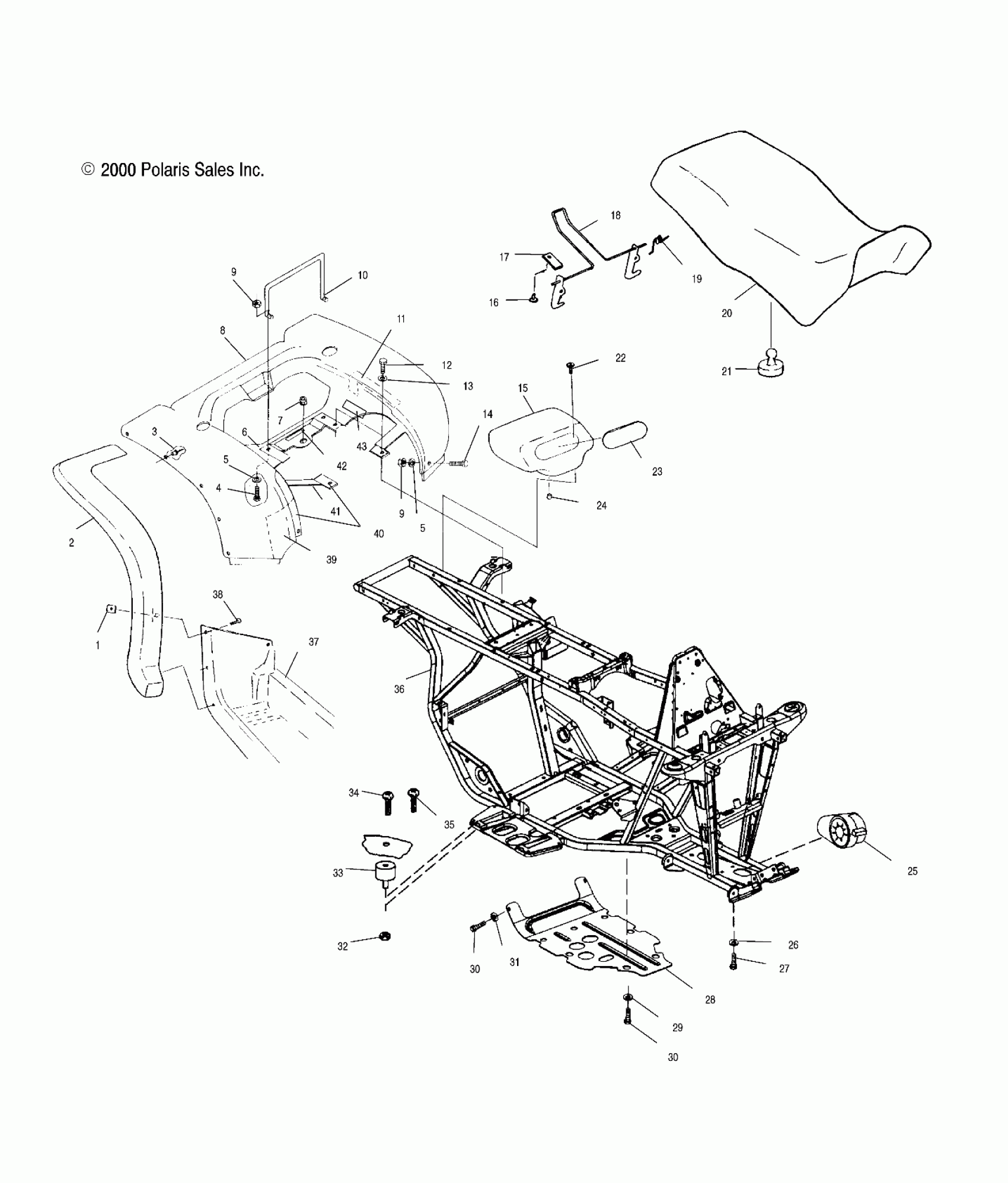

Polaris XPEDITION 325 - A00CK32AA REAR CAB and SEAT - A00CK32AA (4954895489A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670057

$1.19

2

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

2

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

3

RIVET(50)

7661645

Unavailable

4

SCREW(10)

7511930

$2.38

5

WASHER(10)

7555792

$4.76

5

WASHER(10)

7555792

$4.76

6

FOIL,REAR CAB,REAR

5811107

Unavailable

7

Grommet

5411042

$6.35

8

CAB,REAR,GEN 4,DESERT DUNE

5432117-282

Unavailable

9

NUT(10)

7541925

$0.79

9

NUT(10)

7541925

$0.79

10

RETAINER,SEAT LATCH

5224592

Unavailable

11

FOIL,TAPE,3 X 12

5811308

$12.94

12

SCREW(10)

7512242

$2.38

13

WASHER, FLAT(10)

7555859

$1.19

14

SCREW(10) Substituted by 7511989

7512085

Unavailable

15

TOOLBOX

5431786

$53.17

16

BLIND RIVET(50)

7621403

$1.19

17

BRACKET,LEVER RETAINER

5211033

$34.99

18

LATCH,SEAT

1040387

$48.56

19

SPRING, LATCH

7041370

$9.52

20

COVER,SEAT,BLK.

2681747-070

$149.75

20

SEAT,BLK

2682441-070

$445.22

20

FOIL,SEATBASE,LG.

5811104

Unavailable

20

FOIL,SEATBASE,SM.

5811105

$9.84

21

Bumper, Rubber

5410414

$3.17

22

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

23

COVER, TOOLBOX

5431787

Unavailable

24

CAP,DRAIN

5410896

$5.65

25

Asm., Front Gearcase (See Front Housing Pg. C4 for Details)

----

Unavailable

26

WASHER(10)

7552603

$0.79

27

SCREW(10)

7512492

$1.19

28

GUARD-ROCK

5433435

Unavailable

29

WASHER-SKID PLATE

7556065

$4.76

30

SCREW,(10)

7517386

$1.19

30

SCREW,(10)

7517386

$1.19

31

WASHER(10)

7558301

$1.19

32

NUT-LOCK(10)

7542122

$1.19

33

MOUNT,RUBBER

5411548

$28.32

34

SCREW(10)

7515111

$4.94

35

BOLT(10)

7512297

$5.56

36

MAINFRAME,5 SPD,325,BLK

1013119-067

Unavailable

37

FOOTWELL-LH,NY,MAN,BLK

5433391-070

$196.83

37

FOOTWELL-RH,NY,MAN,BLK

5433392-070

Unavailable

38

BOLT(10)

7512232

$1.19

39

FOIL FOAM

5811111

Unavailable

40

FOIL,FR,REAR CAB

5811106

Unavailable

41

FOIL-FOAM,(6X1)

5811087

Unavailable

42

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

43

DECAL,CARB.INFO.

7073761

Unavailable
