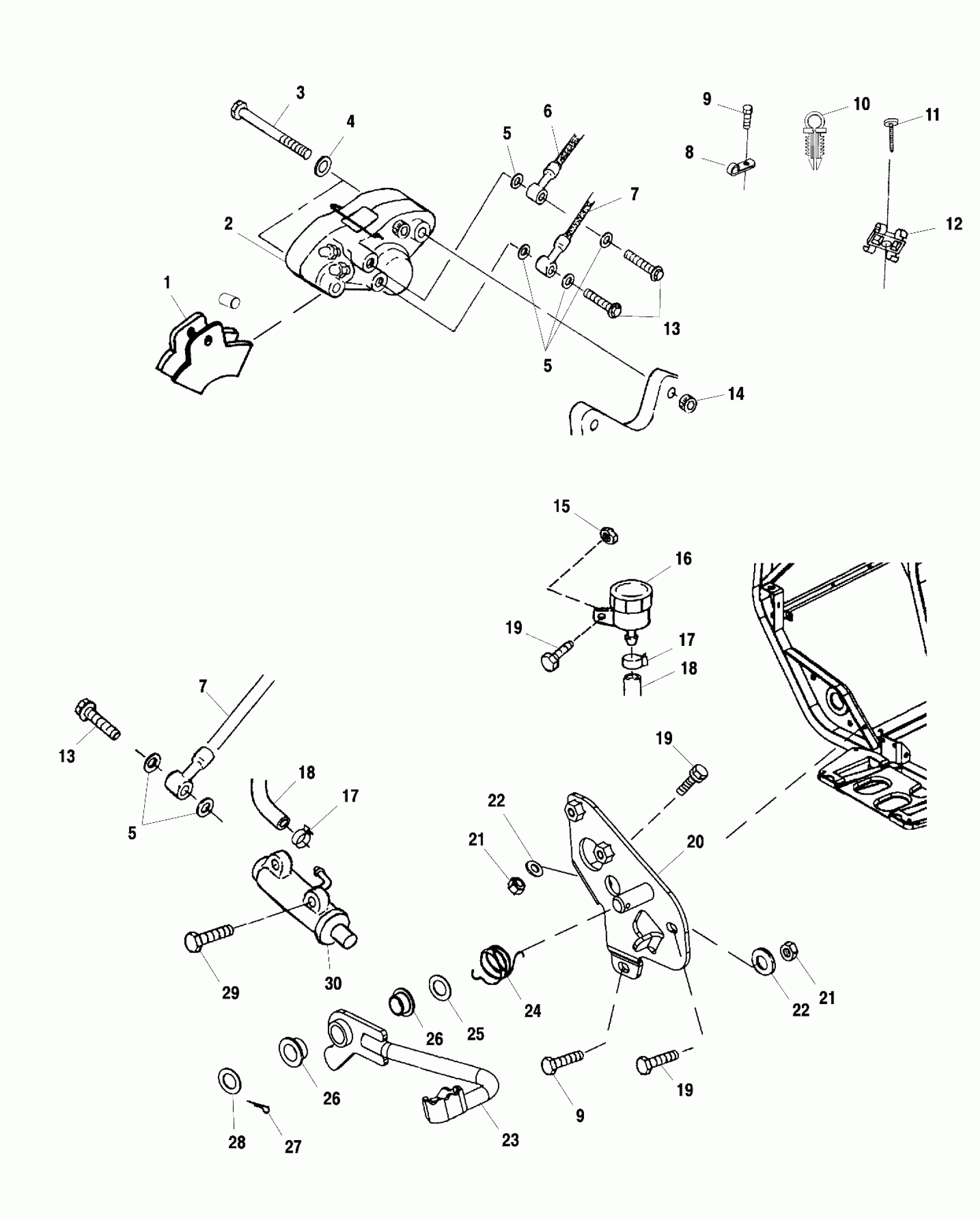

Polaris XPEDITION 325 - A00CK32AA REAR BRAKE - A00CK32AA (4954895489C001) Diagram

#

Description
Price

1

Pin

1930860

Unavailable

1

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

2201189

$31.75

1

SPACER,PAD

1910339

Unavailable

2

Kit, Bleeder Replacement

2201428

$27.99

2

PISTON, CALIPER, DH2P, REAR

2201467

$89.03

2

Kit, Caliper Seal

2201385

$64.75

2

CALIPER ASM.BRAKE,DH2P

1910367

$250.96

3

SCREW CAP(10)

7515406

$7.19

4

WASHER(10)

7555806

$1.49

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

LINE-BRAKE,FRT HAND,MAST CYL

1910286

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

9

SCREW,(10)

7517386

$1.49

9

SCREW,(10)

7517386

$1.49

10

CLIP,BRAKELINE,(.250 ID)

7080762

Unavailable

11

SCREW(10)

7512084

$1.49

12

CLIP,RETAINING,DUAL 3/16" LINE

7670113

Unavailable

13

BOLT,BANJO,BRAKE

1930674

Unavailable

13

BOLT,BANJO,BRAKE

1930674

Unavailable

14

NUT LOCK(10)

7542403

$3.99

15

NUT(10)

7542153

$1.59

16

RESERVOIR ASM,R.BRAKE

1930854

$35.99

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

HOSE-RESERVOIR,HB

1910331

$4.95

18

HOSE-RESERVOIR,HB

1910331

$4.95

19

BOLT(10)

7512240

$3.99

19

BOLT(10)

7512240

$3.99

19

BOLT(10)

7512240

$3.99

20

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

WASHER(10)

7558301

$1.49

22

WASHER(10)

7558301

$1.49

23

BRAKE ROD,HB,5-SPEED,BLK

1012991-067

$51.99

24

SPRING-TORSION,BRAKE

7041750

$8.79

25

WASHER(10)

7555919

$4.99

26

BUSHING-PEDAL PIVOT

5433189

$3.99

26

BUSHING-PEDAL PIVOT

5433189

$3.99

27

COTTER PIN(10)

7661401

$1.49

28

WASHER,SPRING

7556090

$2.63

29

SCREW(10)

7515158

$4.79

30

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01
