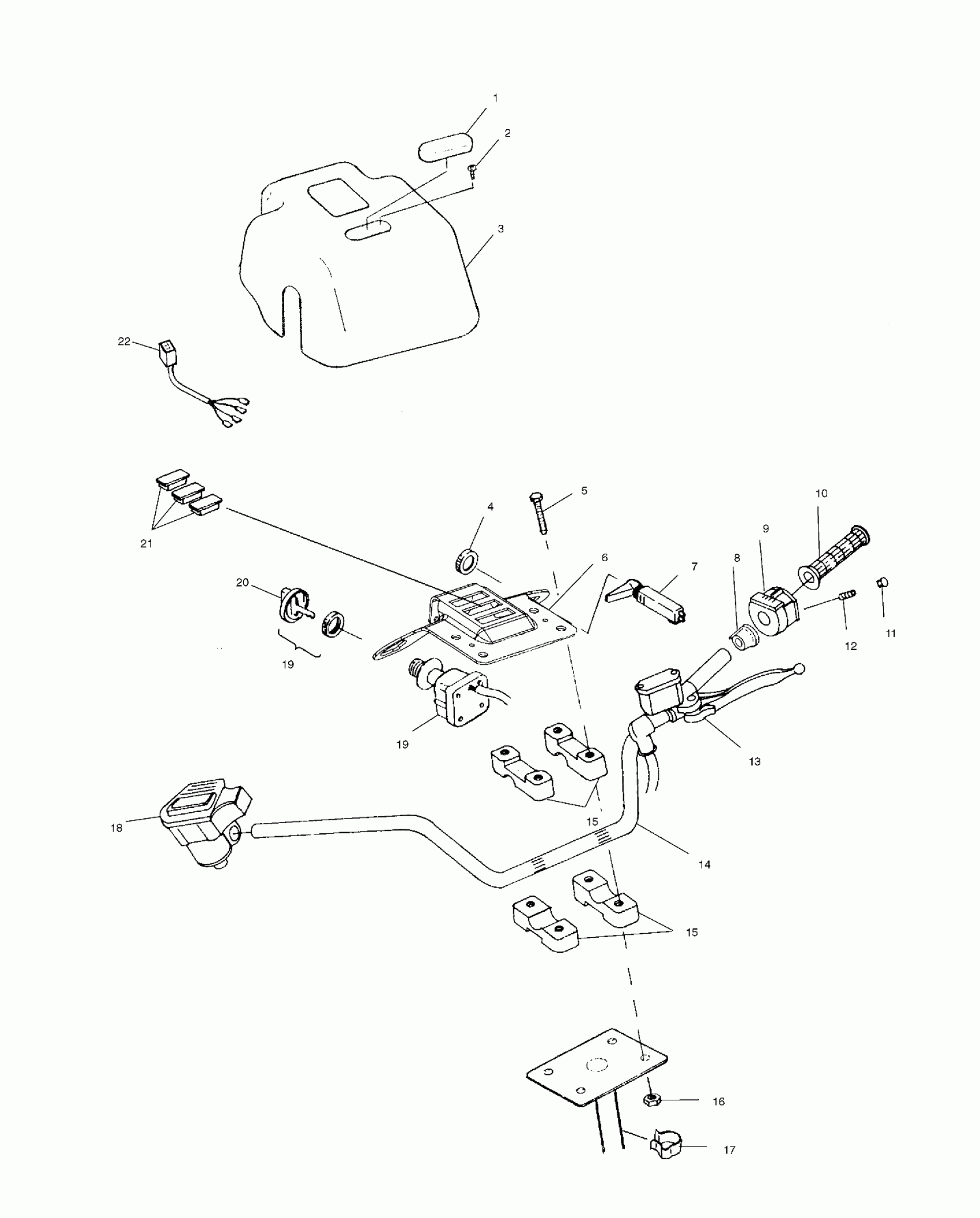

Polaris XPEDITION 325 - A00CK32AA HANDLEBAR and HEADLIGHT POD - A00CK32AA (4954895489B011) Diagram

#

Description
Price

1

COVER-LOGO, BLK

5432247-070

Unavailable

2

SCREW,(10)

7512024

$4.79

3

PANEL,INST.,BLK

5432246-070

Unavailable

4

Nut

7080229

$19.99

5

Screw

7517216

Unavailable

6

BRKT,INST.PANEL,BLK

5241397-067

$24.79

7

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

8

SPACER,SWITCH,LH

5432926

$2.63

9

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

10

GRIP, HANDLEBAR

5431030

$24.27

11

PLUG,HOLE(10)

5432952

$5.59

12

SCREW,SET

7517625

$4.79

13

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B9 for details)

-------

Unavailable

14

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

15

BLOCK,H'BAR,(300)

5630629

$11.59

15

BLOCK,H'BAR,(300)

5630629

$11.59

16

NUT-LOCK(10)

7542122

$1.49

17

CLIP,CABLE RETAIN,(10)

7080631

$6.29

18

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B8, Ref. 5)

-------

Unavailable

19

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

19

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

19

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

19

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

19

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

19

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

20

KEY SWITCH KEY COVER

5433534

$12.35

21

INDIC"HOT TEMPERATURE"

4040053

$31.99

21

INDIC"NEUT./REV."

4040054

$31.99

21

DOOR-COMPARTMENT [No Longer Available]

5430467

Unavailable

22

HARNESS-HEADLIGHT POD

2460728

$13.19
