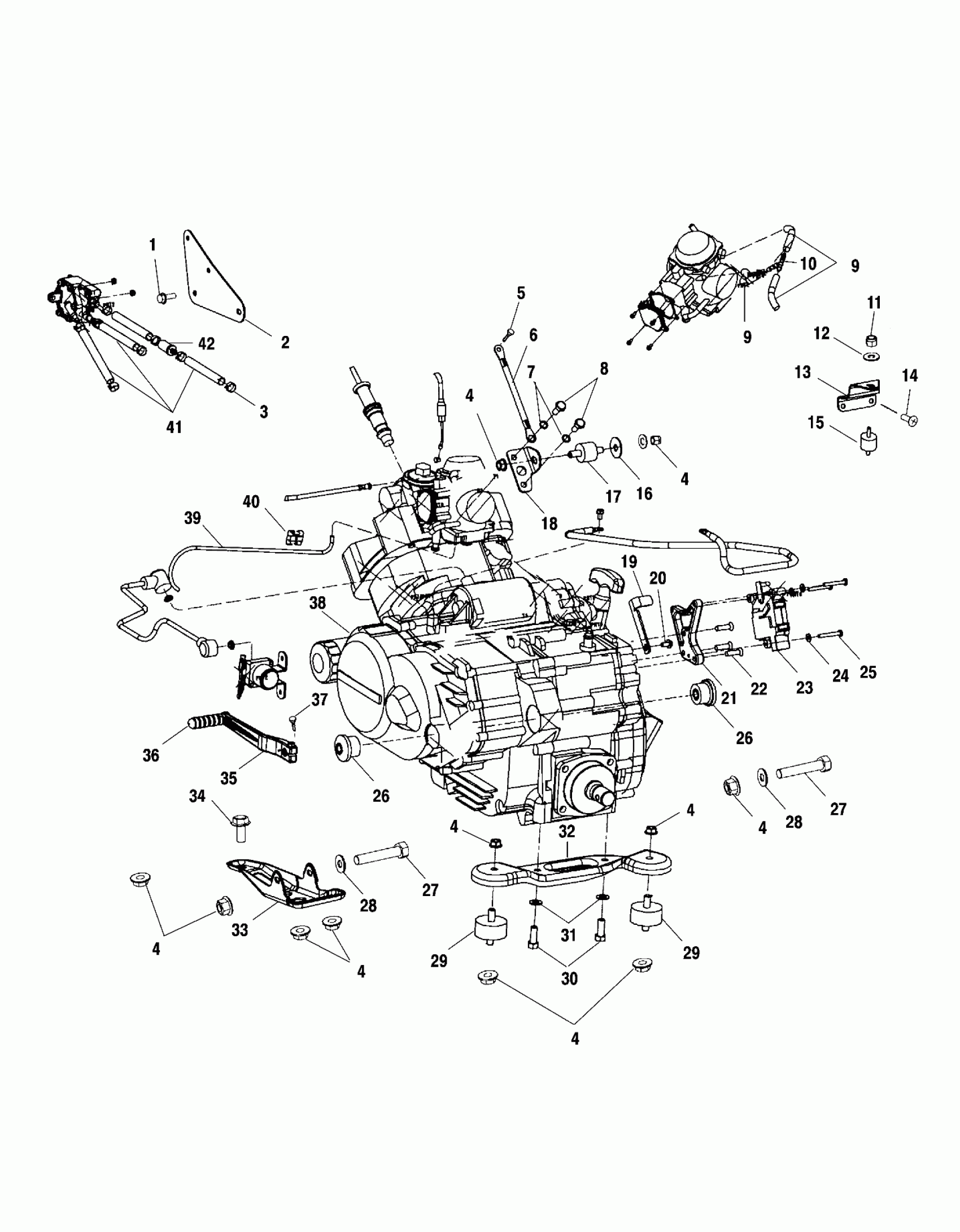

Polaris XPEDITION 325 - A00CK32AA ENGINE MOUNTING - A00CK32AA (4954895489A012) Diagram

#

Description
Price

1

SCREW,10-24X5/8

7517756

$1.19

2

STRAP-FUEL PUMP,MTG,BLK

5243829-067

Unavailable

3

HOSE CLAMP, RED

7080003

$1.19

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

4

NUT

7547108

$4.76

5

SCREW,(10)

7517386

$1.19

6

CABLE,GND-ENGINE

4010132

Unavailable

7

LOCK WASHER(10)

7552901

$1.19

8

BOLT(10)

7512315

$4.76

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FITTING, TEE

7052075

$9.52

11

NUT-LOCK(10)

7542122

$1.19

12

WASHER(10)

7558301

$1.19

13

BRACKET-CARB MOUNT,BLK

5244058-067

Unavailable

14

SCREW & WASHER(10)

3084205

$3.97

15

MOUNT,CARB.

3110050

$12.99

16

WASHER(10)

7555823

$3.97

17

MOUNT-RUBBER,TOP,45 DURO (If built before 8/21/99)

3021108

$15.56

17

MNT,ENG.,3/8-16X.66,3-TAB (If built after 8/21/99)

3021180

$18.10

18

MNT,ENGINE,TOP,REAR,MAN,BLK (If built before 8/26/99)

5244075-067

Unavailable

18

MOUNT,ENGINE,TOP MAN,BLK (If built after 8/26/99)

5244517-067

$7.38

19

LEVER-REVERSE,BLK

5243586-067

Unavailable

20

SCREW

7517653

$5.56

21

MOUNT,ACTUATOR,REV,MACH

5132141

$24.60

22

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.76

23

ACTUATOR-POLLAK,18-201-01

4010265

Unavailable

24

WSHR-.194X.475X.049 ZTB

7555746

$0.79

25

SCREW(10)

7510504

$6.76

26

MOUNT,RUBBER,ENGINE,MAN

5411927

Unavailable

26

MOUNT,RUBBER,ENGINE,MAN

5411927

Unavailable

27

SCREW CAP(10)

7515406

$7.14

27

SCREW CAP(10)

7515406

$7.14

28

WASHER(10)

7555806

$0.79

28

WASHER(10)

7555806

$0.79

29

MOUNT,RUBBER,REAR Substituted by 3110068

3110045

$44.51

29

MOUNT,RUBBER,REAR Substituted by 3110068

3110045

$44.51

30

SCREW(10)

7512492

$1.19

31

WASHER(10)

7552603

$0.79

32

MOUNT,5 SPEED LWR,REAR,BLK.

5242984-067

Unavailable

33

MOUNT-ENGINE LOWER,MANUAL,BLK

5242905-067

$11.51

34

SCREW,(10)

7517388

$3.79

35

LEVER,SHIFT,325 5 SPD,BLK

5631054-067

Unavailable

36

PAD,SHIFT PEDAL

5411364

$28.32

37

SCREW(10)

7512225

$3.97

38

ENGINE,ES32PLE03 (ES32 PLE 03) NOTE: The Short Block assembly contains a crankcase Asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

3086945

Unavailable

39

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

40

CLIP-T,DUAL 3/16" LINE

7080816

$5.40

41

DESC NOT_AVAILABLE

8450040-60

Unavailable

42

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
