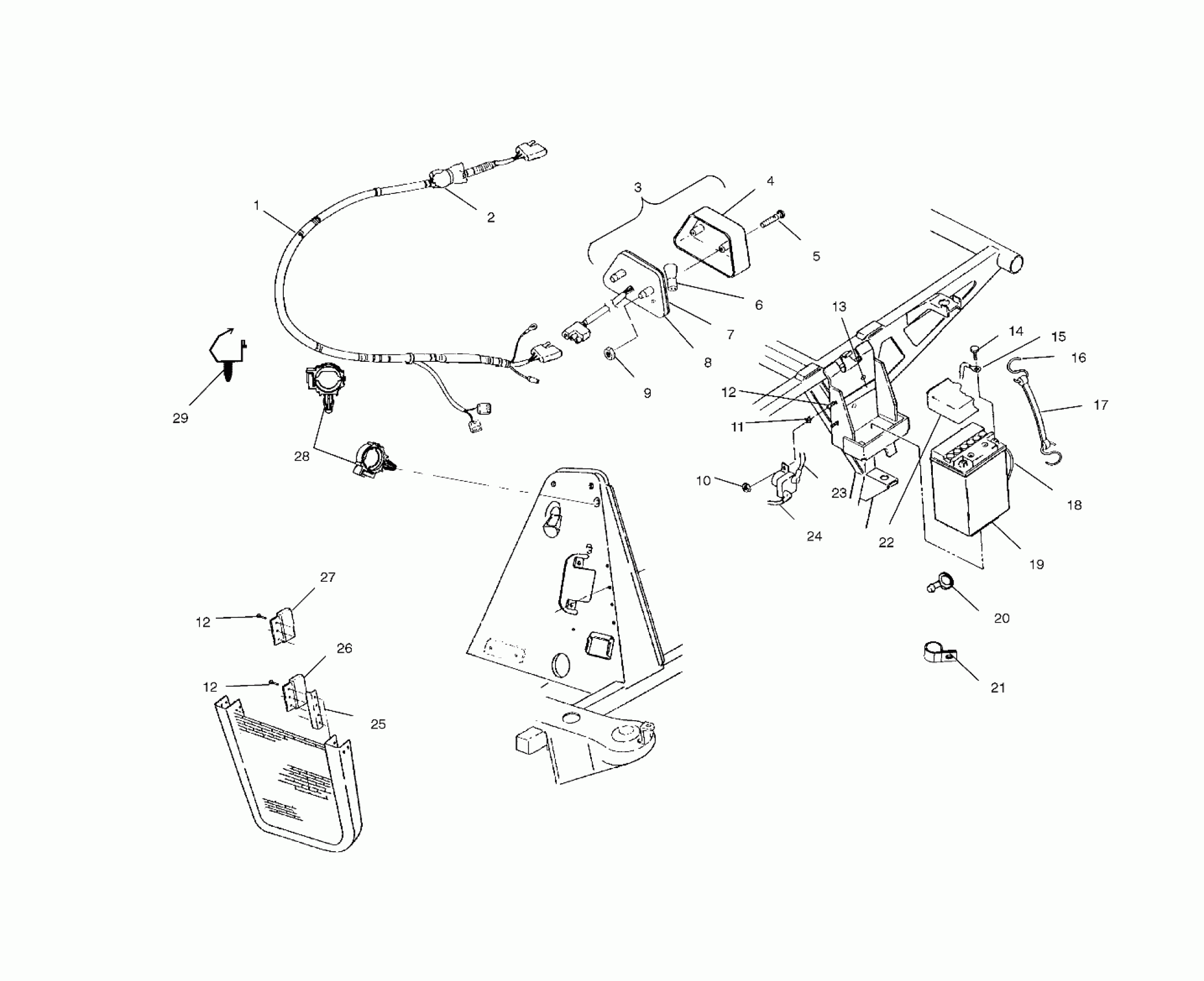

Polaris XPEDITION 325 - A00CK32AA ELECTRICAL/TAILLIGHT - A00CK32AA (4954895489B014) Diagram

#

Description
Price

1

HARNESS-MAINWIRE,325 XPED (If built before 1/01/00)

2460798

Unavailable

1

HARNESS,MAINWIRE,325 XPD (If built after 1/01/00)

2460849

Unavailable

2

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT(10)

7541925

$1.49

11

WASHER(10)

7571602

$4.79

12

SCREW(10)

7512027

$1.49

12

SCREW(10)

7512027

$1.49

12

SCREW(10)

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

BOLT,BATT,KIT(SHORT)

2200361

$3.99

15

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

16

HOOK-BATT.H/D(10)

7010032

$1.59

17

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

18

TUBE,BATTERY VENT

5432077

Unavailable

19

Battery

4140006

$99.99

20

CLIP,SILENCER,(10)

7670102

$2.39

21

CLAMP-CABLE

7080367

$2.39

22

COVER,BATTERY

5431769

$14.39

23

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

24

CABLE,SOL/STARTER

4010093

$47.99

25

SINK,HEAT

5132214

$8.23

26

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

27

SWITCH-HUB SAFETY,LR-84

4010285

$51.99

28

CLIP,ROSEBUD

4020149

$6.39

29

CLIP-ROUTING

7670109

$2.39
