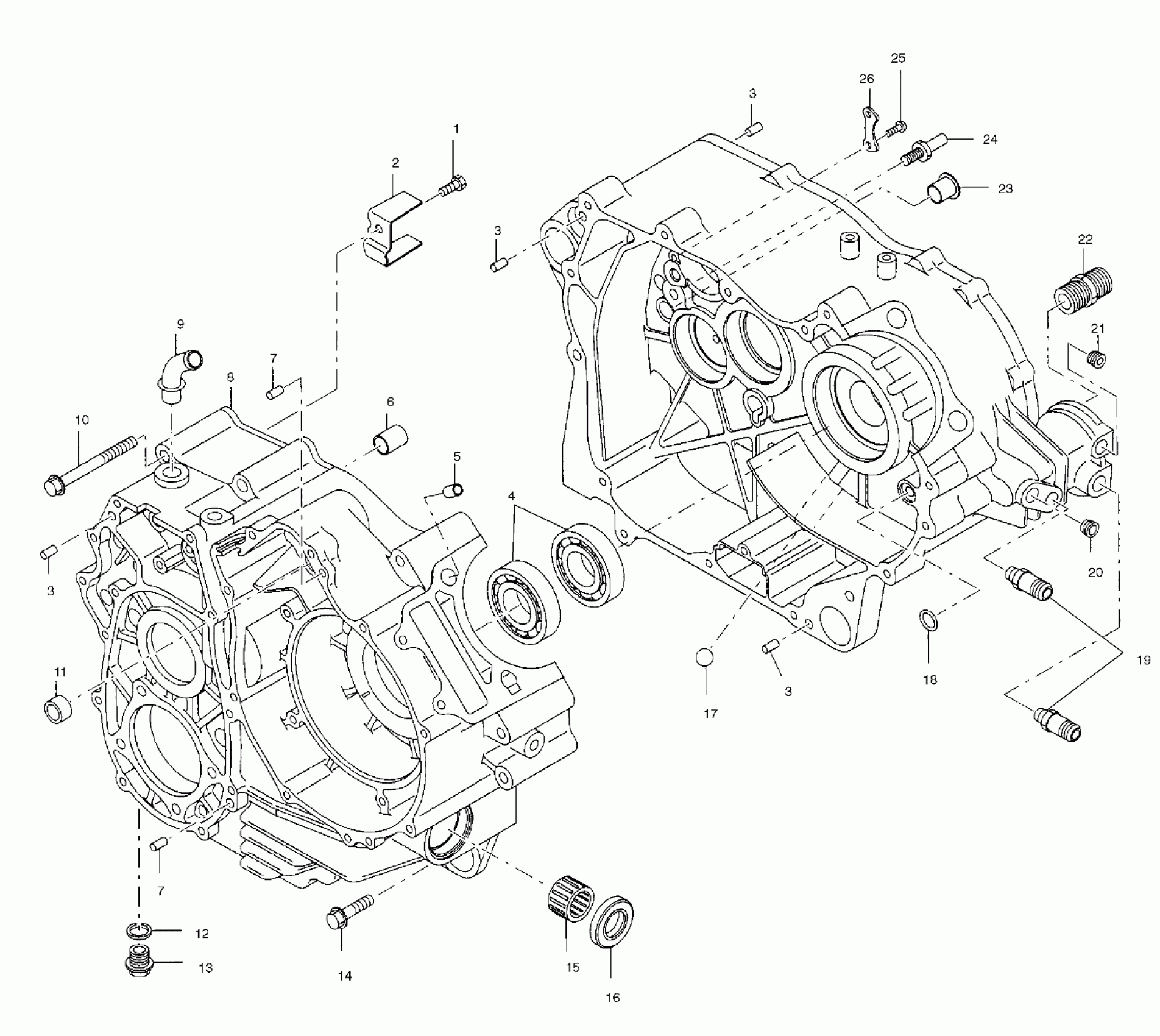

Polaris XPEDITION 325 - A00CK32AA CRANKCASE - A00CK32AA (4954895489C008) Diagram

#

Description
Price

1

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

2

PLATE,PARTITION

3086881

$11.59

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

4

BEARING,BALL

3085815

$43.99

5

PIN,STRAIGHT

3084838

Unavailable

6

BUSHING

3086193

$5.51

7

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

PIN, DOWEL Substituted by 3086838

3080103

$7.14

8

ASM,CRANKCASE (Incl. 7,6,4-14,11,10)

3086879

$919.99

9

Pipe

3085850

$51.99

10

BOLT,FLANGE

3084841

Unavailable

11

BUSHING, STARTER

3083669

Unavailable

12

GASKET

3082956

$4.84

13

PLUG Substituted by 3086749

3083453

Unavailable

14

Bolt, Flange

3085295

$2.63

15

BEARING,NEEDLE

3086191

Unavailable

16

SEAL,OIL

3086192

Unavailable

17

BALL,STEEL

3086194

$1.83

18

O-Ring

3086880

$1.19

19

UNION

3086882

$17.43

20

Plug

3086397

Unavailable

21

PLUG, BLIND

3084862

Unavailable

22

UNION,OIL PUMP

3084849

Unavailable

23

Bush

3086197

$9.83

24

PIN STOPPER

3086195

$11.43

25

Screw

3081890

$0.79

26

PLATE,BEARING

3086196

$16.47
