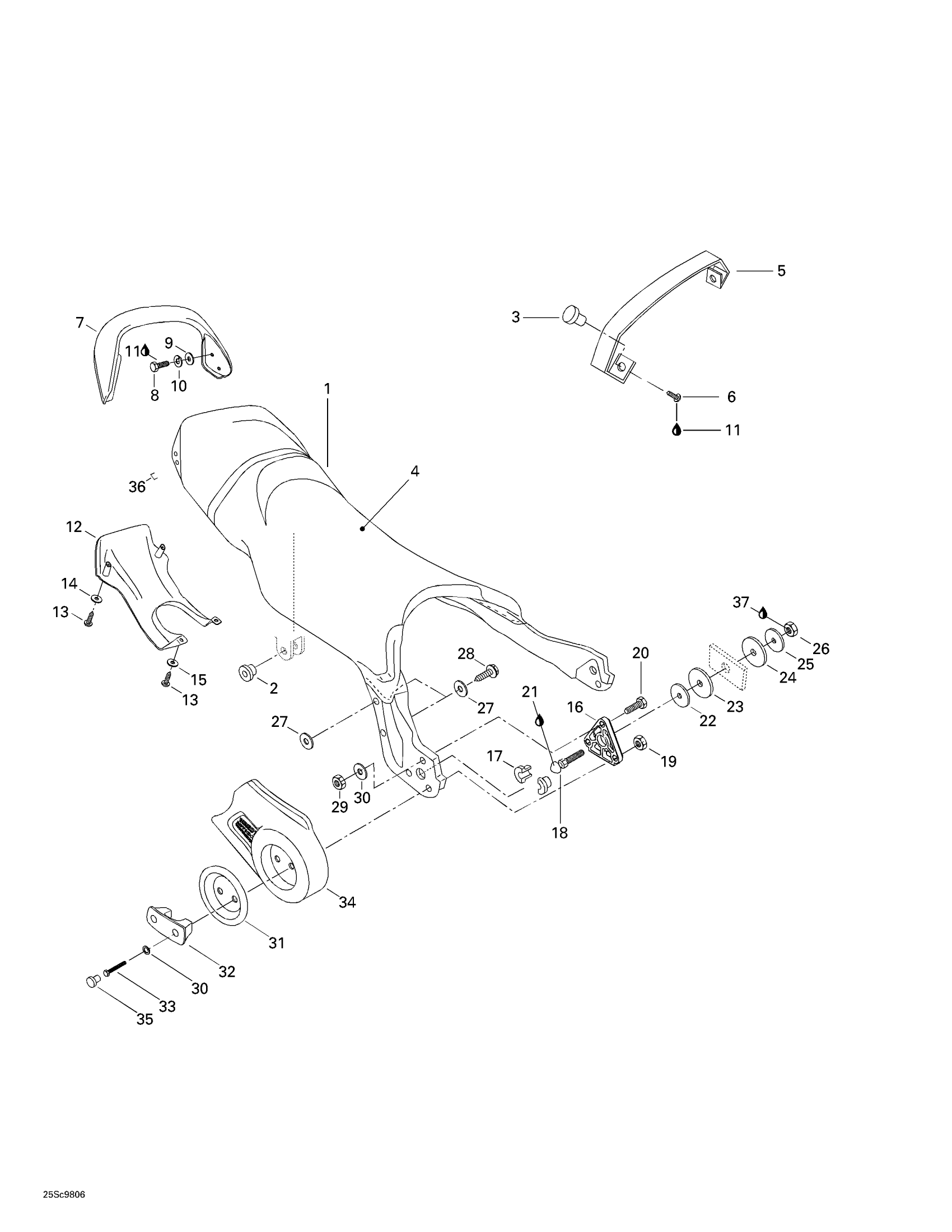

Sea-doo XP Limited, 5665/5667, 1998 09- Seat Diagram
#
Description
Price
1
Seat Ass'y | Includes 1 - 10.
269000425
Unavailable
2
Spacer 12 mm
269000427
Unavailable
3
Threaded Insert
211100035
Unavailable
4
Seat Cover & Foam (Titane)
269000428
Unavailable
5
Seat Strap (Titane)
269000443
Unavailable
6
Socket Screw Button Head M6 X 10 | DS 650
250000436
$2.11
7
Grab Handle
269000434
Unavailable
8
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
9
Stainless, Flat Washer 8 mm
234081600
$0.55
10
Lock Washer 8 mm, Stainless
234181601
$0.55
11
Loctite 243, 10 ml
293800060
$21.49
12
REAR BODY COVER - Call your local BRP dealership
269000429
Unavailable
13
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
14
Flat Washer M5, Stainless
234051600
$0.77
15
Flat Washer 5 mm, Stainless
234052600
$0.77
16
SEAT PIVOT - Call your local BRP dealership | Includes 20 to 26
269000448
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Hex. Elastic Stop Nut M6
232561600
$1.15
20
Hex. Screw M6 X 30
207163060
$1.48
21
Synthetic Grease, 400 G
293550010
Unavailable
22
WASHER - Call your local BRP dealership
211200030
Unavailable
23
RUBBER WASHER - Call your local BRP dealership
293830029
Unavailable
24
RUBBER WASHER - Call your local BRP dealership
250200028
Unavailable
25
Washer
269000137
Unavailable
26
Hex. Elastic Nut M8
232581600
$1.48
27
Flat Washer 4 mm, Stainless
234042600
$1.15
28
Hex. Flange Screw K40 X 25
241142560
$2.64
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Stainless Flat Washer M6
234061600
$0.33
31
Shell
292000460
Unavailable
32
Seat Bow-Eye
269000430
Unavailable
33
Hex. Screw M6 X 50
207165060
$0.92
34
RH Frame Cover
269000431
Unavailable
LH FRAME COVER - Call your local BRP dealership
269000432
Unavailable
35
Black, Cap
277000203
$9.39
36
Staple
293730005
Unavailable
37
Loctite 271, 10 ml
293800005
$26.99
