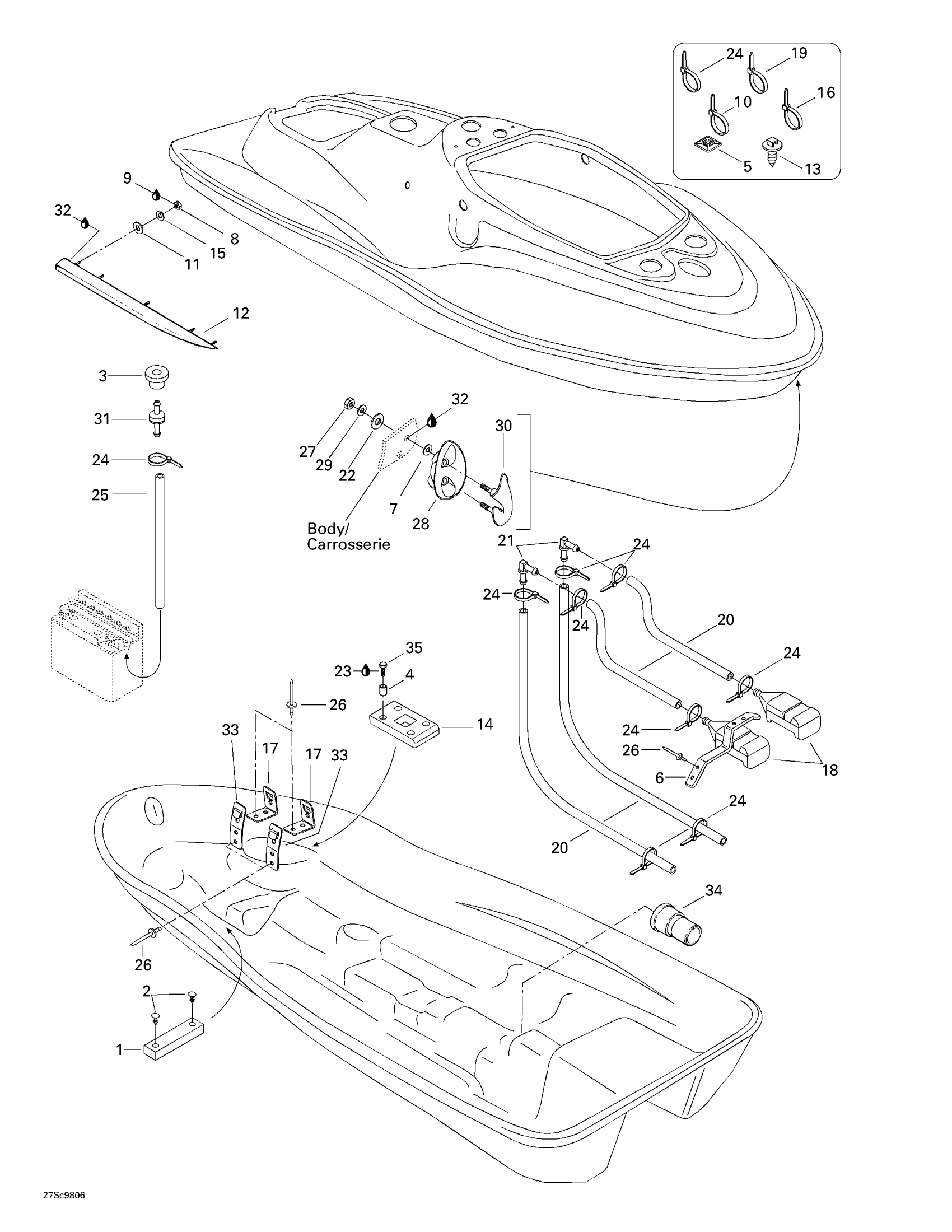

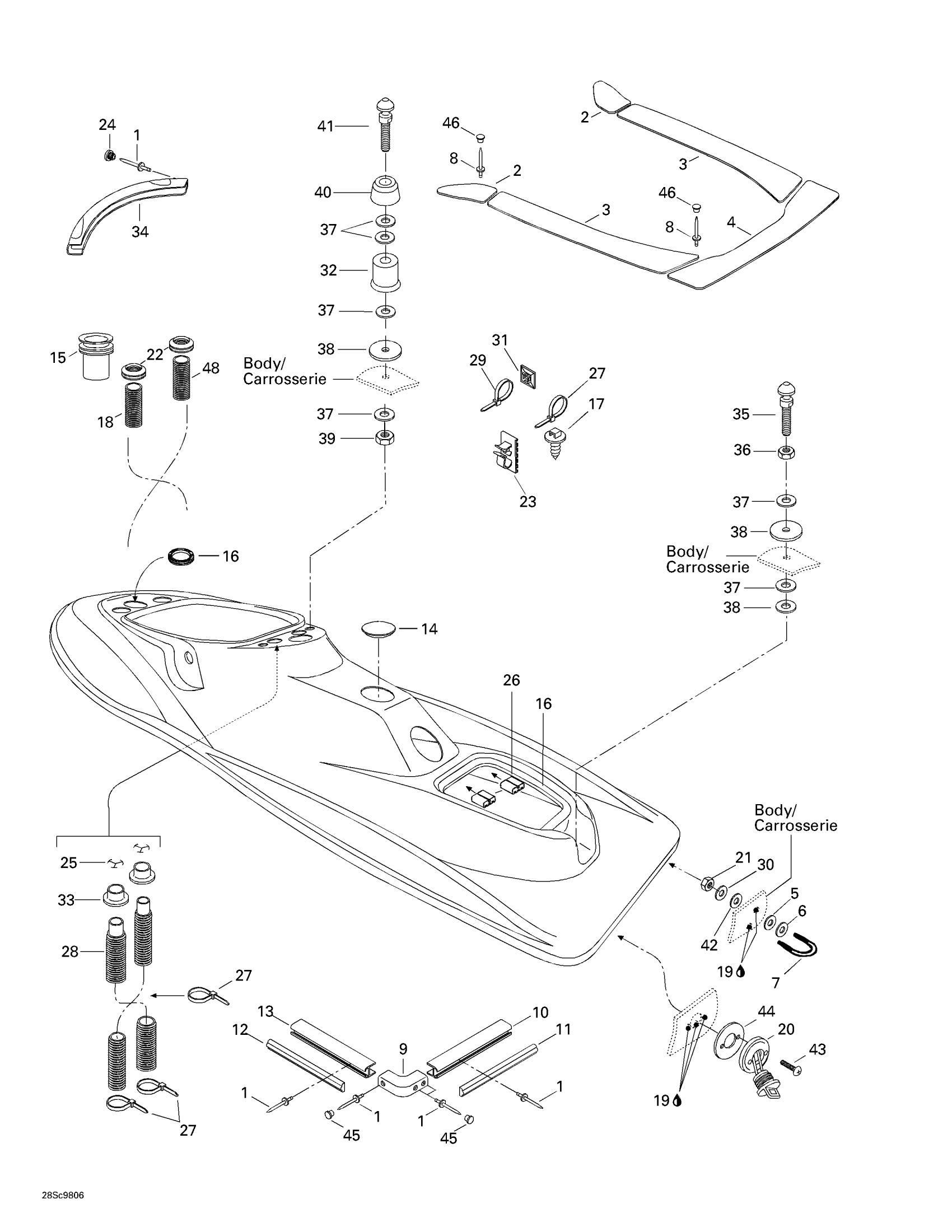

Sea-doo XP Limited, 5665/5667, 1998 09- Body Diagram
#
Description
Price
1
Wall Foam
292000561
Unavailable
2
Black Dart
293730010
$0.99
3
Grommet
293720029
$1.59
4
Sleeve
292000528
Unavailable
5
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
6
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
7
Stainless, Flat Washer 8 mm
234081600
$0.55
8
Hex. Nut M6
232061600
$1.15
9
Loctite 243, 10 ml
293800060
$21.49
10
Tie Wrap 368 mm
293750008
$1.04
11
Flat Washer M6, Stainless
234062600
$0.77
12
RH SPONSON - Call your local BRP dealership
292000411
Unavailable
LH SPONSON - Call your local BRP dealership
292000412
Unavailable
13
Mount Dart
293730040
$1.04
14
FoamPad
292000447
Unavailable
15
Lock Washer Helical M6
234161601
$1.15
16
Tie-Rap 180 mm
414115200
$0.11
17
STRAP CLIP - Call your local BRP dealership
293850075
Unavailable
18
Screen Bailer
292000079
Unavailable
19
Tie Wrap 142 mm
293750002
$1.25
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
22
Rubber Washer
293830037
$2.68
23
Loctite 271, 10 ml
293800005
$26.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
26
Avdel Rivet 3/16"
293150037
$0.56
27
Hex. Elastic Nut M8
232581600
$1.48
28
Black Shell
292001837
$20.99
29
Flat Washer 8 mm, Stainless
234082600
$2.43
30
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
31
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
Strap Clip
293850030
$11.12
34
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
35
Hex. Screw 10-14 X 7/8”
211000023
$3.59
