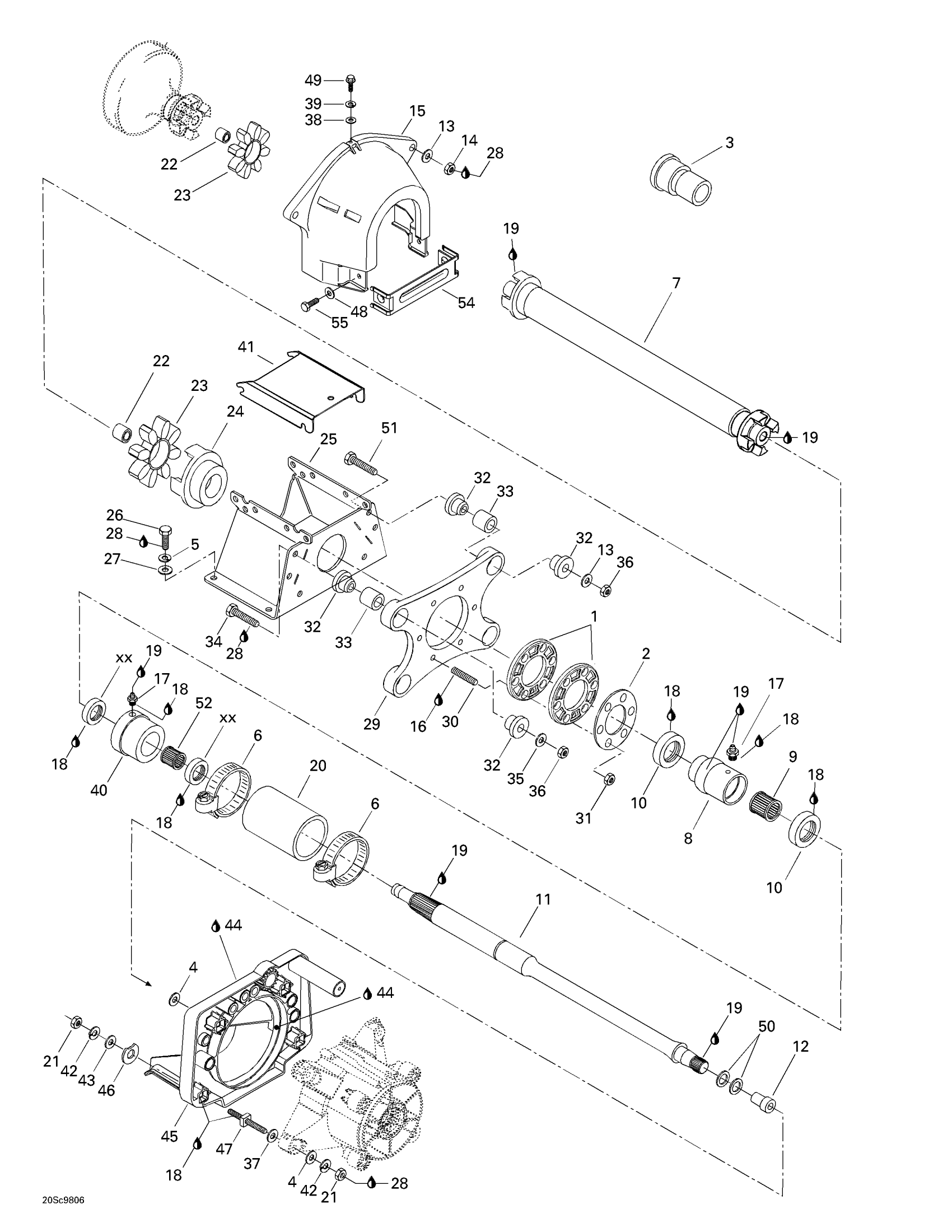

Sea-doo XP Limited, 5665/5667, 1998 05- Drive System Diagram

#

Description
Price

1

Alignement Washer

272000049190

Unavailable

2

Fixation Washer

272000051

Unavailable

3

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

4

Flat Washer 10 mm, Stainless

234002600

$2.22

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Tridon Clamp

293650035

$7.29

7

DRIVE SHAFT ASS'Y - Call your local BRP dealership

272000142

Unavailable

8

JOINT SUPPORT - Call your local BRP dealership

272000012400

Unavailable

9

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

10

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

11

DRIVE SHAFT - Call your local BRP dealership

271001553

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Nut M8

232081600

$1.47

15

Flywheel Guard

272000130

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Protection Hose

271000881

Unavailable

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

SNAP BUSHING - Call your local BRP dealership

293900016

Unavailable

23

Adaptor (Rubber)

293830058

Unavailable

24

Coupler Ass'y

272000143

Unavailable

25

Shaft Support

272000136

Unavailable

26

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

27

Flat Washer 8 mm, Stainless

234082600

$2.43

28

Loctite 243, 10 ml

293800060

$21.49

29

Damping Support | Includes 39 - 44.

272000048190

Unavailable

30

STUD M6 X 30 - Call your local BRP dealership

211300016

Unavailable

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Rubber Bushing

293830031

Unavailable

33

Bushing

274000114

$8.85

34

Hex. Screw M8 X 40

207084060

$2.22

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

Hex. Elastic Nut M8

232581600

$1.48

37

Flat Washer

211200063

Unavailable

38

Flat Washer M5, Stainless

234051600

$0.77

39

Helical Lock Washer M5

234151601

$1.15

40

SEAL CARRIER - Call your local BRP dealership

272000024

Unavailable

41

Shaft Guard

272000139

Unavailable

42

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

43

Flat Washer 10 mm, Stainless

234001600

$1.15

44

Instant Gasket

219701421

$51.99

45

Support pump

271000769

Unavailable

46

Shim 0.3 mm

272000053

$11.49

47

Square Stud

250300022

$20.99

48

Flat Washer M6, Stainless

234062600

$0.77

49

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

50

GASKET - Call your local BRP dealership

293250026

Unavailable

51

Hex. Screw M8 X 45

207084560

$3.38

52

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

53

Oil Seal

267000094

$22.49

54

FRONT LOWER GUARD - Call your local BRP dealership

291001228

Unavailable

55

Hex. Screw M6 X 16

207161660

$1.59
