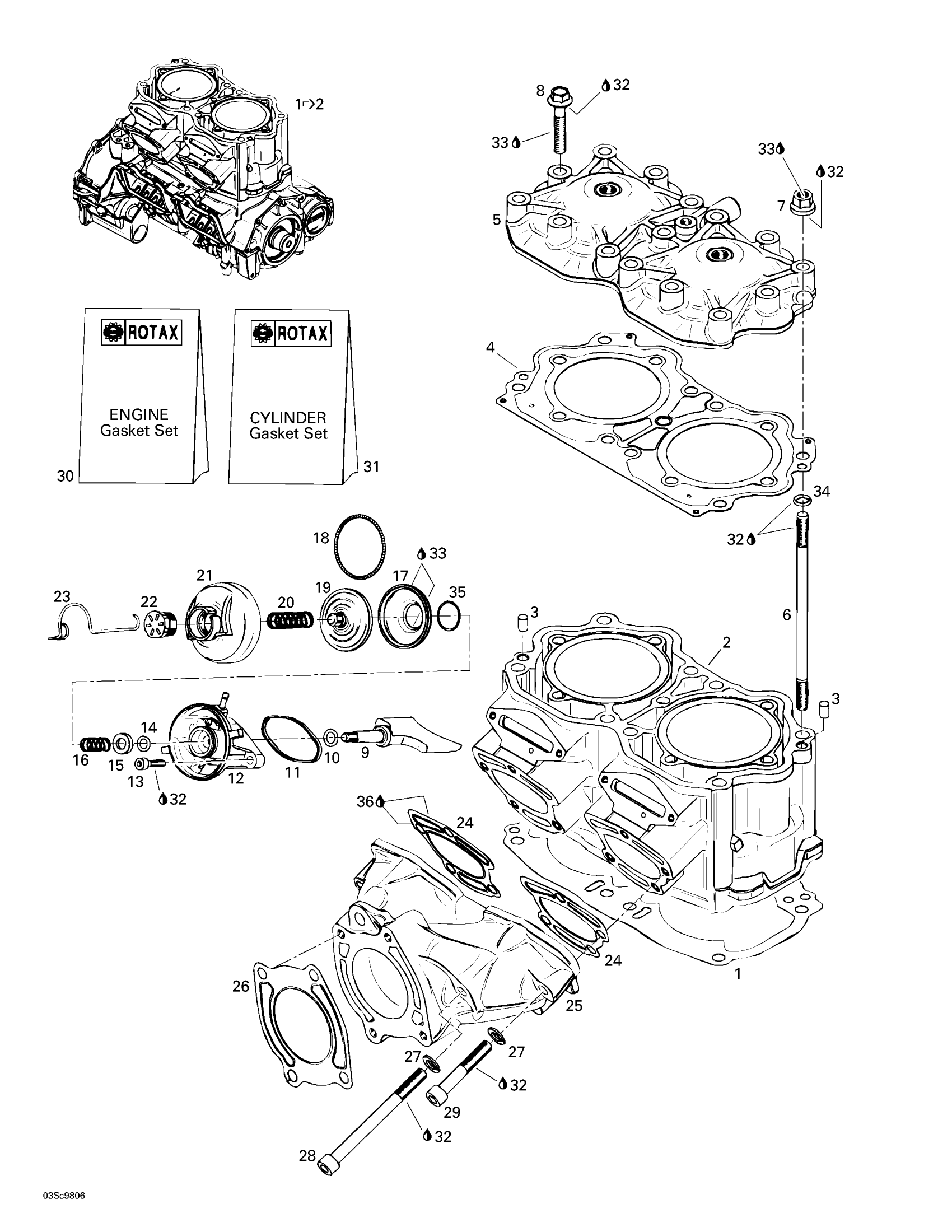

Sea-doo XP Limited, 5665/5667, 1998 01- Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094702

Unavailable

1

Gasket Cylinder 0.8 mm

290931687

Unavailable

Gasket Cylinder 0.6 mm

290931686

Unavailable

Gasket Cylinder 0.5 mm

290931685

Unavailable

2

Cylinder with Sleeve (Silver)

290923569

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

CYLINDER HEAD GASKET 947 - Call your local BRP dealership

420931702

Unavailable

5

Head Cylinder (Silver)

290923584

Unavailable

6

STUD M10 X 206 - Call your local BRP dealership

290640237

Unavailable

7

Stud Nut M10

290842863

Unavailable

8

Screw Hex. Flange M10 x 60

290841708

Unavailable

9

Exhaust Valve

290854410

Unavailable

10

O-Ring

420931765

$0.98

11

Rubber Gasket

290931670

Unavailable

12

Valve Housing

290854435

Unavailable

13

Socket Head Screw M6 X 25

205062560

$1.69

14

O-Ring

420931765

$0.98

15

Support Ring

290926220

Unavailable

16

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

17

Exhaust Bellows

420260723

$42.49

18

Hose Spring This part replaces 420239048.

420939281

$7.41

19

Exhaust Valve

290854445

Unavailable

20

Compression Spring

290939137

Unavailable

21

Valve Cover This part replaces 420911558.

420911559

$29.49

22

Adjuster Screw

420241221

$14.22

23

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

24

Gasket

293250081

Unavailable

25

Exhaust Manifold (Silver)

290979604

Unavailable

26

Gasket

293250080

Unavailable

27

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

28

Socket Head Screw M10 x 110

290941483

Unavailable

29

Allen Screw M10 x 60

215906060

Unavailable

30

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888131

Unavailable

31

Cylinder Gasket Set (Not Shown)

290888136

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Dow Corning 111, 150 g

413707000

$59.99

34

O-RING - Call your local BRP dealership

290850460

Unavailable

35

Hose Spring This part replaces 420838253.

420838255

$7.41

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
