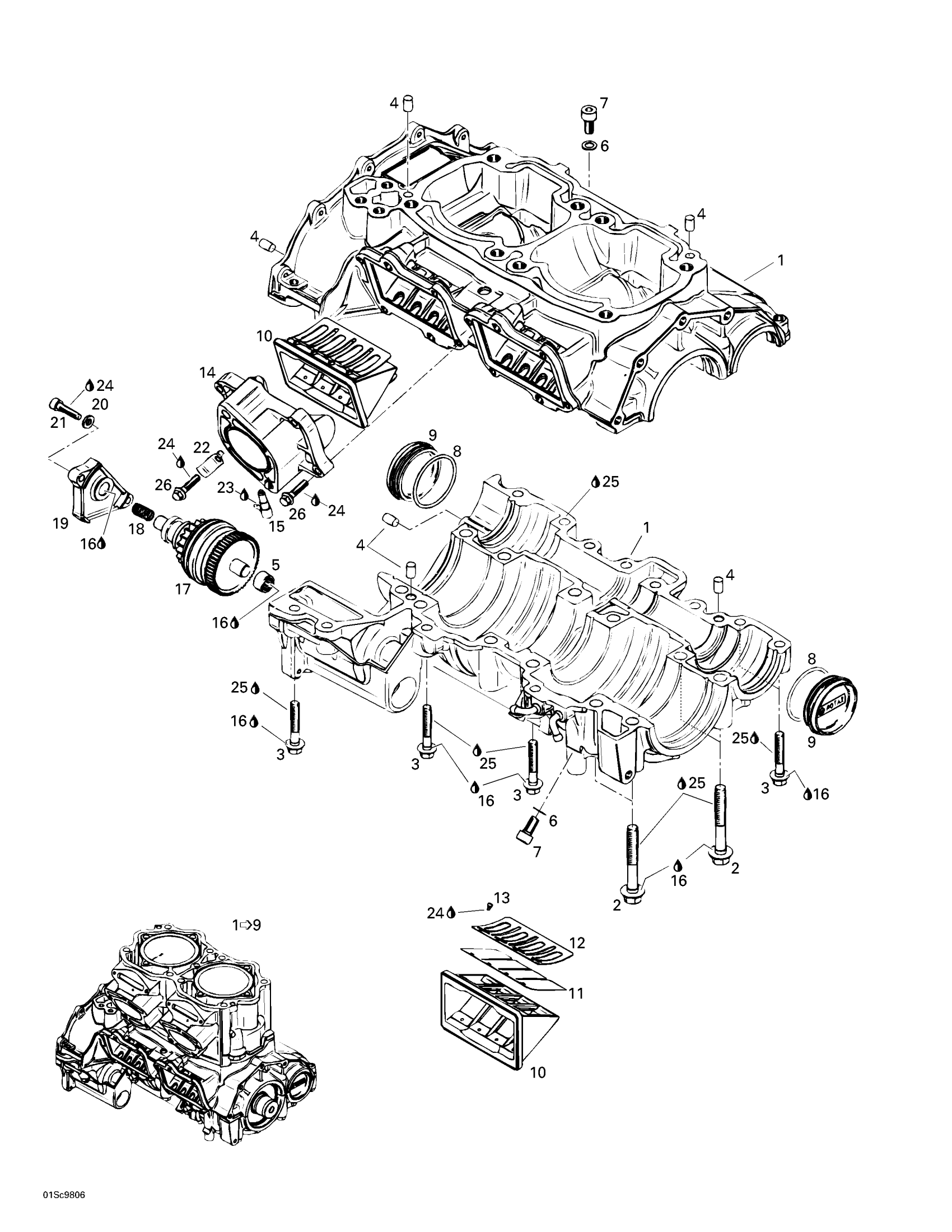

Sea-doo XP Limited, 5665/5667, 1998 Crankcase, Rotary Valve Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094702

Unavailable

1

Crankcase Ass'y <<947>> (Silver) | Includes 1 - 7.

290887754

Unavailable

2

Flange Screw M10 x 73,5

290941333

Unavailable

3

FLANGE SCREW M8 X 45 - Call your local BRP dealership

290940638

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Needle Bushing

420232482

$20.99

6

Sealing Ring

420950141

$2.00

7

ALLEN SCREW M8 X 16 - Call your local BRP dealership

290440193

Unavailable

8

O-Ring

290230300

Unavailable

9

Bearing Cover

290811200

Unavailable

10

REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27

420924602

$189.99

11

Reed Pedal

290924612

Unavailable

12

Reed Pedal Stop

290924617

Unavailable

13

Phillips Screw M3 X 5

420941215

$1.69

14

Carburator Adapter Ass'y | Includes 14 - 15.

290867833

Unavailable

15

Check Valve

420956511

$35.99

16

Dow Corning 111, 150 g

413707000

$59.99

17

Starter Drive Ass'y

420888042

$369.99

18

Spring

420938204

$7.65

19

Cover

290811210

Unavailable

20

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

21

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

22

WIRE SUPPORT - Call your local BRP dealership

290953330

Unavailable

23

Sealant Loctite 648

219703000

$45.99

24

Loctite 243, 10 ml

293800060

$21.49

25

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

26

Hex. Flange Screw M6 x 25

290240033

Unavailable

27

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888131

Unavailable

28

Gasket

293250066

Unavailable
