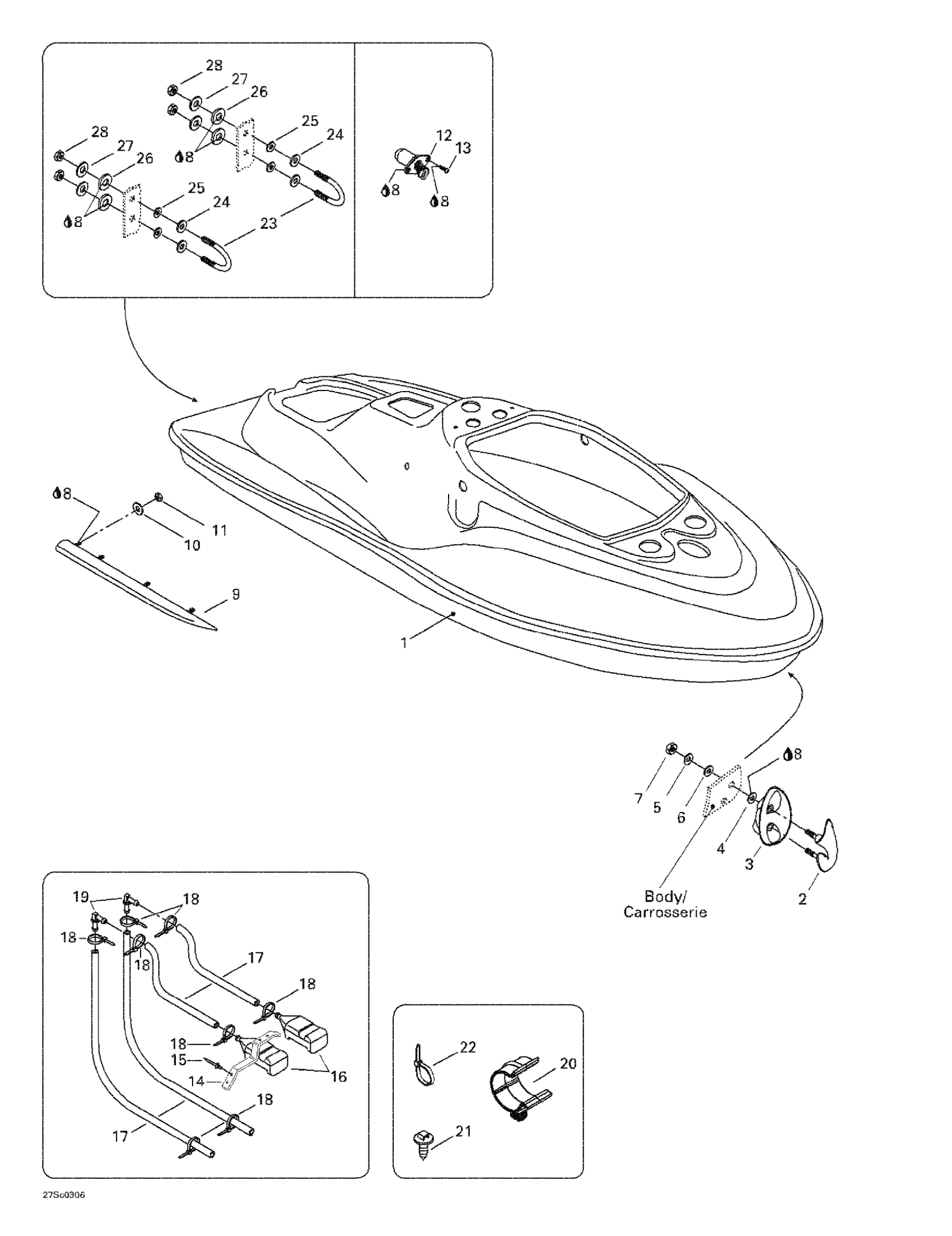

Sea-doo XP DI, 6130/6131, 2003 Hull Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Bow-Eye

292000500

Unavailable

3

Shell

292000501

Unavailable

4

Stainless, Flat Washer 8 mm

234081600

$0.46

5

Flat Washer 8 mm, Stainless

250200175

$1.29

6

Rubber Washer

293830037

$2.75

7

Hex. Elastic Nut M8

232581600

$1.25

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

RH SPONSON - Call your local BRP dealership

292000411

Unavailable

LH SPONSON - Call your local BRP dealership

292000412

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

13

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

14

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

15

Avdel Rivet 3/16"

293150037

$0.47

16

Bailer Screen

292000688

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

20

Cable Retainer

275500527

$2.75

Retainer

275500590

$7.18

21

Mount Dart

293730040

$0.86

22

Tie-Rap 180 mm

414115200

$0.09

23

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

24

Flat Washer M8.5 x 18

293050001

$1.29

25

Flat Washer 8 mm, Nylon

234081100

$1.00

26

Rubber Washer

293830037

$2.75

27

Flat Washer 8 mm, Stainless

250200175

$1.29

28

Hex. Elastic Nut M8

232581600

$1.25
