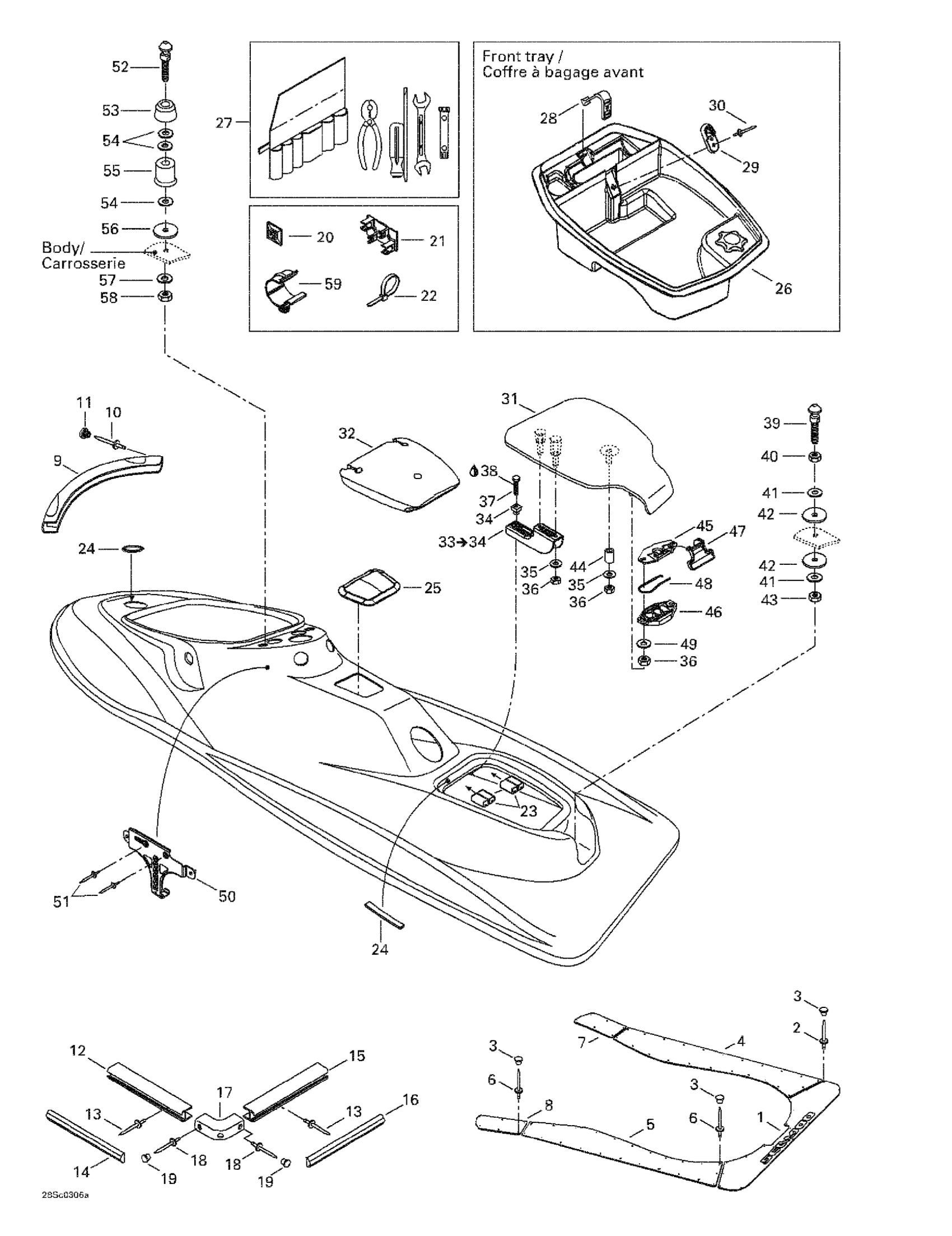

Sea-doo XP DI, 6130/6131, 2003 Body Diagram

#

Description
Price

1

Rear Carpet

291001009

Unavailable

2

Rivet 1/8"

293150016

$0.33

3

Black, Snap Cap

293000014

$0.97

4

RH Center Carpet

291001254

Unavailable

5

LH Center Carpet

291001255

Unavailable

6

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

7

RH Front Carpet

291001005

Unavailable

8

LH Front Carpet

291001006

Unavailable

9

BUMPER NOSE - Call your local BRP dealership

291000801

Unavailable

10

Pop Rivet 3/16"

293150014

$1.00

11

Bumper Plug, Black

291000339

$2.69

12

Black, Side Bumper

204050270

$167.13

13

Pop Rivet 3/16"

293150005

$0.46

14

SIDE BUMPER TRIM - Call your local BRP dealership

291000996

Unavailable

15

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

16

REAR BUMPER TRIM - Call your local BRP dealership

291000998

Unavailable

17

Bumper Corner

291002244

$44.00

18

Pop Rivet 3/16"

293150013

$1.27

19

Bumper Plug, Black

291000339

$2.69

20

Tie-Rap Mount

293750025

$0.99

21

Clamp Tie

291001399

Unavailable

22

Tie Wrap 368 mm

293750008

$0.97

23

Spacer

291000723

Unavailable

24

Was 293200017 Neoprene Seal

219704365

$135.79

25

Hull Plug

292000926

Unavailable

26

Front Tray

269501245

Unavailable

27

Owners Tool Kit

295500783

Unavailable

28

Strap

269502417

$16.39

29

Hook

269500521

Unavailable

30

Avdel Rivet

293150027

$2.30

31

REAR ACCESS COVER - Call your local BRP dealership

269501153

Unavailable

32

Float

269500417

Unavailable

33

Base Keeper | Includes 46 to 47

269500575

Unavailable

34

Square Nut M8

211100033

$16.39

35

Flat Washer M6, Stainless

234062600

$0.73

36

Hex. Elastic Stop Nut M6

232561600

$1.06

37

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

LATCH STUD - Call your local BRP dealership

291000690

Unavailable

40

Hex. Jam Nut M10

232100600

$2.12

41

Flat Washer 10 mm, Stainless

234002600

$2.12

42

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

43

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

44

SPACER - Call your local BRP dealership

291000177

Unavailable

45

Latch Ass'y

269700109

$23.10

46

Latch Ass'y

269700109

$23.10

47

Latch Ass'y

269700109

$23.10

48

Latch Spring

269700017

$8.34

49

Stainless Flat Washer M6

234061600

$0.28

50

Module Support Ass’Y

291001927

Unavailable

51

Pop Rivet 3/16"

293150039

$1.31

52

Latch Stud

291001021

Unavailable

53

Rubber Pad

293830025

Unavailable

54

Flat Washer 10 mm, Stainless

234002600

$2.12

55

Spacer Ring

291001089

Unavailable

56

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

57

Flat Washer 10 mm, Stainless

234002600

$2.12

58

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

59

Retainer

275500590

$8.24
