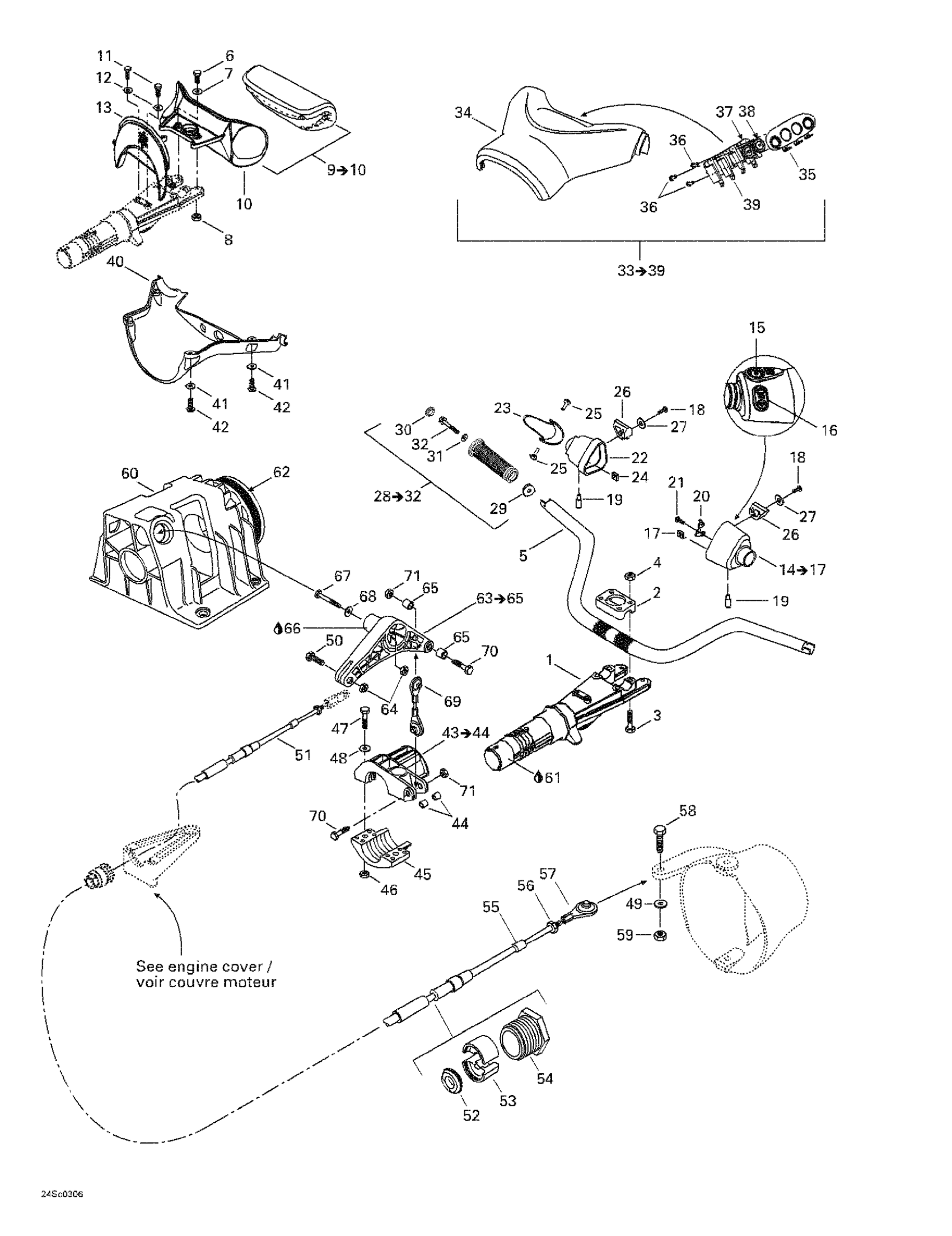

Sea-doo XP DI, 6130/6131, 2003 Steering System Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Handlebar

277000824

Unavailable

6

Hex. Screw M6 X 30

207063060

$1.89

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Handle Pad | Includes 9 to 10

277000867

Unavailable

10

Handle Bar Pad Support

277000687

Unavailable

11

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

PLATE - Call your local BRP dealership

277000549

Unavailable

14

HOUSING ASSY - Call your local BRP dealership | Includes 14 to 17

277000877

Unavailable

15

Switch Knob

277000306

Unavailable

16

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

17

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

18

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

19

Socket Head Screw M6 X 16

250000036

$9.00

20

Retainer Plate

277000845

Unavailable

21

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

22

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

23

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

24

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

25

PIN - Call your local BRP dealership

277000381

Unavailable

26

INSERT - Call your local BRP dealership

293450153

Unavailable

27

Flat Washer M5, Stainless

234051600

$0.77

28

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Black, Cap

277000203

$9.39

31

Flat Washer M6, Stainless

234062600

$0.77

32

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

33

Upper Steering Cover | Includes 33 - 39.

277000607

Unavailable

34

Steering Cover

277000636

Unavailable

35

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

36

Screw K40 X 10

241140060

$1.48

37

MODE KNOB - Call your local BRP dealership | LE

293000099

Unavailable

38

MODE KNOB - Call your local BRP dealership | LE

293000099

Unavailable

39

Switch Support | LE

277000563

Unavailable

40

Steering Cover

277001205

Unavailable

41

Flat Washer M5, Stainless

234051600

$0.77

42

Hex. Flange Screw K40 X 16

241141660

$1.48

43

Steering Arm Stem | Includes 42 to 43

277000620

Unavailable

44

SPACER - Call your local BRP dealership

291000176

Unavailable

45

Arm Thrust | Includes 43 to 44

277000519

Unavailable

46

Hex. Elastic Stop Nut M6

232561600

$1.15

47

Hex. Screw M6 X 25

207162560

$1.47

48

Flat Washer M6, Stainless

234062600

$0.77

49

Stainless Flat Washer M6

234061600

$0.33

50

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

51

Cable-Steering This part replaces 277001008.

277001324

$219.99

52

Rubber Washer

293830063

$1.90

53

Half Ring

277001527

$10.37

54

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

55

Terminal Wiper

277000441

$11.99

56

Hex. Nut 1/4"-28

211100056

$0.69

57

Ball Joint

277000775

$51.99

58

Hex. Screw M6 X 35

207063560

$2.22

59

Hex. Elastic Stop Nut M6

232561600

$1.15

60

STEERING SUPPORT - Call your local BRP dealership

277000617

Unavailable

61

Synthetic Grease, 400 G

293550010

Unavailable

62

Was 293200017 Neoprene Seal

219704365

$149.99

63

L-LEVER - Call your local BRP dealership | Includes 62 to 64

277000772

Unavailable

64

Hex. Elastic Stop Nut M6

232561600

$1.15

65

SPACER - Call your local BRP dealership

291000176

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

Hex. Forming Screw M6 X 20

207162060

$1.29

68

Flat Washer M6, Stainless

234062600

$0.77

69

BALL JOINT - Call your local BRP dealership

277000829

Unavailable

70

Hex. Screw M6 X 40

207064060

$1.69

71

Hex. Elastic Stop Nut M6

232561600

$1.15
