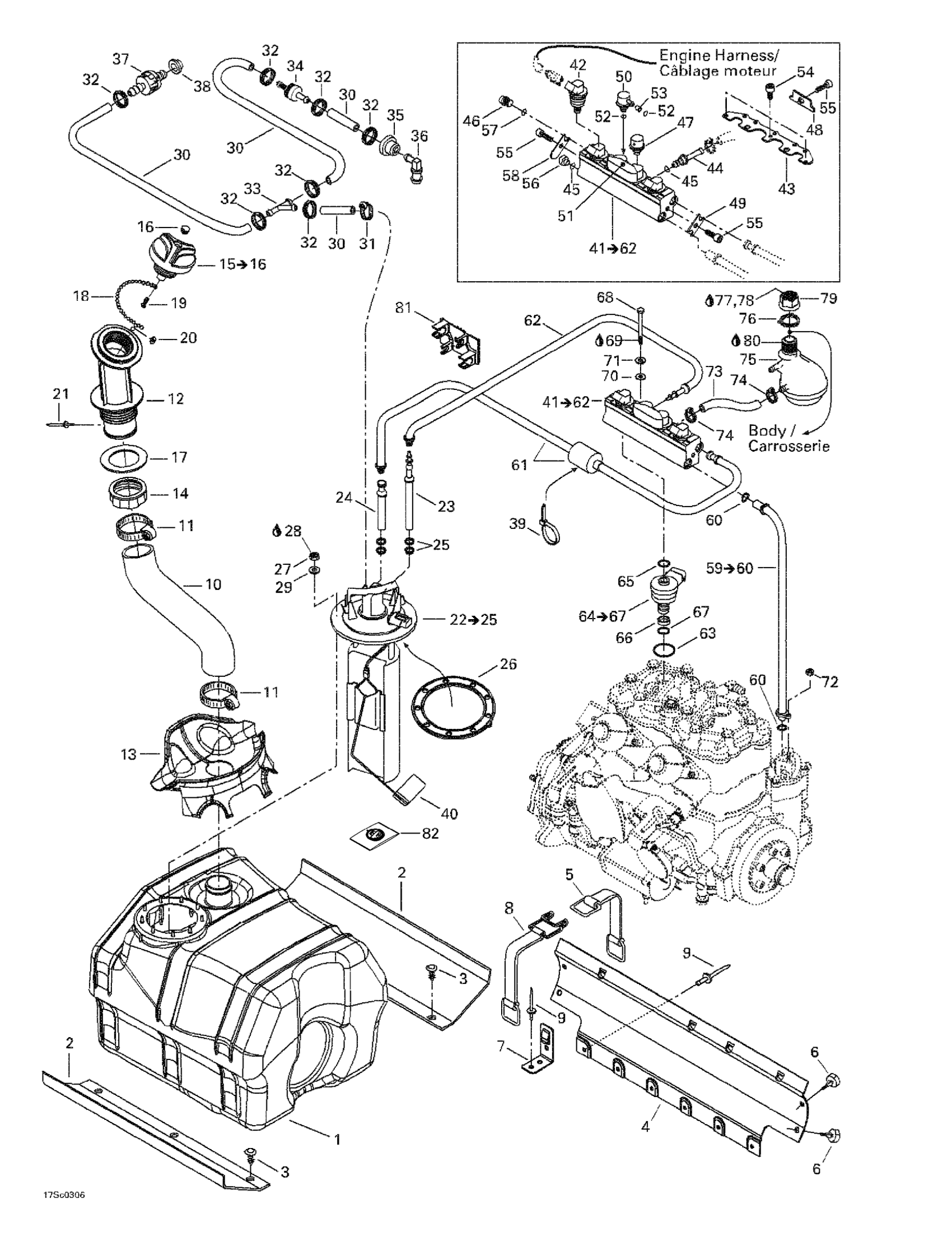

Sea-doo XP DI, 6130/6131, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank | Includes 1 to 3

275500581

Unavailable

2

Rubber Pad

293830087

Unavailable

3

Black, Dart

293730006

$0.99

4

Heat Shield

292000939

Unavailable

5

Fuel Tank Strap

293850036

$18.99

6

Rubber Stopper

293830064

Unavailable

7

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

8

Fuel Tank Strap

293850094

$22.49

9

Avdel Rivet 3/16"

293150037

$0.56

10

Filler Hose

275500584

Unavailable

11

Tridon Clamp

293650023

$13.49

12

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

13

Fuel Shield

275500589

Unavailable

14

Filler Neck Nut, Fuel

211100012

$14.22

15

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

16

Black, Snap Cap

293000034

$9.39

17

Gasket

293250017

Unavailable

18

Fuel Cap Chain

275500507

$17.59

19

Screw K40 X 10

241140060

$1.48

20

Flat Washer M3, Stainless

234032600

$0.55

21

Pop Rivet 1/8"

390407900

$1.49

22

Fuel Pump Module Ass’Y | Includes 22 - 25.

275500585

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Oetiker Clamp

293650140

$2.69

26

Gasket

293250088

$14.99

27

Hex. Flange Nut M5

250100071

$2.11

28

Loctite 243, 10 ml

293800060

$21.49

29

Rubber Washer

291001956

Unavailable

30

Was 275500549 Hose 1/4"

219704357

$194.99

31

Tridon Gear Clamp

293650170

$1.99

32

Oetiker Gear Clamp

293650025

$3.09

33

Y-Fitting

293710059

$9.69

34

Check Valve

275500398

$10.99

35

Grommet

709200285

$9.69

36

Elbow Male Connector

414580600

$4.23

37

Check Valve

275500505

$31.99

38

Grommet

293720029

$1.59

39

Tie Wrap 368 mm

293750008

$1.04

40

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

41

Fuel Distributor | Includes 41 - 62.

275500600

Unavailable

42

Fuel Injector

275500460

$329.99

43

RETAINER PLATE - Call your local BRP dealership

275500543

Unavailable

44

AIR ADAPTER - Call your local BRP dealership

275500538

Unavailable

45

O-RING - Call your local BRP dealership

293300069

Unavailable

46

FUEL PLUG - Call your local BRP dealership

275500595

Unavailable

47

Air Regulator

275500463

Unavailable

48

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

49

RETAINER PLATE - Call your local BRP dealership

275500596

Unavailable

50

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

51

Cover

275500449

Unavailable

52

O-Ring

293300072

Unavailable

53

SPACER - Call your local BRP dealership

275500465

Unavailable

54

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

55

Socket Head Screw M6 X 12

205061260

$1.58

56

AIR PLUG - Call your local BRP dealership

275500597

Unavailable

57

O-Ring

275500598

Unavailable

58

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

59

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

60

O-Ring

293300070

Unavailable

61

Fuel Feeding Hose Ass’Y

275500593

Unavailable

62

Fuel Return Hose Ass’Y

275500594

Unavailable

63

O-Ring

293300083

Unavailable

64

Air Injector | Includes 45 to 48

275500633

$329.99

65

O-Ring

293300084

Unavailable

66

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

67

O-Ring

293300076

Unavailable

68

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

69

Loctite 243, 10 ml

293800060

$21.49

70

Stainless, Flat Washer 8 mm

234081600

$0.55

71

Lock Washer 8 mm, Stainless

234181601

$0.55

72

Hex. Elastic Stop Nut M6

232561600

$1.15

73

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

74

Tridon Gear Clamp

293650170

$1.99

75

Noise Reducer

270000569

Unavailable

76

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

77

Was 293800041 Loctite Primer 7649

219704458

$39.99

78

Loctite 243, 10 ml

293800060

$21.49

79

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

80

Silicone Sealant 51388, 300 ml

296000309

$36.99

81

Clamp Tie

291001399

Unavailable

82

Fuel Filter, Bosch

219700368

$39.99
