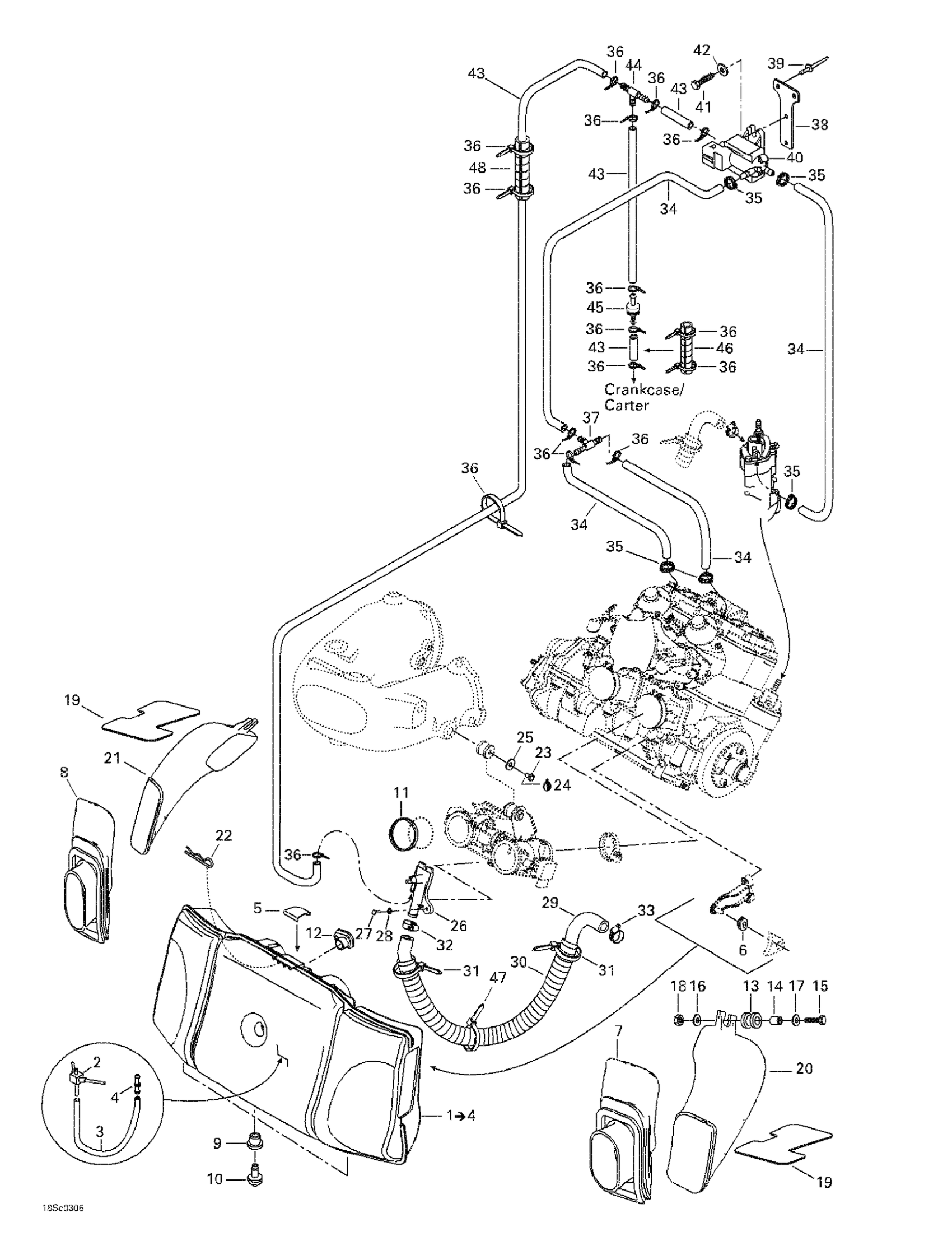

Sea-doo XP DI, 6130/6131, 2003 Air Intake System Diagram

#

Description
Price

1

Air Silencer | Includes 18 to 21

273000209

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

4

CONNECTOR - Call your local BRP dealership

293710107

$1.09

5

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

6

Cable Grommet

293720052

Unavailable

7

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

8

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

9

GROMMET - Call your local BRP dealership

293720064

Unavailable

10

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

11

Gasket

293250122

$67.99

12

FEMALE ADAPTOR - Call your local BRP dealership

270600024

Unavailable

13

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

14

SPACER - Call your local BRP dealership

272000074

Unavailable

15

Hex. Screw M6 X 35

207063560

$2.22

16

Flat Washer M6, Stainless

234062600

$0.77

17

Flat Washer M6, Stainless

234062600

$0.77

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

20

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

21

High Air Duct, Mag

273000150

Unavailable

22

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

23

HEX. SCREW M8 X 12 - Call your local BRP dealership

207181260

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Flat Washer 8 mm, Stainless

234082600

$2.43

26

AIR SILENCER ADAPTOR - Call your local BRP dealership

270600023

Unavailable

27

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

28

Flat Washer 4 mm, Stainless

234042600

$1.15

29

INTAKE HOSE - Call your local BRP dealership

270600021

Unavailable

30

Tubing 25 MM 1000MM Long

219704402

$15.99

31

Tie Wrap 142 mm

293750002

$1.25

32

Tridon Gear Clamp

293650172

$3.09

33

Tridon Gear Clamp

293650173

$3.09

34

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

35

Oetiker Clamp

293650100

$3.38

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

37

T-Fitting

293710068

$8.29

38

Relay Support

291001945

Unavailable

39

Pop Rivet 3/16"

293150080

Unavailable

40

SOLENOID VALVE - Call your local BRP dealership

270600044

Unavailable

41

Hex. Screw M5 X 16, Scotch Grip

207351660

$0.83

42

Flat Washer M5, Stainless

234051600

$0.77

43

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

44

T-Fitting

293710068

$8.29

45

Check Valve

275500398

$10.99

46

Tubing 10 MM 1000MM Long

219704407

$2.79

47

Tie-Rap 180 mm

414115200

$0.11

48

Tubing 10 MM 1000MM Long

219704407

$2.79
