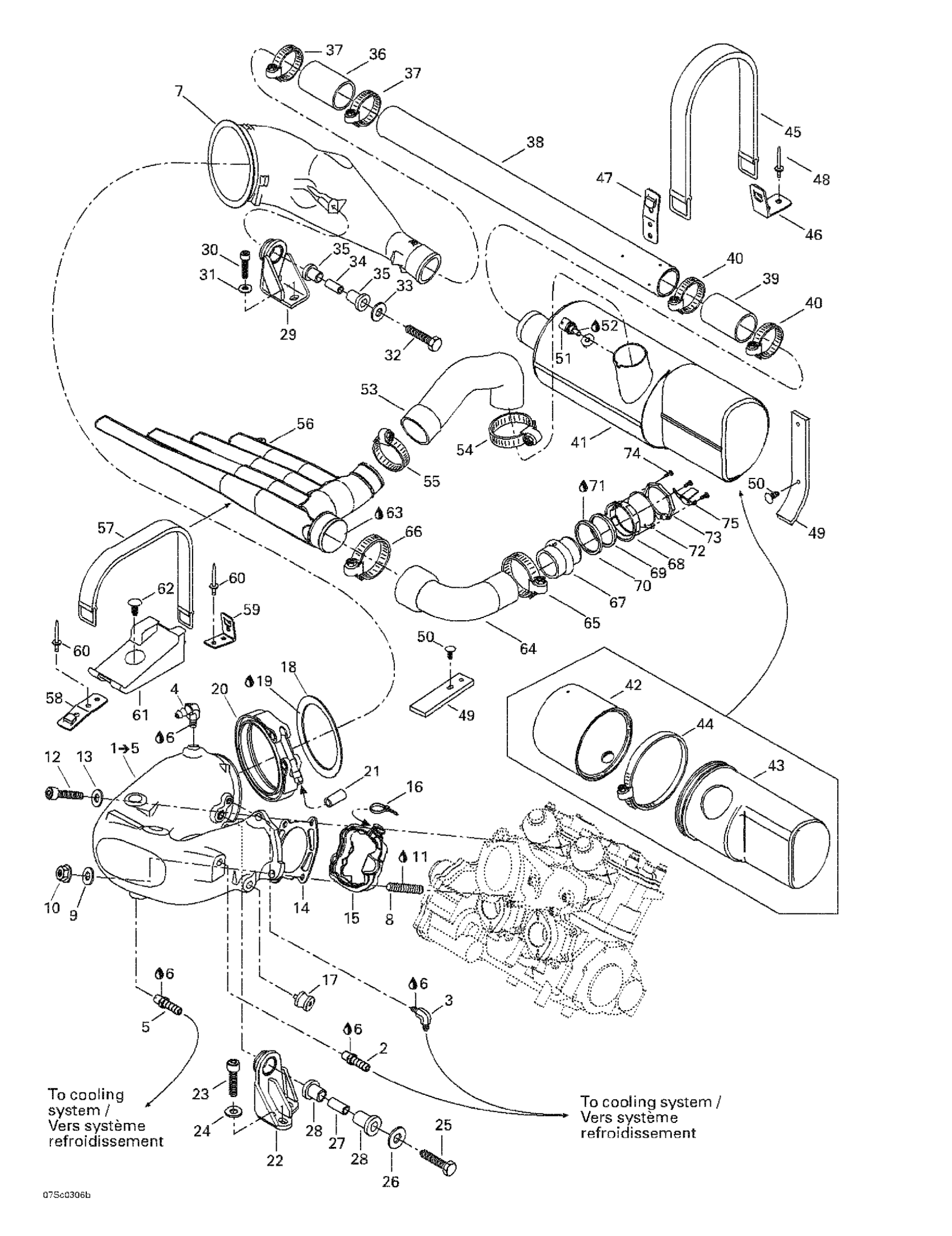

Sea-doo XP DI, 6130/6131, 2003 Muffler Diagram

#

Description
Price

1

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

2

Male Connector

293710037

$10.49

3

Elbow Fitting 90°

293710048

Unavailable

4

Elbow Fitting

293700016

Unavailable

5

Male Connector | With Catalyst

293710021

$14.23

6

Was 293800013 Loctite 56765

219704454

$65.99

7

Exhaust Cone

274000658

Unavailable

8

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

9

Flat Washer

211200051

$1.68

10

Hex. Flange Nut M10

233101600

$5.29

11

Loctite 243, 10 ml

293800060

$21.49

12

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

13

Flat Washer

211200051

$1.68

14

EXHAUST GASKET - Call your local BRP dealership

420931990

Unavailable

15

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

16

Tie Wrap 142 mm

293750002

$1.25

17

Rubber Isolator

707000949

$11.49

18

SEALING RING - Call your local BRP dealership

274000511

Unavailable

19

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

20

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

21

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

22

Pipe Support

274000890

Unavailable

23

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

24

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

25

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

26

Flat Washer 10 mm, Stainless

234002600

$2.22

27

BUSHING - Call your local BRP dealership

274000861

Unavailable

28

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

29

Pipe Support

274000777

Unavailable

30

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

31

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

32

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

33

Flat Washer 10 mm, Stainless

234002600

$2.22

34

BUSHING - Call your local BRP dealership

274000861

Unavailable

35

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

36

Exhaust Hose

274000896

Unavailable

37

Tridon Clamp

293650064

$8.29

38

Expension Tube

274000948

Unavailable

39

Exhaust Hose

274000896

Unavailable

40

Tridon Clamp

293650064

$8.29

41

Muffler

274001053

Unavailable

42

Front Muffler Cover

274000811

Unavailable

43

Rear Muffler Cover

274000812

Unavailable

44

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

45

Retainer Strap

293850097

$11.64

46

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

47

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

48

Avdel Rivet 3/16"

293150037

$0.56

49

Rubber Pad

293830089

Unavailable

50

Black, Dart

414644300

$0.98

51

Temperature Sensor

278002895

$39.99

52

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

53

EXHAUST HOSE - Call your local BRP dealership

274001055

Unavailable

54

Tridon Clamp

293650064

$8.29

55

Tridon Clamp

293650179

$11.49

56

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

57

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

58

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

59

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

60

Avdel Rivet 3/16"

293150037

$0.56

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Black, Dart

293730006

$0.99

63

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

64

Adapter Hose

274000784

Unavailable

65

Tridon Clamp

293650064

$8.29

66

Tridon Clamp

204000079

$9.99

67

Exhaust Hose, Outlet

274001391

$29.49

68

NUT 72 MM - Call your local BRP dealership

274000835

Unavailable

69

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

70

GASKET - Call your local BRP dealership

293250041

Unavailable

71

Silicone Sealant 51388, 300 ml

296000309

$36.99

72

GASKET - Call your local BRP dealership

293250107

Unavailable

73

SUPPORT NUT - Call your local BRP dealership

274000892

Unavailable

74

Hex. Flange Screw K40 X 16

241141660

$1.48

75

BRACKET - Call your local BRP dealership

274000885

Unavailable
