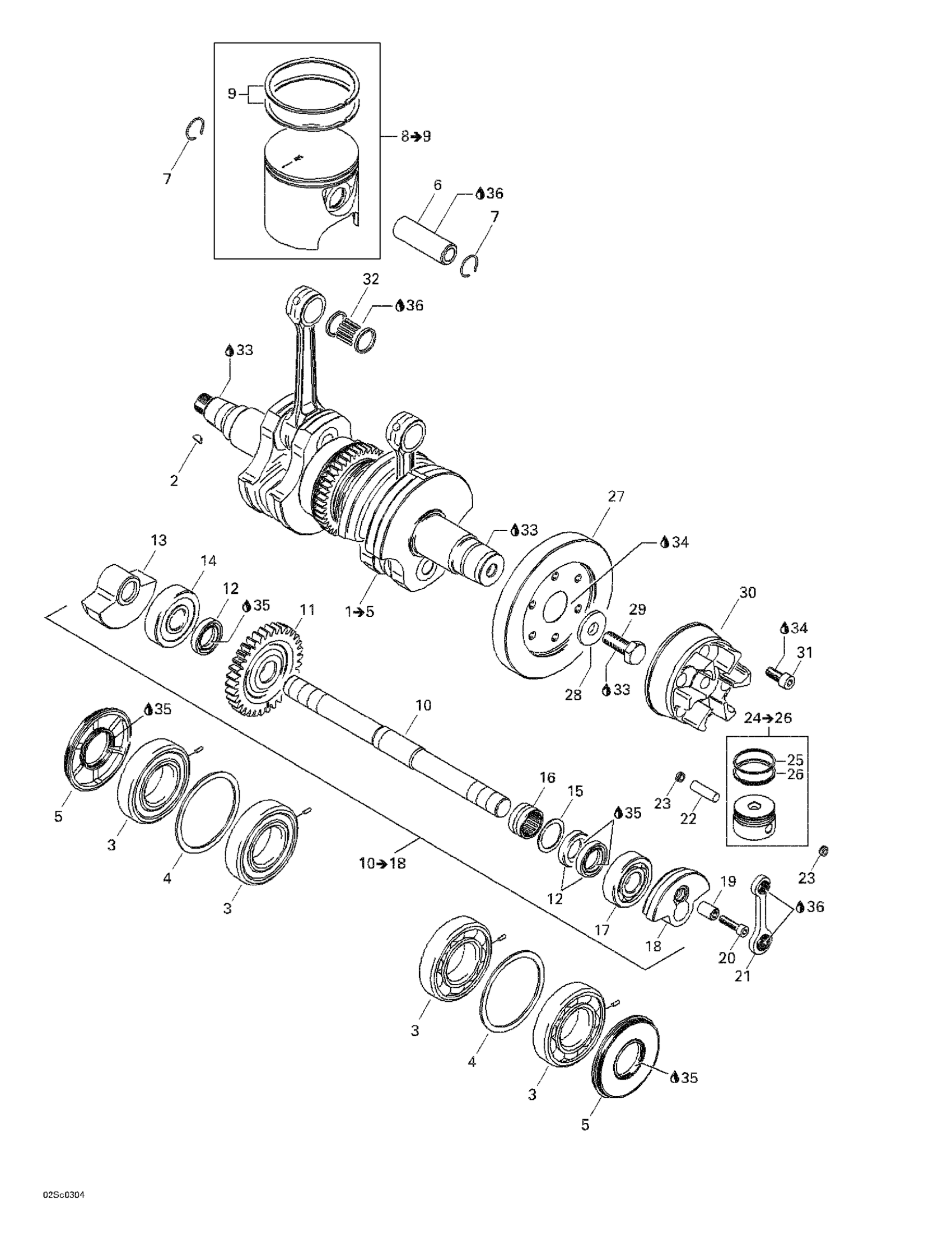

Sea-doo XP DI, 6130/6131, 2003 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 5

420887767

Unavailable

2

Woodruff Key

420246055

$2.43

3

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

4

Washer

420926190

$11.63

5

OIL SEAL - Call your local BRP dealership

420931731

Unavailable

6

Piston Pin - Call Your Local BRP Dealership

420916398

Unavailable

7

CIRCLIP - Call your local BRP dealership

420845465

Unavailable

8

PISTON WITH 2 RINGS 87,88 MM - Call your local BRP dealership | Includes 33 to 34

420889045

Unavailable

PISTON OVERSIZE 88,13 MM - Call your local BRP dealership | Includes 33 to 34

420889046

Unavailable

9

RECTANGULAR RING - Call your local BRP dealership

420815267

Unavailable

RECTANGULAR RING, OVERSIZE - Call your local BRP dealership

420815268

Unavailable

10

Shaft Balance Ass‘y | INCLUDES 10 TO 18

420837445

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

BALL BEARING 6304 - Call your local BRP dealership

420932097

Unavailable

15

Washer

420927192

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

420232555

Unavailable

17

Ball Bearing 6304

420932096

Unavailable

18

MASS BALANCE - Call your local BRP dealership

420818955

Unavailable

19

COMPRESSOR PIN - Call your local BRP dealership

420921460

Unavailable

20

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

420640690

Unavailable

21

CONROD ASS?Y - Call your local BRP dealership

420917505

Unavailable

22

PISTON PIN 9 X 30 - Call your local BRP dealership

420916430

Unavailable

23

DISTANCE BUSHING - Call your local BRP dealership

420847940

Unavailable

24

PISTON ASS?Y 38.95 MM - Call your local BRP dealership | Includes 24 to 26

420888550

Unavailable

25

RECTANGULAR RING - Call your local BRP dealership

420215970

Unavailable

26

OIL SCRAPER RING - Call your local BRP dealership

420215960

Unavailable

27

Coupling, Silver

420958082

Unavailable

28

WASHER - Call your local BRP dealership

420827782

Unavailable

29

HEX. SCREW M12 X 30 - Call your local BRP dealership

420640120

Unavailable

30

COUPLING - Call your local BRP dealership

420958137

Unavailable

31

Socket Screw M8 X 30

205083060

$2.96

32

Bearing_Needle This part replaces 420832552.

420832553

$30.49

33

Loctite 243, 10 ml

293800060

$21.49

34

Sealant Loctite 648

219703000

$45.99

35

Dow Corning 111, 150 g

413707000

$59.99

36

Not Available As Spare Part - Friction Washer

Unavailable
