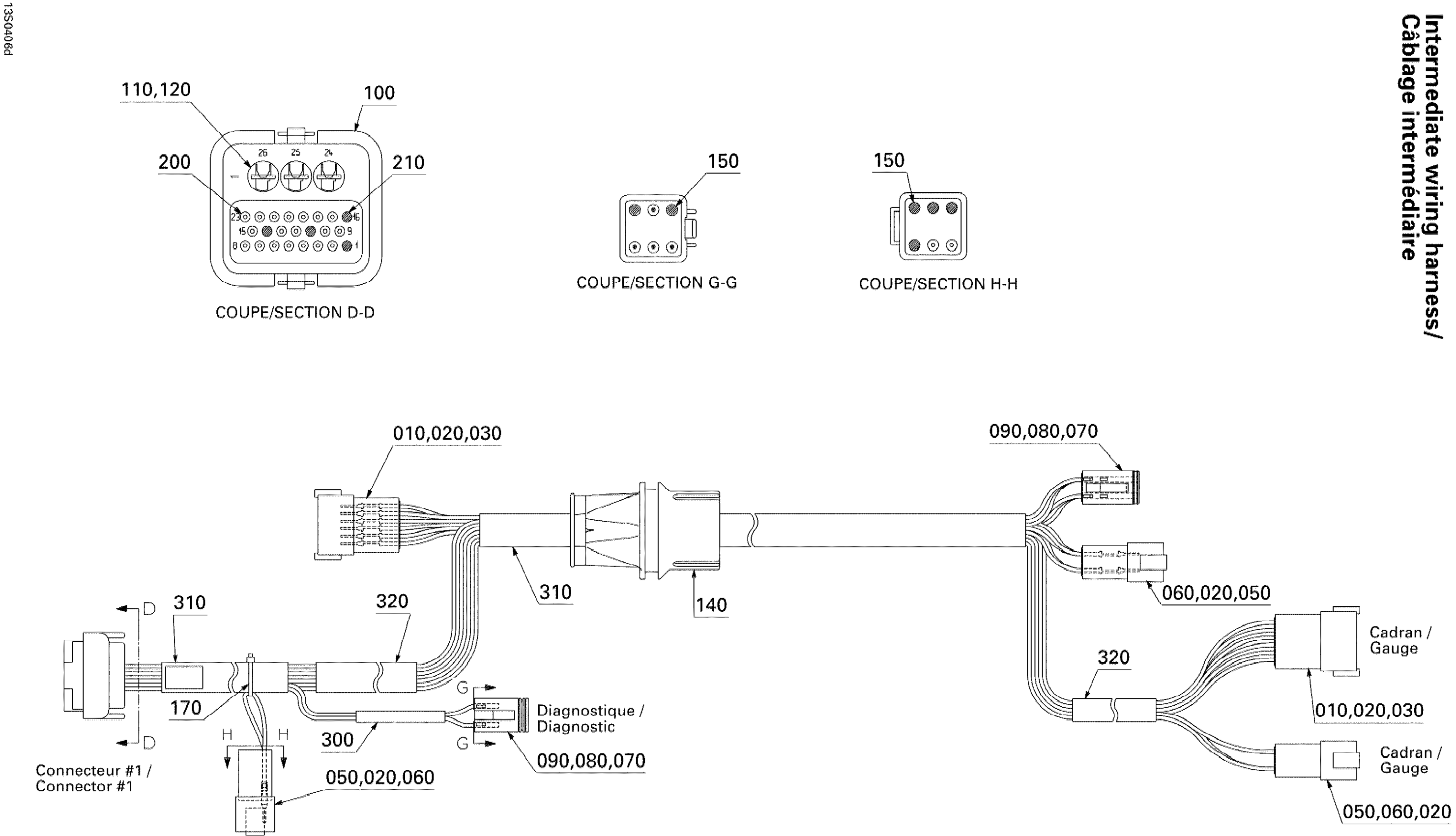

Sea-doo XP DI, 2004 10- Intermediate Wiring Harness Diagram

#

Description
Price

10

Intermediate Wiring Harness | Includes 10 to 320

278001880

Unavailable

10

Male Connector, 12 Circuits

409015800

Unavailable

20

Male Terminal

278000631

$4.39

30

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

50

Male Terminal Housing, 6 Circuits

710001539

$19.99

60

Female Lock, 6 Circuits

278000735

$3.19

70

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

80

Female Terminal

278000632

$2.09

90

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

100

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

110

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

120

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

140

Grommet

293720040

Unavailable

150

Sealing Cap

293000052

$3.19

170

Tie Wrap 142 mm

293750002

$1.25

200

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

210

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

300

Not Available As Spare Part - Friction Washer

Unavailable

310

Not Available As Spare Part - Friction Washer

Unavailable

320

Not Available As Spare Part - Friction Washer

Unavailable
