02- Throttle Body

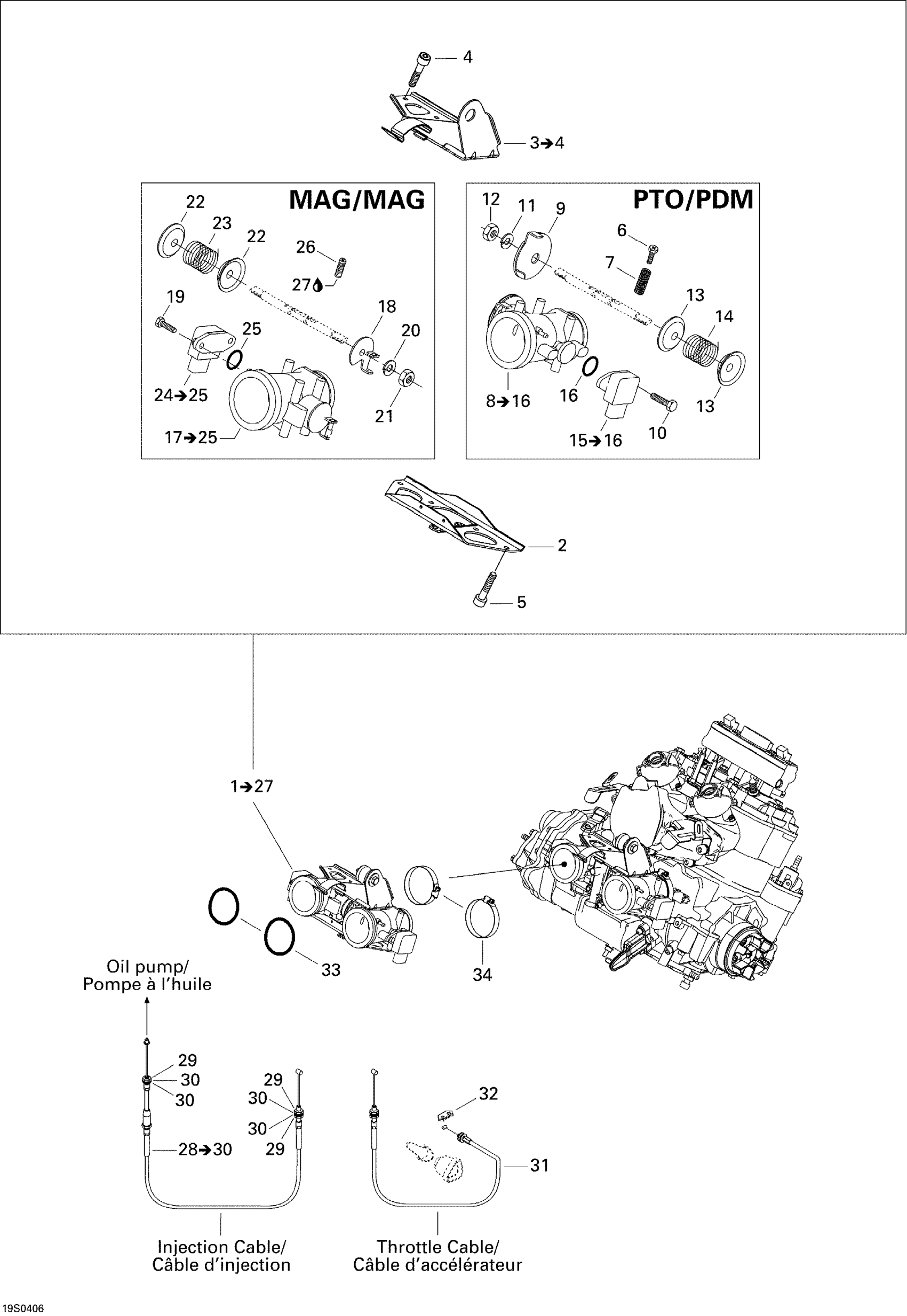

Sea-doo XP DI, 2004 02- Throttle Body Diagram
#
Description
Price
1
Throttle Body | Includes 1 to 26
270600058
Unavailable
2
LOWER SUPPORT - Call your local BRP dealership
270600069
Unavailable
3
Support Ass'y | Includes 3 to 4
270600070
Unavailable
4
LATCH BRACKET - Call your local BRP dealership
270600073
Unavailable
5
Socket Head Screw M5 X 10
205051060
$1.58
6
ADJUSTER SCREW - Call your local BRP dealership
270600074
Unavailable
7
Spring
270600075
Unavailable
8
PRIMARY THROTTLE BODY - Call your local BRP dealership | Includes 8 to 16
270600076
Unavailable
9
Throttle Lever Ass'y
270600077
Unavailable
10
POTENTIOMETER SCREW M4 - Call your local BRP dealership
270600078
Unavailable
11
Lock Washer Helical M6
234161601
$1.15
12
Hex. Nut M6
232061600
$1.15
13
GUIDE SPRING - Call your local BRP dealership
270600079
Unavailable
14
Spring
270600080
Unavailable
15
Position Sensor
420866120
$98.99
16
O-Ring
270000544
$4.65
17
SECONDARY THROTTLE BODY - Call your local BRP dealership | Includes 17 to 26
270600081
Unavailable
18
Pick-Up Lever
270600082
Unavailable
19
POTENTIOMETER SCREW M4 - Call your local BRP dealership
270600078
Unavailable
20
Lock Washer Helical M6
234161601
$1.15
21
Hex. Nut M6
232061600
$1.15
22
GUIDE SPRING - Call your local BRP dealership
270600079
Unavailable
23
Spring
270600083
Unavailable
24
Position Sensor
420866120
$98.99
25
O-Ring
270000544
$4.65
26
IDLE SCREW - Call your local BRP dealership
270600084
Unavailable
27
Cover, Loctite Ultra Grey
270600085
Unavailable
28
Injection Cable | Includes 28 to 30
270000546
$58.99
29
Hex. Nut M6
232160600
$1.15
30
Stainless Flat Washer M6
234061600
$0.33
31
THROTTLE CABLE - Call your local BRP dealership
277001197
Unavailable
32
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
33
O-Ring
293250065
Unavailable
34
Norma Clamp
293650079
$11.60
