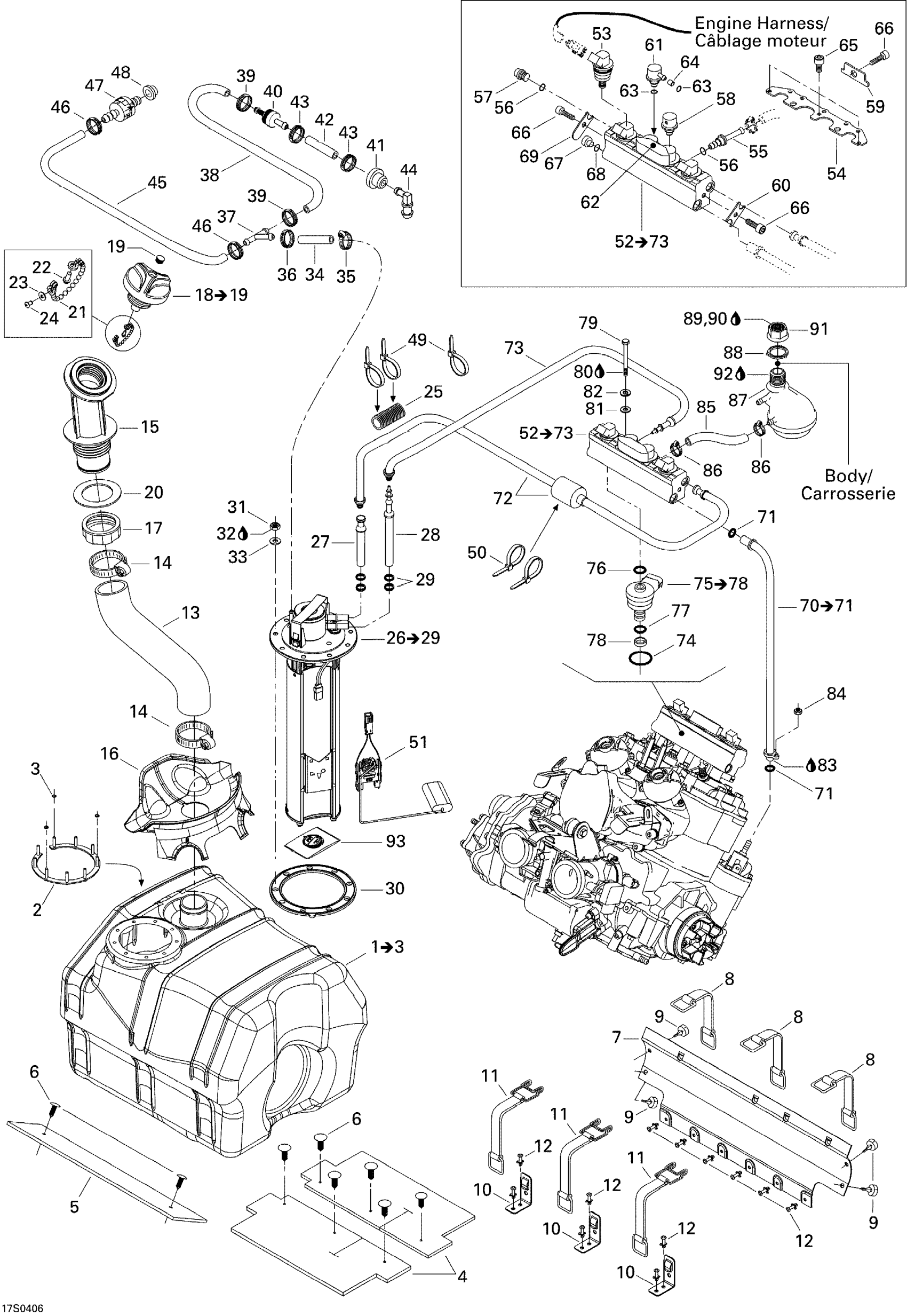

Sea-doo XP DI, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank | Includes 1 to 3

275500581

Unavailable

2

C-Ring, 9 Studs

275500679

$77.49

3

Push Nut

389804300

$0.53

4

Rubber Pad

293830087

Unavailable

5

Rubber Pad

293830102

Unavailable

6

Black, Dart

293730006

$0.99

7

Heat Shield

292000939

Unavailable

8

Fuel Tank Strap

293850036

$18.99

9

Rubber Stopper

293830064

Unavailable

10

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

11

Fuel Tank Strap

293850094

$22.49

12

Avdel Rivet 3/16"

293150037

$0.56

13

Filler Hose

275500584

Unavailable

14

Tridon Clamp

293650023

$13.49

15

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

16

Fuel Shield

275500589

Unavailable

17

Filler Neck Nut, Fuel

211100012

$14.22

18

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

19

Black, Snap Cap

293000034

$9.39

20

Gasket

293250017

Unavailable

21

Fuel Cap Chain

275500507

$17.59

22

Screw K40 X 10

241140060

$1.48

23

Flat Washer M3, Stainless

234032600

$0.55

24

Pop Rivet 1/8"

390407900

$1.49

25

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

26

FUEL MODULE ASS'Y - Call your local BRP dealership | Includes 26 to 29

275500622

Unavailable

27

Fuel Feeding Hose Ass'y

275500631

Unavailable

28

Fuel Return Hose Ass'y

275500632

Unavailable

29

Oetiker Clamp

293650011

$3.09

30

Gasket

293250088

$14.99

31

Hex. Flange Nut M5

250100071

$2.11

32

Loctite 243, 10 ml

293800060

$21.49

33

Rubber Washer

291001956

Unavailable

34

Was 275500549 Hose 1/4"

219704357

$194.99

35

Tridon Gear Clamp

293650170

$1.99

36

Oetiker Gear Clamp

293650025

$3.09

37

Y-Fitting

293710059

$9.69

38

Was 275500549 Hose 1/4"

219704357

$194.99

39

Oetiker Gear Clamp

293650025

$3.09

40

Check Valve

275500398

$10.99

41

Grommet

709200285

$9.69

42

Was 275500549 Hose 1/4"

219704357

$194.99

43

Oetiker Gear Clamp

293650025

$3.09

44

Elbow Male Connector

414580600

$4.23

45

Was 275500549 Hose 1/4"

219704357

$194.99

46

Oetiker Gear Clamp

293650025

$3.09

47

Check Valve

275500505

$31.99

48

Grommet

293720029

$1.59

49

Tie Wrap 368 mm

293750008

$1.04

50

Tie Wrap 368 mm

293750008

$1.04

51

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

52

Fuel Distributor Ass'y | Includes 52 to 73

275500628

Unavailable

53

Fuel Injector

275500460

$329.99

54

RETAINER PLATE - Call your local BRP dealership

275500543

Unavailable

55

AIR ADAPTER - Call your local BRP dealership

275500538

Unavailable

56

O-RING - Call your local BRP dealership

293300069

Unavailable

57

FUEL PLUG - Call your local BRP dealership

275500595

Unavailable

58

Air Regulator

275500463

Unavailable

59

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

60

RETAINER PLATE - Call your local BRP dealership

275500596

Unavailable

61

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

62

Cover

275500449

Unavailable

63

O-Ring

293300072

Unavailable

64

SPACER - Call your local BRP dealership

275500465

Unavailable

65

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

66

Socket Head Screw M6 X 12

205061260

$1.58

67

AIR PLUG - Call your local BRP dealership

275500597

Unavailable

68

O-Ring

275500598

Unavailable

69

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

70

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

71

O-Ring

293300070

Unavailable

72

FUEL FEEDING HOSE ASS'Y - Call your local BRP dealership

275500629

Unavailable

73

Fuel Return Hose Ass'y

275500630

Unavailable

74

O-Ring

293300083

Unavailable

75

Air Injector | Includes 45 to 48

275500633

$329.99

76

O-Ring

293300084

Unavailable

77

O-Ring

293300076

Unavailable

78

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

79

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

80

Loctite 243, 10 ml

293800060

$21.49

81

Stainless, Flat Washer 8 mm

234081600

$0.55

82

Lock Washer 8 mm, Stainless

234181601

$0.55

83

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

84

Hex. Elastic Stop Nut M6

232561600

$1.15

85

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

86

Tridon Gear Clamp

293650170

$1.99

87

Noise Reducer

270000569

Unavailable

88

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

89

Was 293800041 Loctite Primer 7649

219704458

$39.99

90

Loctite 243, 10 ml

293800060

$21.49

91

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

92

Silicone Sealant 51388, 300 ml

296000309

$36.99

93

Fuel Filter, Bosch

219700368

$39.99
