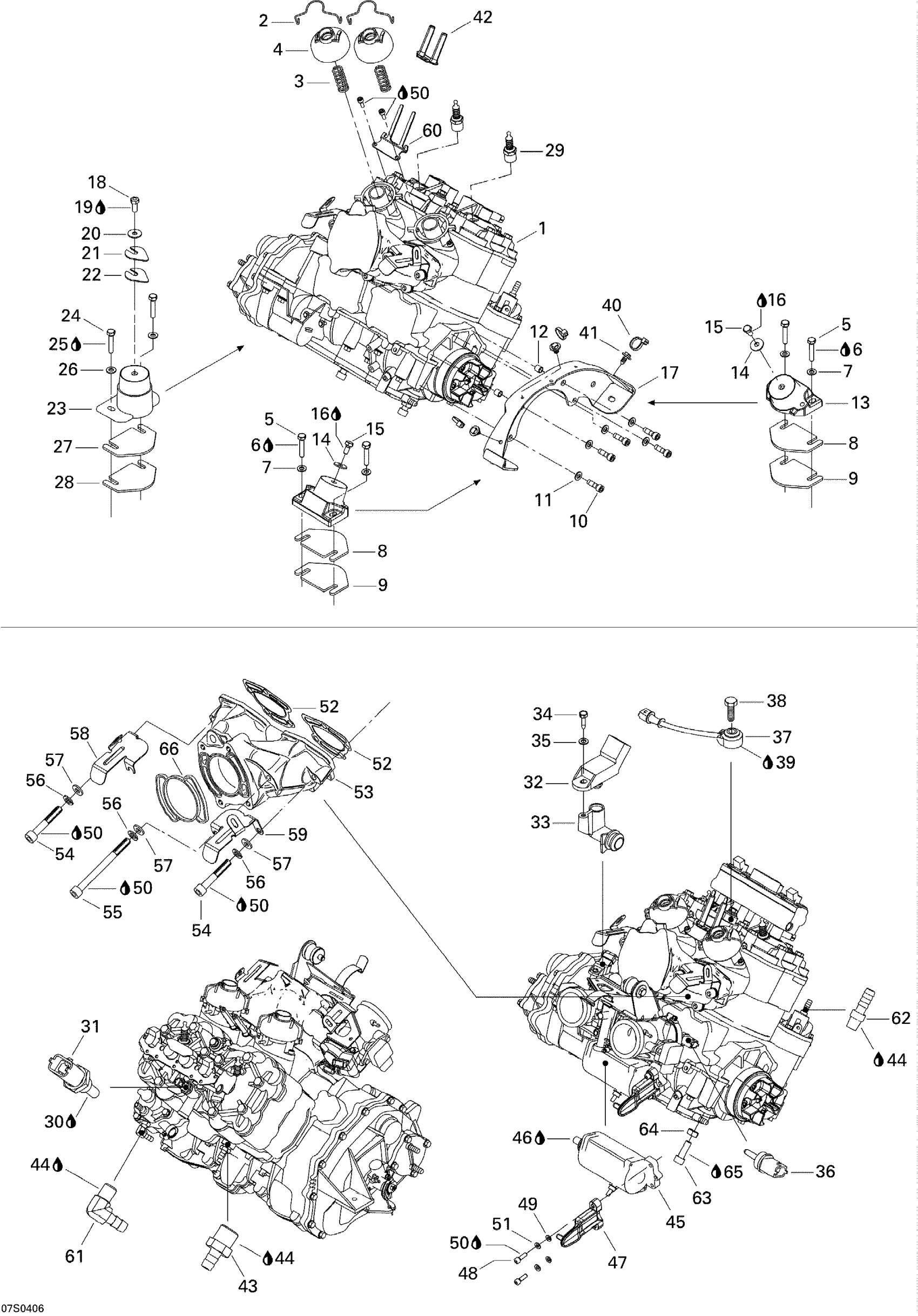

Sea-doo XP DI, 2004 Engine Diagram

#

Description
Price

1

Rotax Engine 947-Di

270000600

Unavailable

2

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

3

COMPRESSION SPRING - Call your local BRP dealership

420939130

Unavailable

4

Valve Cover

420911557

Unavailable

5

Hex. Screw M8 X 40

207184060

$2.22

6

Loctite 243, 10 ml

293800060

$21.49

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Shim 0.3 mm

270000122

Unavailable

9

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

10

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

11

Stainless, Flat Washer 8 mm

234081600

$0.55

12

BUSHING - Call your local BRP dealership

270000453

Unavailable

13

Rubber Mount, Black

270000421

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Hex. Screw M8 X 16

207181660

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Engine Support, Black

270000515

Unavailable

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Flat Washer 8 mm, Stainless

234082600

$2.43

21

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

22

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

23

Rubber Mount, Black

270000430

Unavailable

24

Hex. Screw M8 X 40

207184060

$2.22

25

Loctite 243, 10 ml

293800060

$21.49

26

Stainless, Flat Washer 8 mm

234081600

$0.55

27

Shim 0.3 mm

270000122

Unavailable

28

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

29

Spark Plug NGK Zfr4f-11

278001650

$6.35

30

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

31

Temperature Sensor

278002895

$39.99

32

Pressure Sensor

270600040

$199.99

33

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

34

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

35

Flat Washer | XT

211200035

$0.55

36

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

37

Noise Sensor

270000484

$82.99

38

Hex. Screw M8 X 30

207183060

$1.58

39

Loctite 243, 10 ml

293800060

$21.49

40

Tie-Rap 180 mm

414115200

$0.11

41

Mount Dart

293730040

$1.04

42

INSULATOR - Call your local BRP dealership

278001512

Unavailable

43

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

44

Was 293800013 Loctite 56765

219704454

$65.99

45

Starter Ass'y, Black

278001937

$265.99

46

Synthetic Grease, 400 G

293550010

Unavailable

47

AIR SILENCER SUPPORT - Call your local BRP dealership

273000227

Unavailable

48

Socket Head Screw M6 X 35

205063560

$2.22

49

Stainless Flat Washer M6

234061600

$0.33

50

Loctite 243, 10 ml

293800060

$21.49

51

Lock Washer Helical M6

234161601

$1.15

52

EXHAUST MANIFOLD GASKET - Call your local BRP dealership

420931653

Unavailable

53

Exhaust Manifold

420979607

$399.99

54

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

55

SOCKET HEAD SCREW M10 X 110 - Call your local BRP dealership

420941483

Unavailable

56

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

57

Flat Washer 10 mm, Stainless

234000600

$1.46

58

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

Unavailable

59

Duct Support, PTO

273000169

Unavailable

60

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

61

Elbow Fitting

293700016

Unavailable

62

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

63

Socket Screw M10 X 30

205003060

Unavailable

64

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

65

Loctite 271, 10 ml

293800005

$26.99

66

EXHAUST GASKET - Call your local BRP dealership

420931990

Unavailable
