01- Crankshaft And Pistons

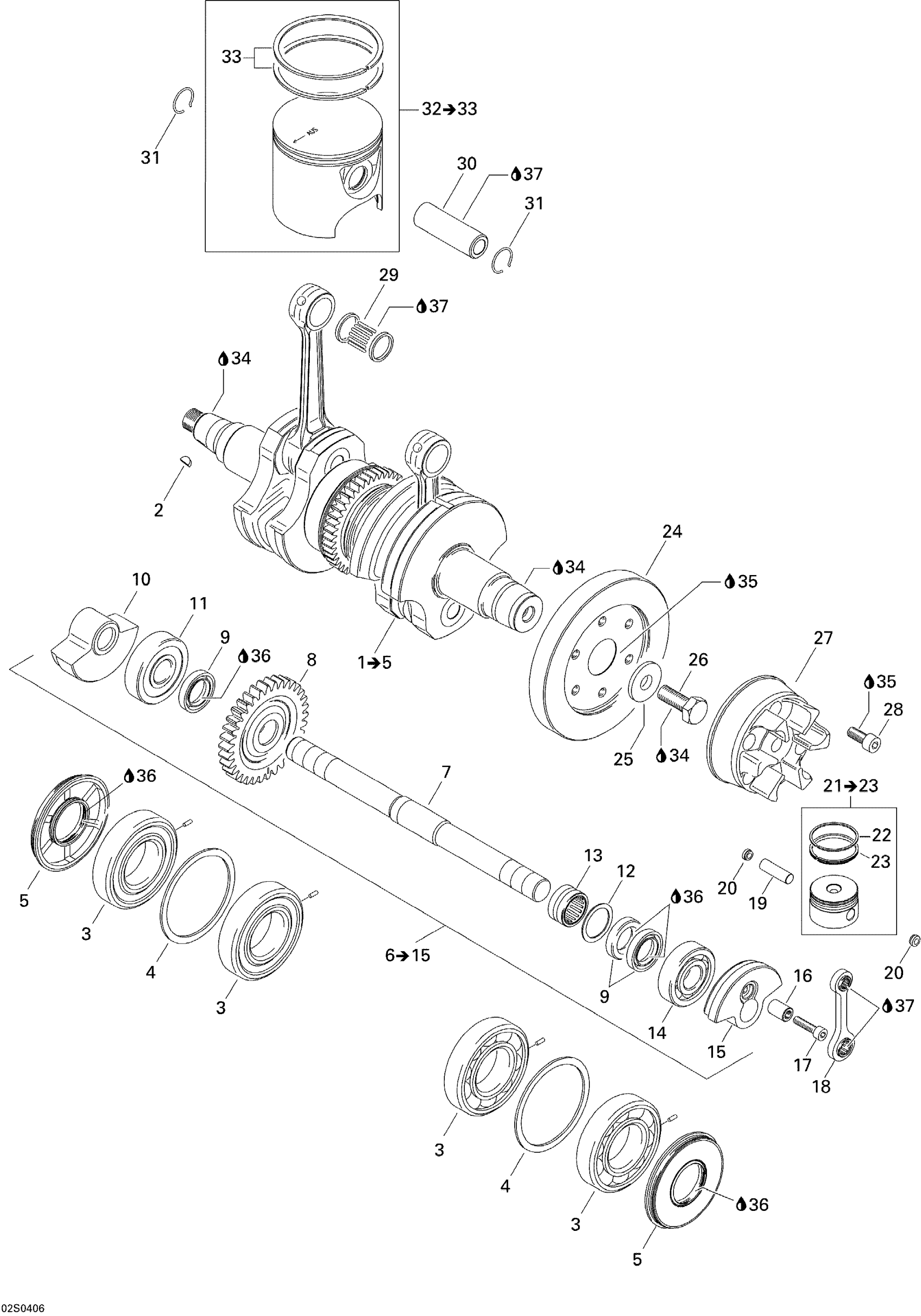

Sea-doo XP DI, 2004 01- Crankshaft And Pistons Diagram
#
1
Crankshaft Ass'y | Includes 1 to 5
420887767
Unavailable
2
Woodruff Key
420246055
$2.43
3
Bearing_Ball - Call your local BRP dealership
420432271
Unavailable
4
Washer
420926190
$11.63
5
OIL SEAL - Call your local BRP dealership
420931731
Unavailable
6
Shaft Balance Ass‘y | INCLUDES 10 TO 18
420837445
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
BALL BEARING 6304 - Call your local BRP dealership
420932097
Unavailable
12
Washer
420927192
Unavailable
13
NEEDLE BEARING - Call your local BRP dealership
420232555
Unavailable
14
Ball Bearing 6304
420932096
Unavailable
15
MASS BALANCE - Call your local BRP dealership
420818955
Unavailable
16
COMPRESSOR PIN - Call your local BRP dealership
420921460
Unavailable
17
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership
420640690
Unavailable
18
CONROD ASS?Y - Call your local BRP dealership
420917505
Unavailable
19
PISTON PIN 9 X 30 - Call your local BRP dealership
420916430
Unavailable
20
DISTANCE BUSHING - Call your local BRP dealership
420847940
Unavailable
21
PISTON ASS?Y 38.95 MM - Call your local BRP dealership | Includes 24 to 26
420888550
Unavailable
22
RECTANGULAR RING - Call your local BRP dealership
420215970
Unavailable
23
OIL SCRAPER RING - Call your local BRP dealership
420215960
Unavailable
24
COUPLING - Call your local BRP dealership
420958083
Unavailable
25
WASHER - Call your local BRP dealership
420827782
Unavailable
26
HEX. SCREW M12 X 30 - Call your local BRP dealership
420640120
Unavailable
27
COUPLING - Call your local BRP dealership
420958137
Unavailable
28
Socket Screw M8 X 30
205083060
$2.96
29
Bearing_Needle This part replaces 420832552.
420832553
$30.49
30
Piston Pin
420916397
Unavailable
31
CIRCLIP - Call your local BRP dealership
420845465
Unavailable
32
PISTON WITH 2 RINGS 87,88 MM - Call your local BRP dealership | Includes 33 to 34
420889045
Unavailable
32
PISTON OVERSIZE 88,13 MM - Call your local BRP dealership | Includes 33 to 34
420889046
Unavailable
33
RECTANGULAR RING - Call your local BRP dealership
420815267
Unavailable
33
RECTANGULAR RING, OVERSIZE - Call your local BRP dealership
420815268
Unavailable
34
Loctite 243, 10 ml
293800060
$21.49
35
Sealant Loctite 648
219703000
$45.99
36
Dow Corning 111, 150 g
413707000
$59.99
37
Not Available As Spare Part - Friction Washer
Unavailable
