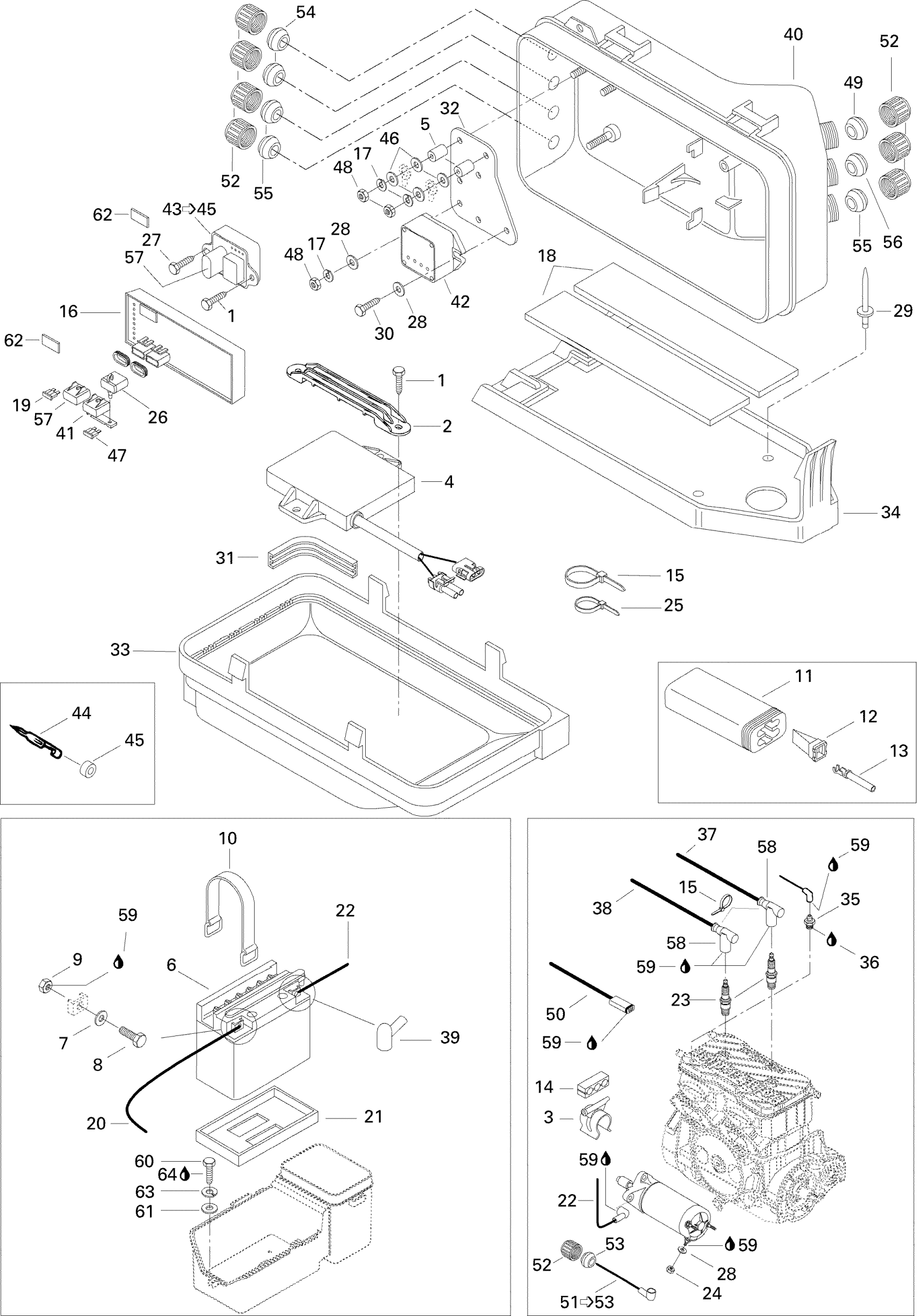

Sea-doo XP, 5858, 1996 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6.3 x 16

211000012

Unavailable

2

Module Support

278000611

Unavailable

3

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

4

Electronic Module Ass‘y (Cover)

278000858

Unavailable

5

Spacer

278000644

Unavailable

6

Battery 19A | Includes 5 to 8

278001756

$153.36

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Screw M6 X 16

207161644

$0.74

9

Hex. Nut M6

232061414

$0.53

10

STRAP - Call your local BRP dealership

293850031

Unavailable

11

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

12

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

13

Female Terminal

278000632

$2.09

14

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

15

Tie Wrap 142 mm

293750002

$1.25

16

Electronic Module Ass'y (Base) | Includes 19,26,41,47,57

278000510

Unavailable

17

Lock Washer Helical M6

234161601

$1.15

18

Rubber Strip

293830012

Unavailable

19

Fuse, 15 Amperes

278000343

$3.28

20

Engine Harness | RX DI 5591/5592.

278000511

Unavailable

21

Battery Lower Pad

278000776

Unavailable

22

Battery Ground Cable

278000512

Unavailable

23

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Fuse Holder

278000379

Unavailable

27

Self Tapping Screw M6.3 x 25

215462550

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Avdel Rivet 3/16"

293150037

$0.56

30

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

31

Gasket

278000181

Unavailable

32

Mounting Plate

278000615

Unavailable

33

Electric Box Cover

278000786

Unavailable

34

Box Support

278000780

Unavailable

35

Temperature Sensor

278000194

Unavailable

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

37

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

38

Spark Plug Wire 530 (MAG)

278000322

Unavailable

39

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

40

Electric Box Base

278000781

Unavailable

41

Fuse Holder Cap

278001326

$7.69

42

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

43

Relay Ass‘y | Includes 35 to 37

278000656

Unavailable

44

Male Terminal

278000230

$4.39

45

Insulation Sheath

278000231

$5.08

46

Stainless Flat Washer M6

234061600

$0.33

47

Fuse, 5 Amperes | CE

278000344

$3.28

48

Hex. Nut M6

232061600

$1.15

49

Grommet

293720034

Unavailable

50

Engine Harness (Includes 11,12,13,52,55)

278000449

Unavailable

51

Starter Cable (Red) | Includes 63 - 66.

278000444

Unavailable

52

Electric Wire Cap

278000100

Unavailable

53

GROMMET - Call your local BRP dealership

278000098

Unavailable

54

Grommet (4 Ways)

278026800

Unavailable

55

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

56

Grommet, 1 Circuit, Blue

293720030

Unavailable

57

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

58

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

59

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

60

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

61

Flat Washer 5 mm, Stainless

234052600

$0.77

62

Cushion

278000805

$3.28

63

Helical Lock Washer M5

234151601

$1.15

64

Loctite 243, 10 ml

293800060

$21.49
