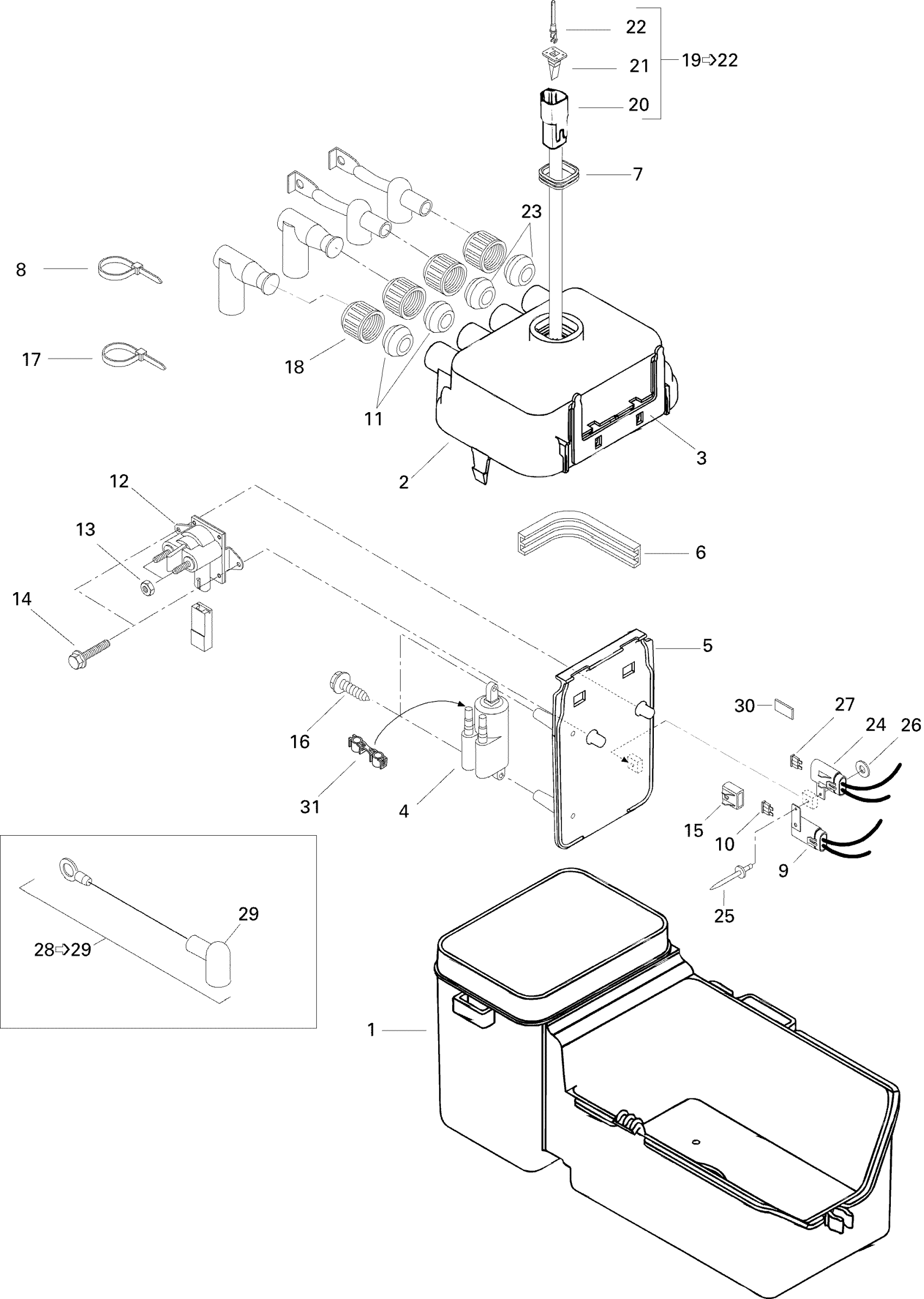

Sea-doo XP, 5858, 1996 Electrical Box Diagram

#

Description
Price

1

BASE - Call your local BRP dealership

278000824

Unavailable

2

Cover | GTI 5641.

278000825

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil

278000383

$99.49

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

$1.25

9

Fuse Harness 7.5 Amp | Includes 83 - 89.

278000666

Unavailable

10

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

11

Grommet

278000682

Unavailable

12

Starter Relay

278003012

$42.49

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Hex. Flange Screw M6 X 10

210261040

$1.48

15

Fuse Holder Cap

278001326

$7.69

16

Self Tapping Screw M6.3 x 25

215462550

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Electric Wire Cap

278000100

Unavailable

19

Rear Electric Box Harness | Includes 22 - 29.

278000663

Unavailable

20

Male Terminal Housing, 6 Circuits

710001539

$19.99

21

Female Lock, 6 Circuits

278000735

$3.19

22

Male Terminal

278000631

$4.39

23

GROMMET - Call your local BRP dealership

278000098

Unavailable

24

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

25

Pop Rivet 3/16"

293150014

$1.09

26

Flat Washer, Emhart

213200016

$0.72

27

Fuse, 15 Amperes

278000343

$3.28

28

Ground Harness | Includes 82 - 84.

278000664

Unavailable

29

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

30

Cushion

278000805

$3.28

31

Plastic Clip, Spark Plug Wire

410914600

$5.61
