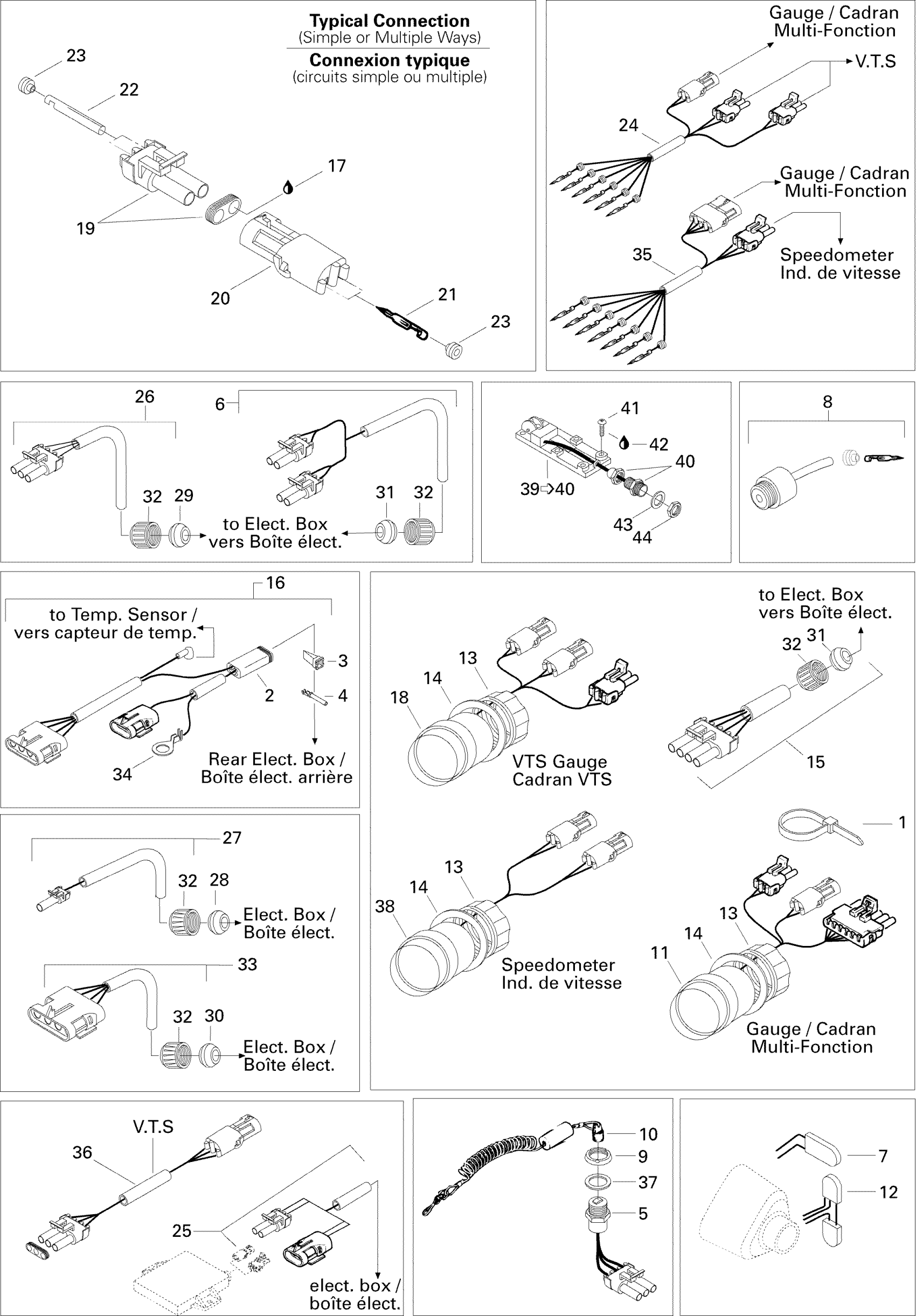

Sea-doo XP, 5858, 1996 Electrical Accessories Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

1

Tie Wrap 142 mm

293750002

$1.25

1

Tie-Rap 180 mm

414115200

$0.11

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

3

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

4

Female Terminal

278000632

$2.09

5

Safety Switch | Includes 22 - 25.

278000830

Unavailable

6

Buzzer-On/Off Switch Harness | Includes 1 - 9.

278000659

Unavailable

7

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

8

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

9

Safety Nut (DESS Switch)

278002963

$3.28

10

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

11

Oil / Fuel Level Gauge | Includes 30 to 36

278000502

Unavailable

12

VTS Switch Ass'y

278000447

Unavailable

13

Gauge Nut

278000085

Unavailable

14

Gasket

278000259

Unavailable

15

4 Ways Harness (Oil/Fuel Gauge) | Includes 19d,22b,23a,31,32

278000683

Unavailable

16

Intermediate Harness | Includes 68 - 79. SPX 5661/5834.

278000662

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

VTS Gauge | Includes 21 - 26.

278000451

Unavailable

19

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

19

Male Connector, 2 Circuits

278000220

$15.49

19

Male Housing, 3 Circuits

278000273

$9.59

19

Male Housing, 4 Circuits

278000395

$15.99

19

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

20

Female Housing, 1 Circuit

278000161

$9.59

20

Female Housing, 2 Circuits

278000217

$9.59

20

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

20

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

20

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

21

Male Terminal

409004300

$5.61

21

Male Terminal | XT Models

278000222

$3.19

21

Male Terminal

278000230

$4.39

22

Female Terminal

409007300

$0.45

22

Female Terminal

278000223

$3.19

23

Wire Seal

278000218

$4.39

23

Wire Seal

278001065

$7.69

24

6 Circuits Harness

278000827

Unavailable

25

Harness 2 Ways (Incl. 14b)

278000660

Unavailable

26

Harness for Anti-Theft | Includes 22 - 31.

278000658

Unavailable

27

1 Circuit Harness

278000671

Unavailable

28

Grommet, 1 Circuit, Blue

293720030

Unavailable

29

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

30

Grommet

293720034

Unavailable

31

Grommet, 4 Circuit, Red

570026800

Unavailable

32

Electric Wire Cap

278000100

Unavailable

33

Female Terminal | Includes 2d,3a,3b,5a,10,11d

278000661

Unavailable

34

Open Barrel

278000992

$2.21

35

Rear Harness 7 Ways | Includes 19c,20d,21b,22b,23a

278000828

Unavailable

36

Harness (3 Ways)

278000829

Unavailable

37

WASHER - Call your local BRP dealership

211200027

Unavailable

38

Speedometer

278000862

Unavailable

39

Speed Sensor | Includes 47 to 48

278000583

Unavailable

40

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

41

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

44

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable
