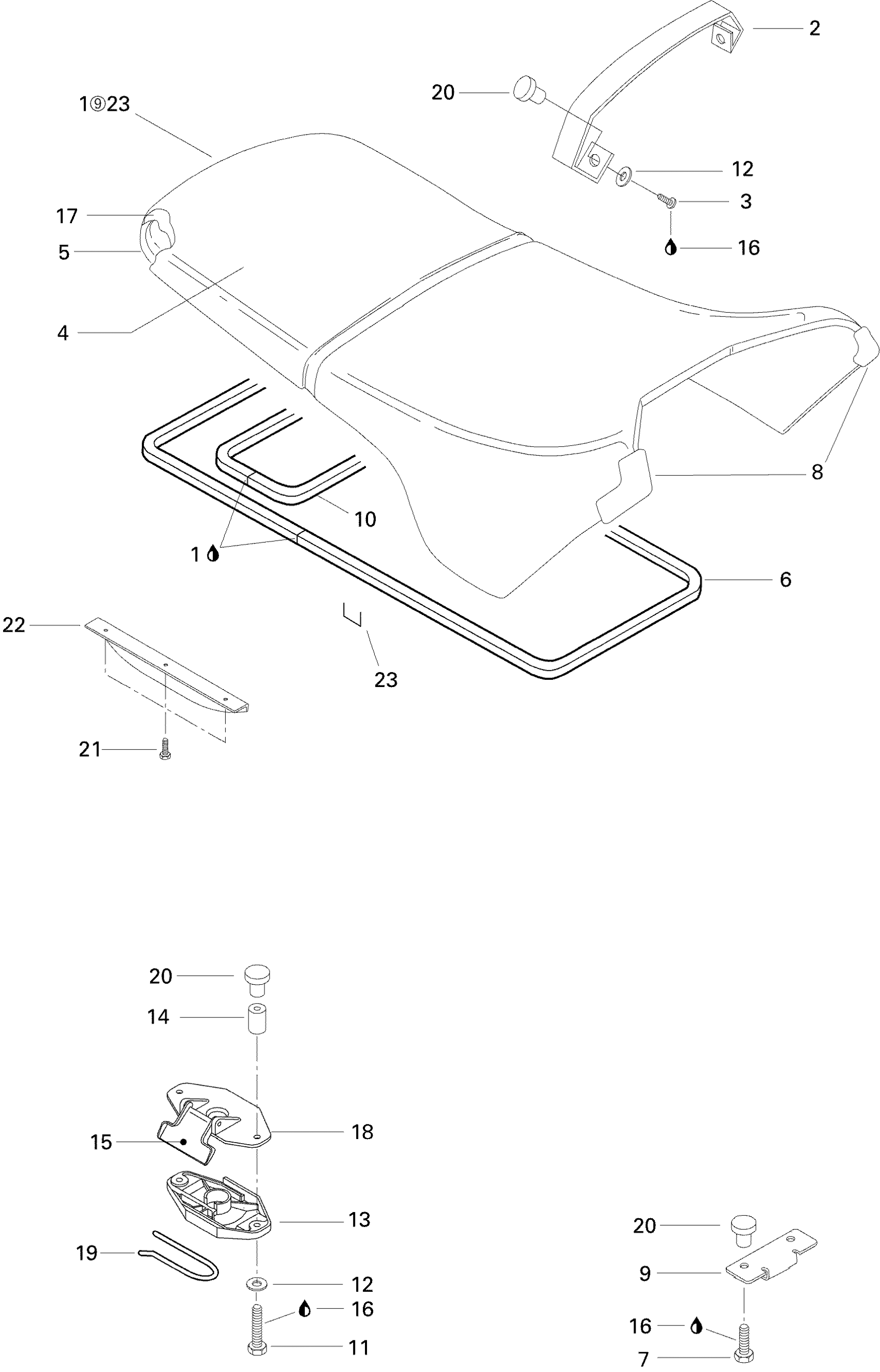

Sea-doo XP, 5858, 1996 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 23

269000317

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Strap (Yellow)

269000191

Unavailable

3

Socket Screw Button Head M6 X 10 | DS 650

250000436

$1.74

4

Seat Cover (Yellow)

269000319

Unavailable

5

Seat Base Ass'y (Incl. 6,10) | SPX 5661/5834.

295500366

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$118.27

7

Hex. Screw M6 x 12

210000011

Unavailable

8

Corner Seat RH (Yellow)

269000174

Unavailable

8

Corner Seat LH (Yellow)

269000175

Unavailable

9

Base Keeper

291000174

$15.57

10

Was 293200017 Neoprene Seal

219704365

$118.27

11

Hex. Screw M6 X 35

207163560

$1.17

12

Stainless Flat Washer M6

234061600

$0.25

13

Latch Ass'y

269700109

$20.12

14

SPACER - Call your local BRP dealership

291000532

Unavailable

15

Latch Ass'y

269700109

$20.12

16

Loctite 243, 10 ml

293800060

$20.77

17

Seat Foam

269000078

Unavailable

18

Latch Ass'y

269700109

$20.12

19

Latch Spring

269700017

$7.27

20

Nut Welded, M6

293100003

$6.32

21

Screw (For Plastic)

211000034

Unavailable

22

Protection Plate

269000173

Unavailable

23

Staple

293730005

Unavailable
