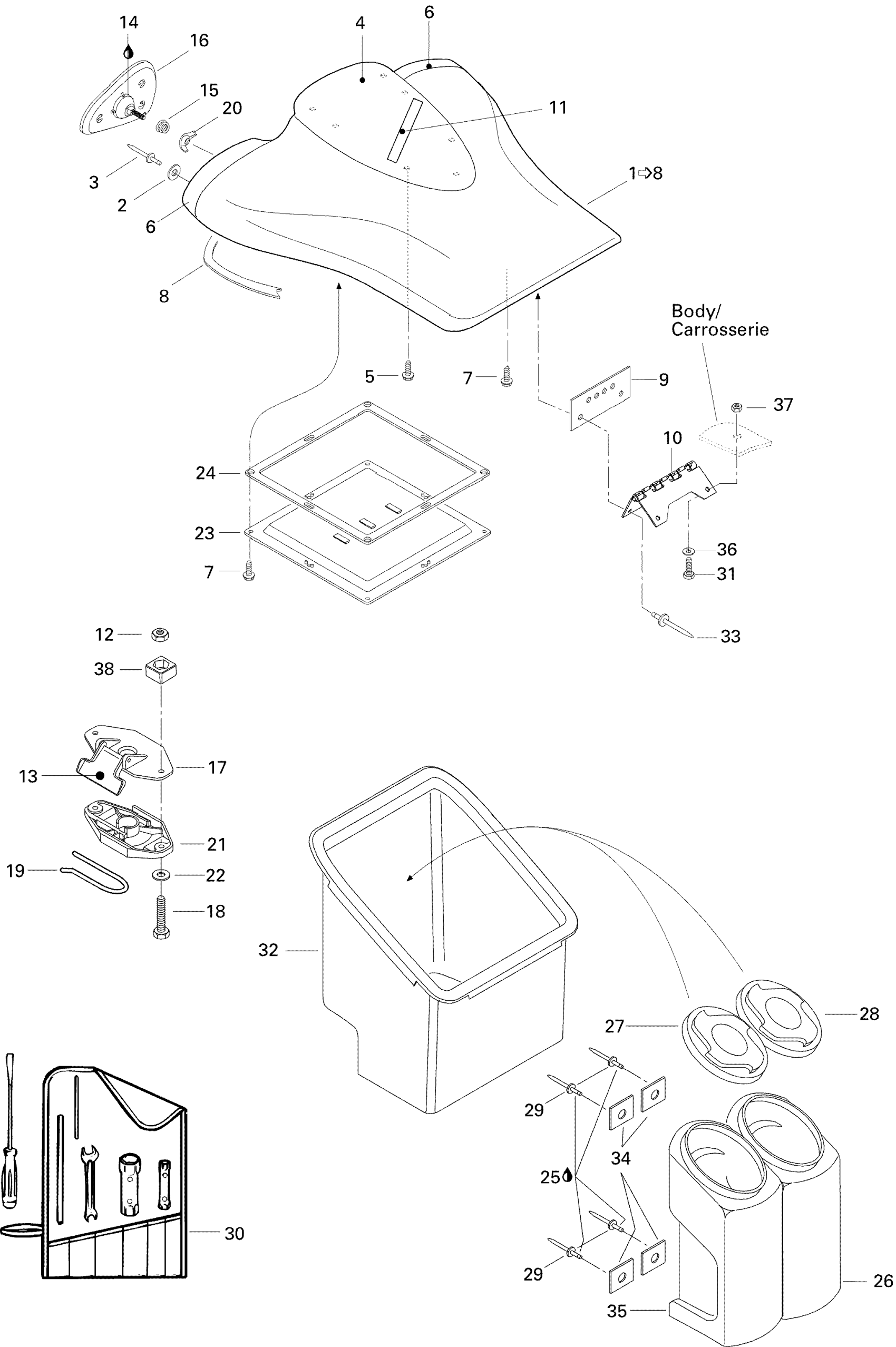

Sea-doo XP, 5858, 1996 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover Kit | Includes 11 to 20 and 55

295500244

Unavailable

2

Flat Washer, Emhart

213200016

$0.66

3

Pop Rivet 3/16"

293150008

$0.40

4

DEFLECTOR (YELLOW) - Call your local BRP dealership

269500171

Unavailable

5

Screw K40 X 10

241140060

$1.25

6

RH Mirror Housing

269500172

Unavailable

6

LH Mirror Housing

269500173

Unavailable

7

Hex. Flange Screw K40 X 16

241141660

$1.25

8

Seal Tray 1000Mm Long

219704368

$12.30

9

Retainer Plate

269500107

Unavailable

10

Stainless Hinge

269500112

Unavailable

11

«Sea-Doo / XP» Identification Decal

219900748

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$0.92

13

Latch Ass'y

269700109

$20.12

14

Synthetic Grease, 400 G

293550010

Unavailable

15

Mirror Spring

269500082

Unavailable

16

RH Mirror | Includes 3 to 4

269500055

Unavailable

16

LH Mirror | Includes 3 to 4

269500056

Unavailable

17

Latch Ass'y

269700109

$20.12

18

Hex. Screw M6 X 35

207163560

$1.17

19

Latch Spring

269700017

$7.27

20

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

21

Latch Ass'y

269700109

$20.12

22

Stainless Flat Washer M6

234061600

$0.25

23

ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 29 to 30

269500241

Unavailable

24

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$35.72

26

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

27

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

28

Storage Housing Cap

269500237

Unavailable

29

Rivet

293150017

Unavailable

30

Tool Kit

295000066

Unavailable

31

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

32

STORAGE TRAY - Call your local BRP dealership

269501940

$47.73

33

Pop Rivet 3/16"

293150039

$1.31

34

GASKET - Call your local BRP dealership

293250037

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

36

Flat Washer M5, Stainless

234051600

$0.64

37

Hex. Elastic Nut M5 | X

232551600

$0.91

38

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43
