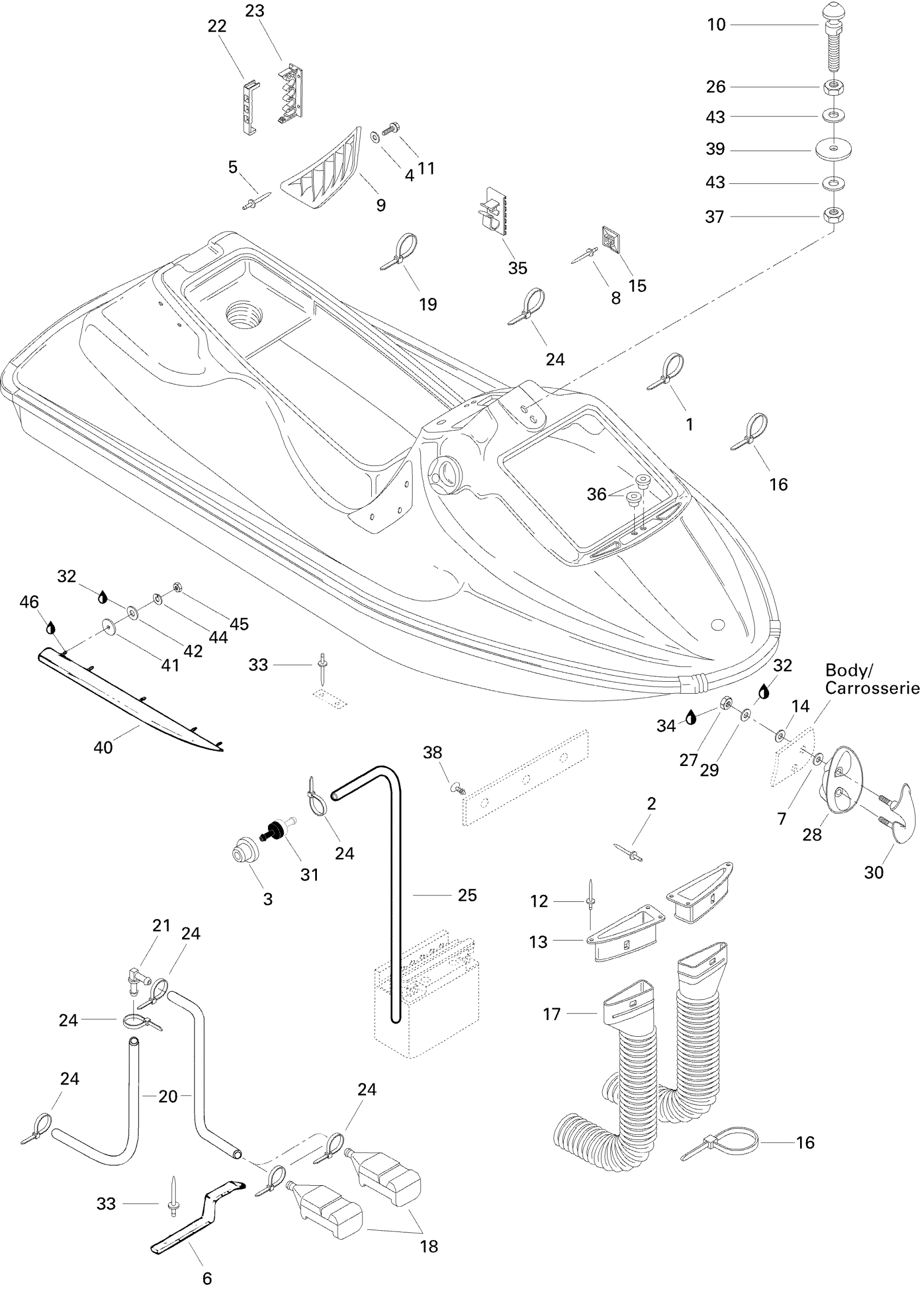

Sea-doo XP, 5858, 1996 Body, Front View Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

2

RIVET_BULBEX 4.0 X 21.2 - Call your local BRP dealership

293150034

Unavailable

3

Grommet

293720029

$1.59

4

Flat Washer 4 mm, Stainless

234042600

$1.15

5

Pop Rivet 1/8

293150041

Unavailable

6

RH Spring Clip

292000227

Unavailable

6

LH Spring Clip

292000228

Unavailable

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

Pop Rivet 1/8''

293150033

Unavailable

9

RH Intake Grill (Black) | SPX 5661/5834.

291000700

Unavailable

9

LH Intake Grill (Black)

291000701

Unavailable

10

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Pop Rivet 1/8”

293150015

$0.40

13

RH Adapter Vent

291000380

Unavailable

13

LH Adapter Vent

291000381

Unavailable

14

Rubber Washer

293830037

$2.68

15

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

16

Tie Wrap 368 mm

293750008

$1.04

17

LH Tube Vent

291000382

Unavailable

17

RH Tube Vent

291000383

Unavailable

18

Screen Bailer

292000079

Unavailable

19

Tie Wrap 142 mm

293750002

$1.25

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

Tie Mount Top

293750012

Unavailable

23

Tie Mount

293750013

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

Hex. Jam Nut M10

232100600

$2.22

27

Hex. Elastic Nut M8

232581600

$1.48

28

Shell (Yellow)

292000223

Unavailable

29

Flat Washer 8 mm, Stainless

234082600

$2.43

30

Bow-Eye (Yellow)

292000222

Unavailable

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Avdel Rivet 3/16"

293150037

$0.56

34

Loctite 271, 10 ml

293800005

$26.99

35

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

36

GROMMET - Call your local BRP dealership

293720017

Unavailable

37

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

38

Black, Dart

293730006

$0.99

39

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

40

RH Sponson (Black)

292000229

Unavailable

40

LH SPONSON (BLACK) - Call your local BRP dealership

292000230

Unavailable

41

GASKET - Call your local BRP dealership

293250026

Unavailable

42

Flat Washer M6, Stainless

234062600

$0.77

43

Flat Washer 10 mm, Stainless

234002600

$2.22

44

Lock Washer Helical M6

234161601

$1.15

45

Hex. Nut M6

232061600

$1.15

46

Loctite 243, 10 ml

293800060

$21.49
