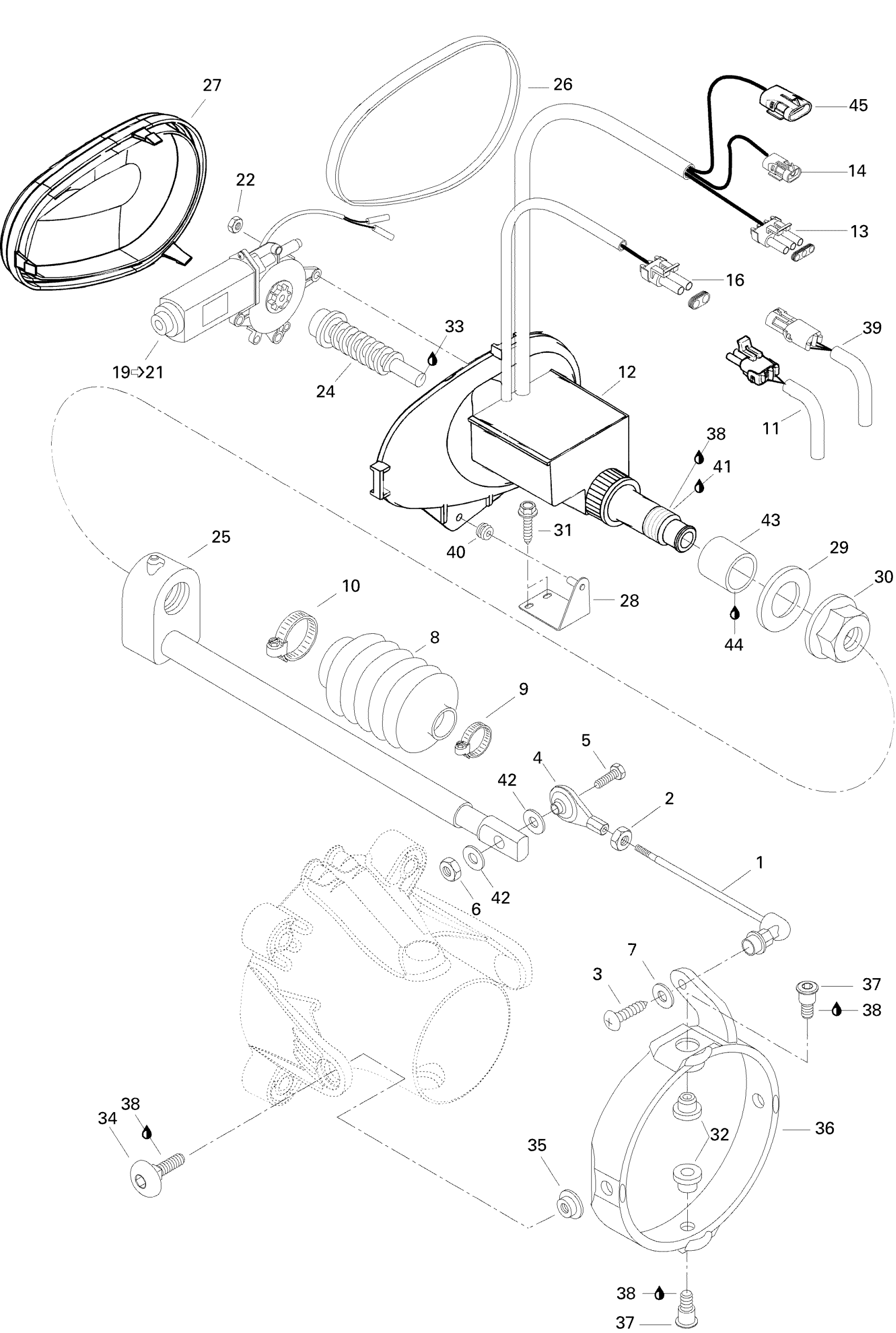

Sea-doo XP, 5858, 1996 Trim, Electrical Diagram

#

Description
Price

1

Moulding Rod

271000555

Unavailable

2

Hex. Nut

212100005

$1.35

3

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

4

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

5

Hex. Screw M6 X 35

207063560

$2.22

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

Protector Hose

271000459

$17.49

9

Tridon Gear Clamp

293650171

$3.09

10

Tridon Gear Clamp

293650051

$4.19

11

Intermediate Harness | Includes 68 - 79. SPX 5661/5834.

278000662

Unavailable

12

VTS Housing

278000668

Unavailable

13

Male Housing, 3 Circuits

278000273

$9.59

14

Female Housing, 1 Circuit

278000161

$9.59

15

Male Terminal | XT Models

278000222

$3.19

16

Male Connector, 2 Circuits

278000220

$15.49

17

Female Terminal

278000223

$3.19

18

Wire Seal

278000218

$4.39

19

Windshield Motor

278002579

$234.99

20

Insulation Sheath

278000231

$5.08

21

Male Terminal

278000230

$4.39

22

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Worm Screw

278000428

$14.30

25

Sliding Block Ass’y

278001698

$43.99

26

GASKET - Call your local BRP dealership

293200027

Unavailable

27

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

28

V.T.S. SUPPORT ASSY - Call your local BRP dealership

292000250

Unavailable

29

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

30

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

31

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

32

Venturi Bushing

293900007

$5.45

33

Synthetic Grease, 400 G

293550010

Unavailable

34

Screw

211000007

Unavailable

35

Venturi Bushing

271000321

$8.69

36

Trimming Ring

271000461190

Unavailable

37

Socket Head Screw M8 x 10

211000089

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

Harness (3 Ways)

278000829

Unavailable

40

GROMMET - Call your local BRP dealership

293720015

Unavailable

41

Was 293800041 Loctite Primer 7649

219704458

$39.99

42

Stainless Flat Washer M6

234061600

$0.33

43

Spacer

278000814

Unavailable

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

Female Housing, 2 Circuits

278000217

$9.59
