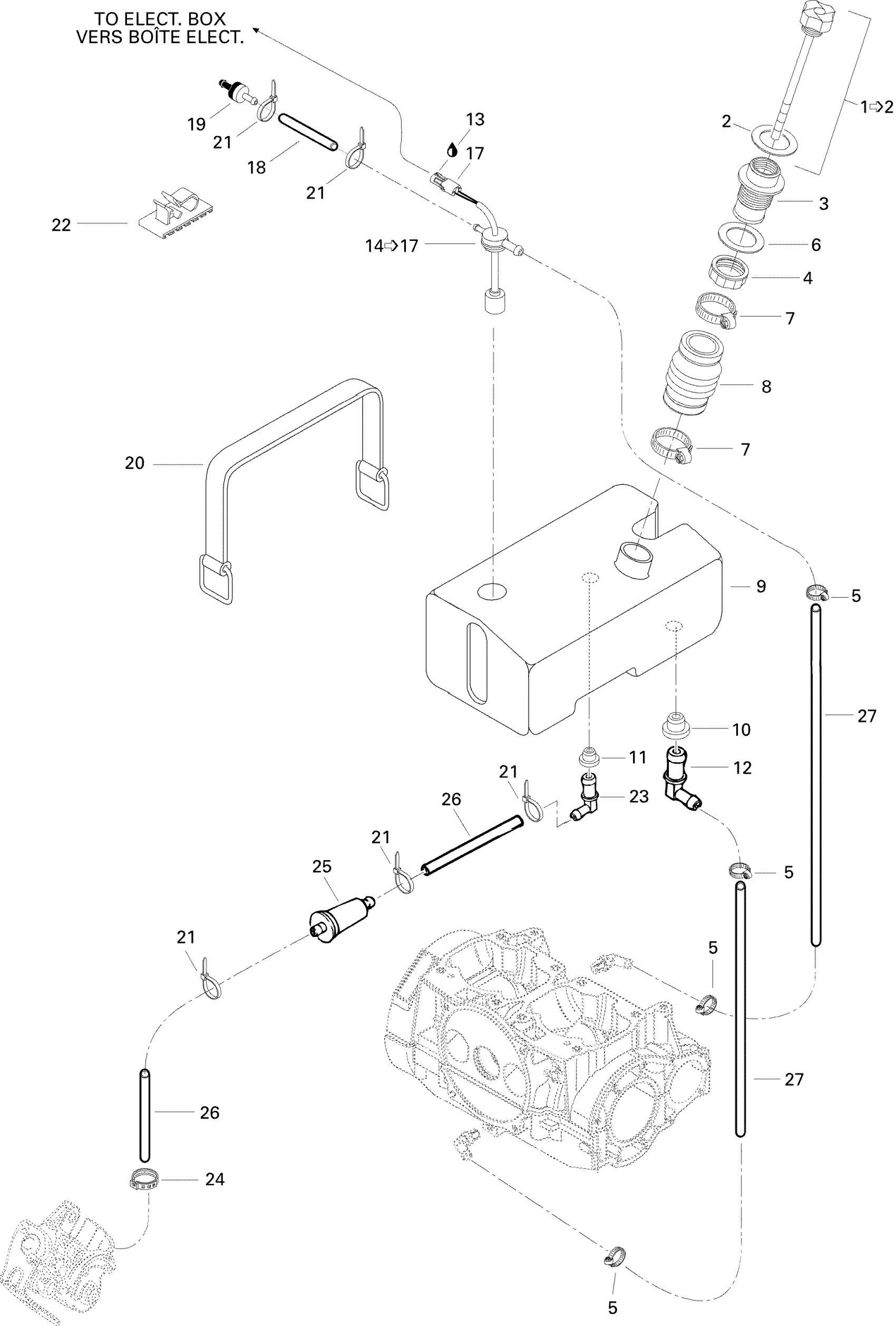

Sea-doo XP, 5858, 1996 Oil Injection System Diagram

#

Description
Price

1

Oil Cap Ass'y | Includes 1 - 2.

275000081

Unavailable

2

O-RING - Call your local BRP dealership

293250025

Unavailable

3

Filler Neck | GTI 5641.

275000064

Unavailable

4

Nut-Neck Oil Filler

211100013

Unavailable

5

Tridon Gear Clamp

293650170

$1.74

6

Gasket

293250016

Unavailable

7

Tridon Clamp

293650035

$5.80

8

Filler Neck Hose

275000070

Unavailable

9

Oil Tank

275000123

Unavailable

10

Grommet | Europe

707800347

$7.58

11

Grommet

709200285

$7.09

12

Elbow Fitting

414523600

$3.99

13

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

14

Oil Level Sensor

278000478

Unavailable

15

Wire Seal

278000218

$3.48

16

Male Terminal | XT Models

278000222

$2.55

17

Female Housing, 2 Circuits

278000217

$7.59

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

19

Check Valve This part replaces 275500087.

275501246

Unavailable

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

23

Elbow Fitting 90°

293710003

Unavailable

24

Oetiker Clamp

293650042

$1.40

25

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

26

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

27

Was 275500008 Hose 12 mm

219704356

$5.94
