01- Crankshaft And Pistons

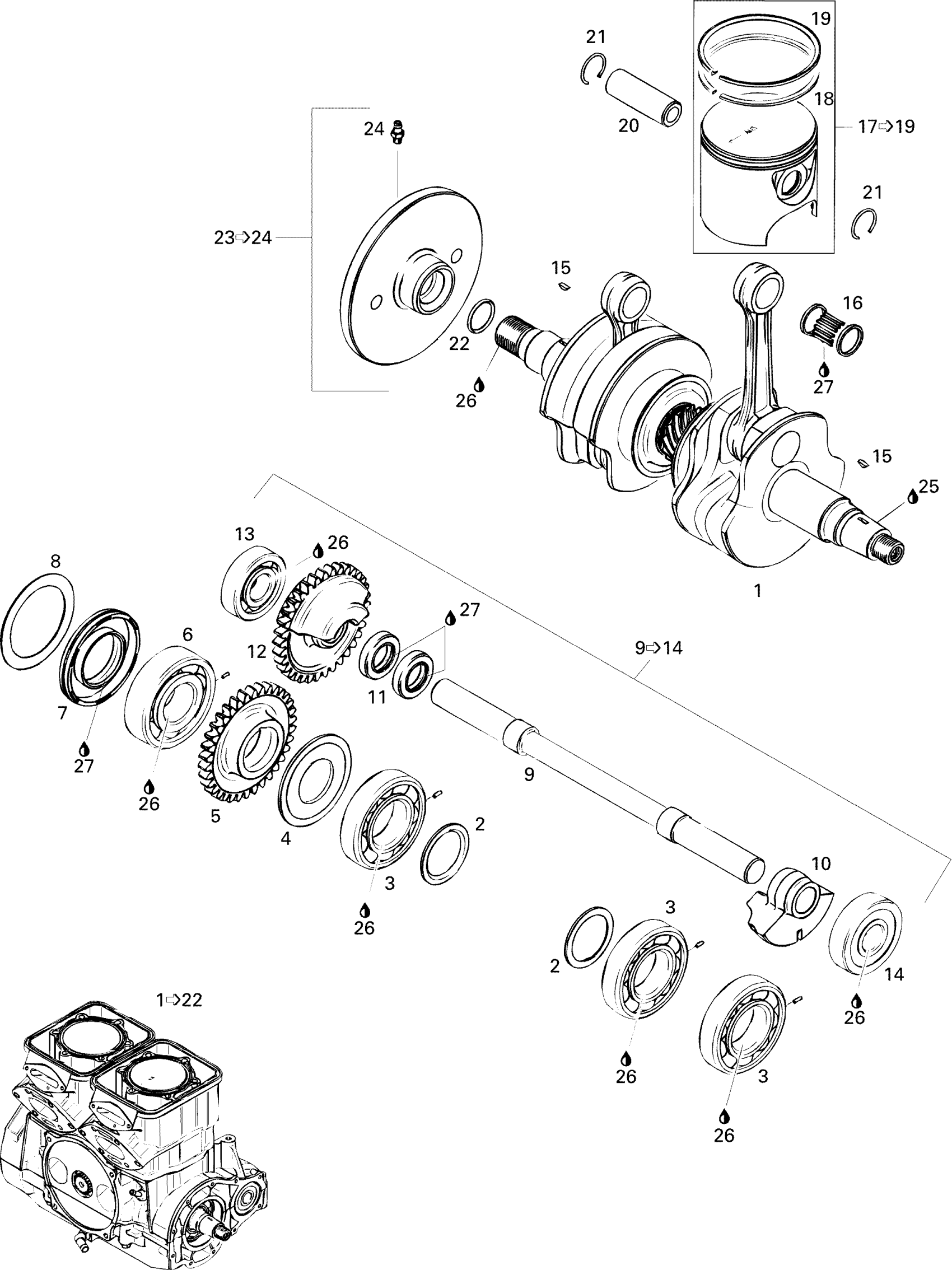

Sea-doo XP, 5858, 1996 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 23.
290881527
Unavailable
1
Crankshaft Ass‘y
290887313
Unavailable
2
Distance Ring
290827760
Unavailable
3
Ball Bearing
420832573
$44.49
4
Labyrinth Washer
290926140
Unavailable
5
GEAR 43 TEETH - Call your local BRP dealership
290834315
Unavailable
6
Ball Bearing <<6306>>
290932577
Unavailable
7
OIL SEAL - Call your local BRP dealership
290830638
Unavailable
8
RETAINING SHIM - Call your local BRP dealership
290926060
Unavailable
9
Shaft Balance Ass'y | Includes 9 - 14.
290837348
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Ball Bearing 6304E
290932095
Unavailable
14
BALL BEARING <<6304>> - Call your local BRP dealership
290932098
Unavailable
15
Woodruff Key
420246055
$2.43
16
NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
420832421
Unavailable
17
Piston with 2 Rings, 81.89 mm | Includes 17 - 19.
290887300
Unavailable
17
PISTON-ASSY. - Call your local BRP dealership This part replaces 290887301.
420887301
Unavailable
18
Rectangular Ring 82.00 mm
290815080
Unavailable
18
Rectangular Ring 82.25 mm
290815081
Unavailable
19
Semi-Trapez Ring 82.00 mm
290815100
Unavailable
19
Semi-Trapez Ring 82.25 mm
290815101
Unavailable
20
Piston Pin This part replaces 290916402.
420916404
$28.49
21
Circlip
290845100
Unavailable
22
O-Ring
420430782
$5.39
23
Clutch-Flywheel | Includes 23 - 24.
290958056
Unavailable
24
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
27
Dow Corning 111, 150 g
413707000
$59.99
28
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886390
Unavailable
29
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886395
Unavailable
