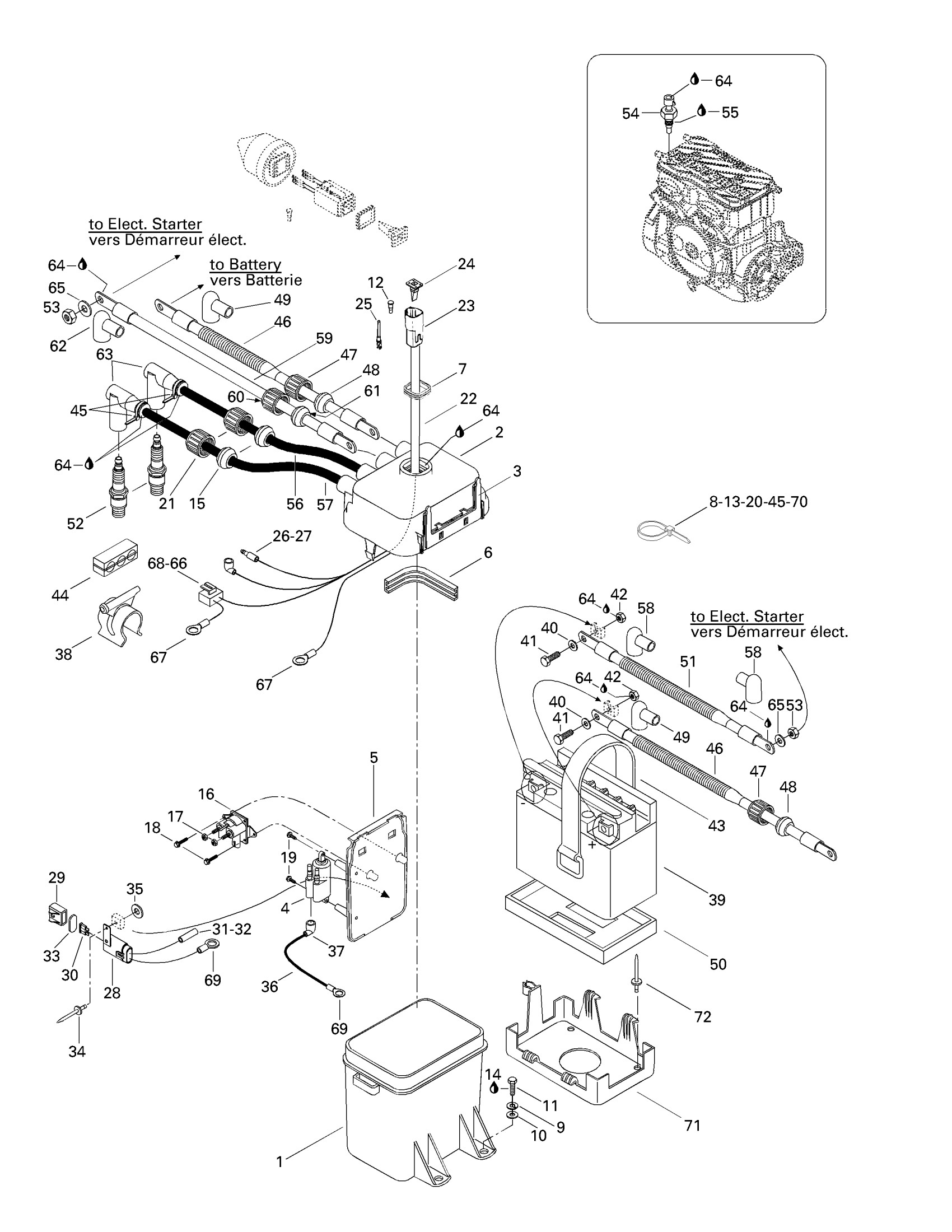

Sea-doo XP, 5662, 1997 Electrical Box Diagram

#

Description
Price

1

High Voltage Box Base

278001089

Unavailable

2

Cover | GTI 5641.

278000825

Unavailable

3

Ground Plate

278000732

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278001254

Unavailable

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

$1.25

9

Helical Lock Washer M5

234151601

$1.15

10

Flat Washer 5 mm, Stainless

234052600

$0.77

11

Hex. Screw 10-14 X 7/8”

211000023

$3.59

12

Sealing Cap

293000052

$3.19

13

Tie-Rap 180 mm

414115200

$0.11

14

Loctite 271, 10 ml

293800005

$26.99

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Electric Wire Cap

278000100

Unavailable

22

Rear Electric Box Harness (Incl. 12, 66, | Includes 22 - 27.

278001120

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulation Sheath

278000231

$5.08

28

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

29

Fuse Holder Cap

278001326

$7.69

30

Fuse, 15 Amperes

278000343

$3.28

31

Female Terminal | DS 650 X

278001009

$3.19

32

Insulated Sheath

278001007

$3.58

33

Cushion

278000805

$3.28

34

Pop Rivet 3/16"

293150005

$0.52

35

Flat Washer, Emhart

213200016

$0.72

36

Ground Harness | Includes 82 - 84.

278000664

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

38

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$153.36

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

Retainer Strap

293850097

$11.64

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25

46

Battery Cable (Red) | Includes 46 - 49.

278001090

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278000776

Unavailable

51

Battery Ground Cable

278001093

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

53

Hex. Elastic Stop Nut M6

232561600

$1.15

54

Temperature Sensor

278000965

$73.99

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

Spark Plug Wire 530 (MAG)

278000322

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

64

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

65

Stainless Flat Washer M6

234061600

$0.33

66

Female Terminal

278001114

$3.19

67

Open Barrel

278000992

$2.21

68

Male Connector, 2 Circuits

278001113

$16.86

69

Ring Terminal

278000300

Unavailable

70

Tie Wrap 368 mm

293750008

$1.04

71

Battery Support

278000476

Unavailable

72

Avdel Rivet 3/16"

293150037

$0.56
