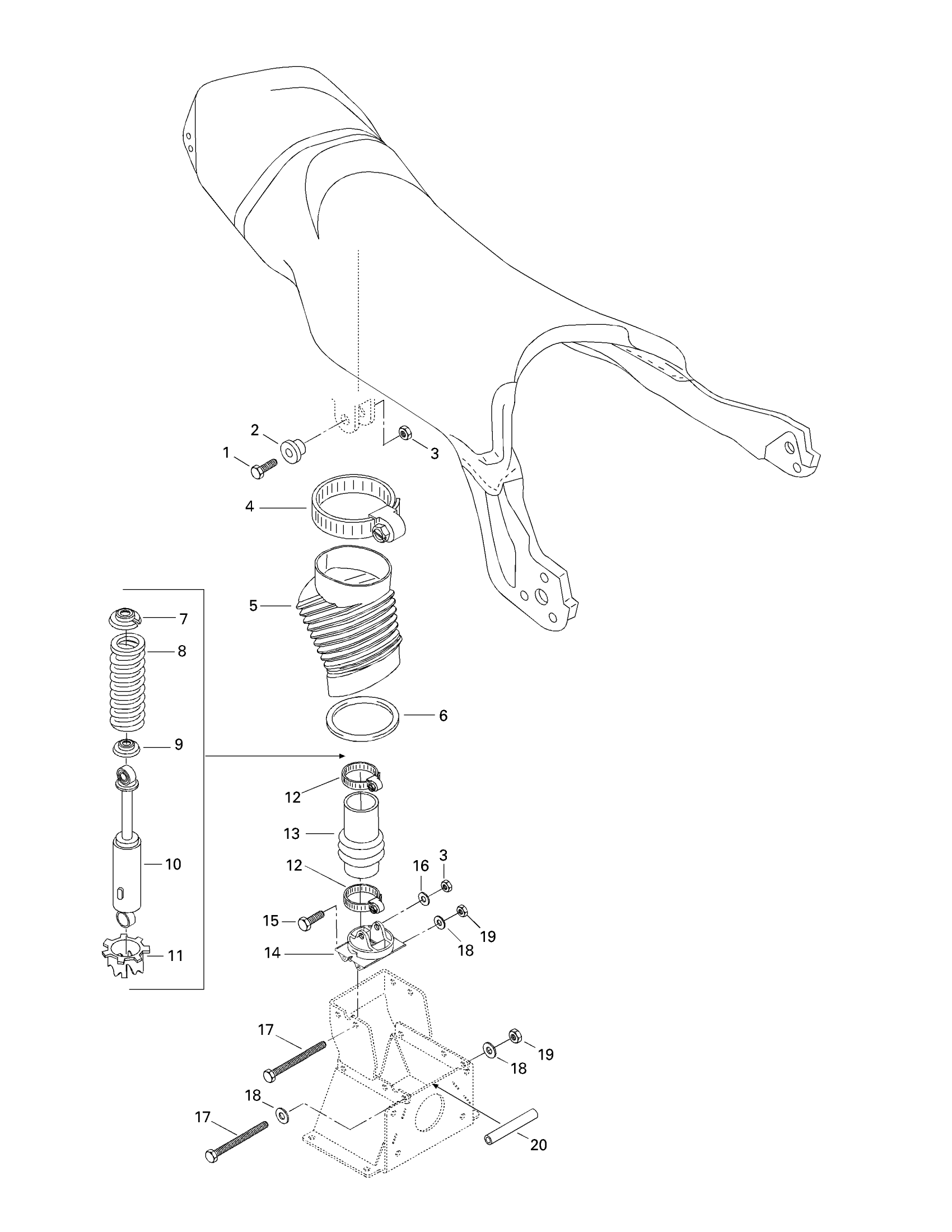

Sea-doo XP, 5662, 1997 Seat Suspension Diagram

#

Description
Price

1

Hex. Screw M10 x 70

215607060

Unavailable

2

Spacer 12 mm

269000427

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Tridon Clamp

293650054

$9.49

5

Outer Bellow

291001016

Unavailable

6

Retainer Ring

293000012

Unavailable

7

Spring Stopper

706200881

$12.99

8

Spring

291001092

Unavailable

9

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

10

Shock

291001091

Unavailable

11

ADJUSTER RING - Call your local BRP dealership

291001088

Unavailable

12

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

13

Bellow Shock

291001074

Unavailable

14

Support Lower Shock (Black)

291000119190

Unavailable

15

Hex. Screw M10 x 60

215606060

Unavailable

16

Flat Washer 10 mm, Stainless

234001600

$1.15

17

Hex. Screw M6 x 120

211000063

Unavailable

18

Stainless Flat Washer M6

234061600

$0.33

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

SPACER - Call your local BRP dealership

291000757

Unavailable
