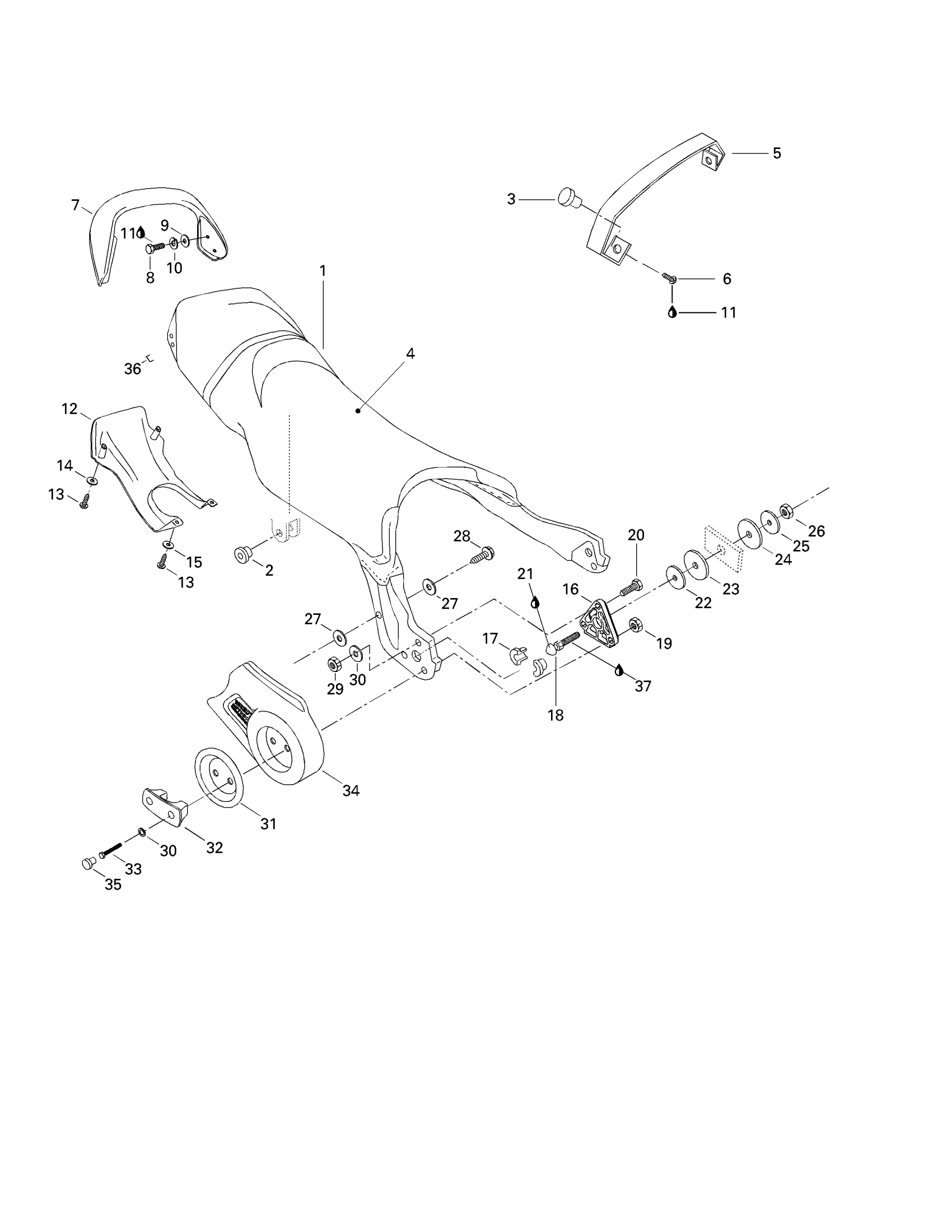

Sea-doo XP, 5662, 1997 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 - 10.

269000425

Unavailable

2

Spacer 12 mm

269000427

Unavailable

3

Threaded Insert

211100035

Unavailable

4

Seat Cover & Foam (Titane)

269000428

Unavailable

5

Seat Strap (Titane)

269000443

Unavailable

6

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

7

Grab Handle

269000434

Unavailable

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Stainless, Flat Washer 8 mm

234081600

$0.55

10

Lock Washer 8 mm, Stainless

234181601

$0.55

11

Loctite 243, 10 ml

293800060

$21.49

12

REAR BODY COVER - Call your local BRP dealership

269000429

Unavailable

13

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

14

Flat Washer M5, Stainless

234051600

$0.77

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

SEAT PIVOT - Call your local BRP dealership | Includes 20 to 26

269000448

Unavailable

16

Support Triangle

269000449

Unavailable

17

Half Bushing

269000450

Unavailable

18

Rotule Seat

269000511

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

Hex. Screw M6 X 30

207163060

$1.48

21

Synthetic Grease, 400 G

293550010

Unavailable

22

WASHER - Call your local BRP dealership

211200030

Unavailable

23

RUBBER WASHER - Call your local BRP dealership

293830029

Unavailable

24

RUBBER WASHER - Call your local BRP dealership

250200028

Unavailable

25

Washer

269000137

Unavailable

26

Hex. Elastic Nut M8

232581600

$1.48

27

Flat Washer 4 mm, Stainless

234042600

$1.15

28

Hex. Flange Screw K40 X 25

241142560

$2.64

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

Stainless Flat Washer M6

234061600

$0.33

31

Shell

292000438

Unavailable

32

Seat Bow-Eye

269000430

Unavailable

33

Hex. Screw M6 X 50

207165060

$0.92

34

RH Frame Cover

269000431

Unavailable

LH FRAME COVER - Call your local BRP dealership

269000432

Unavailable

35

Black, Cap

277000203

$9.39

36

Staple

293730005

Unavailable

37

Loctite 271, 10 ml

293800005

$26.99
