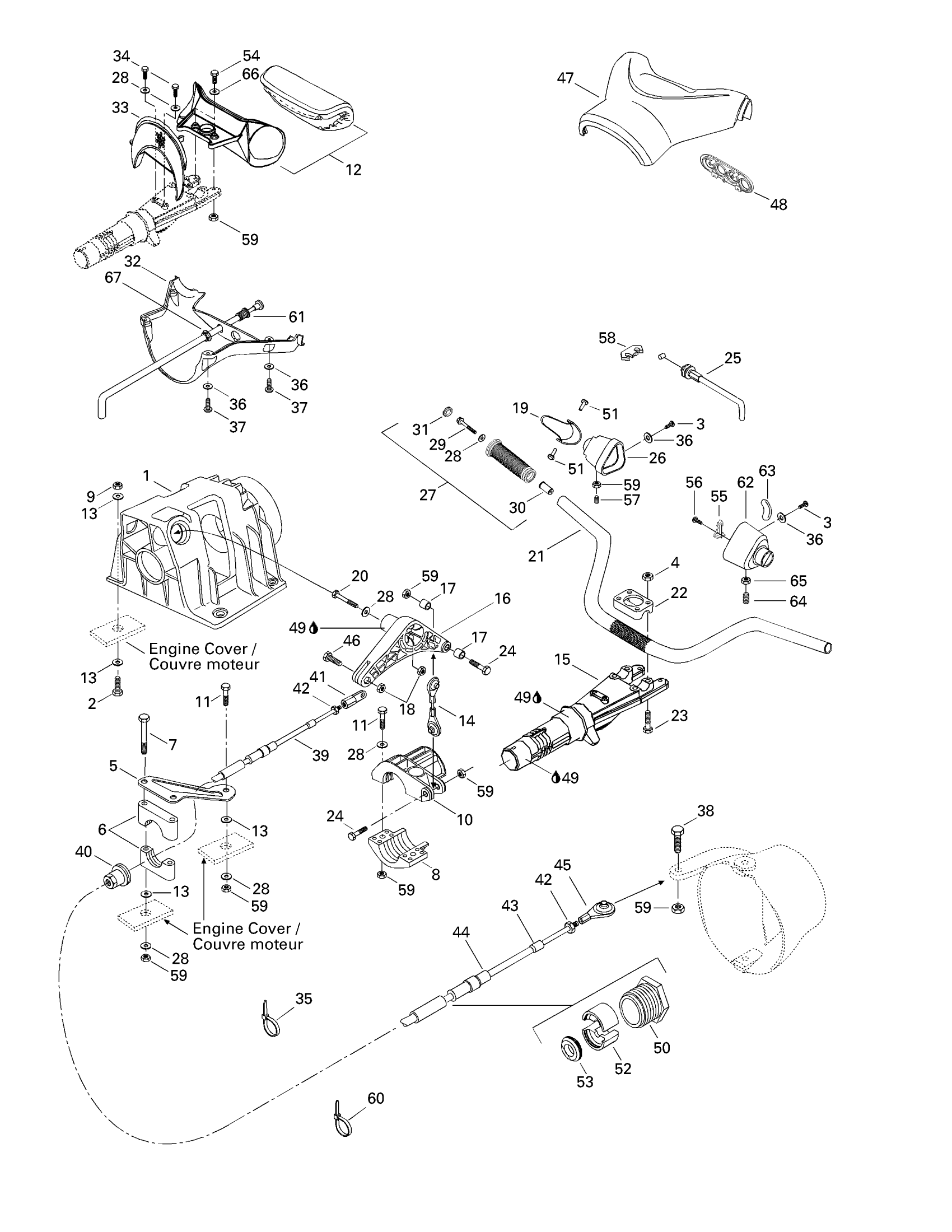

Sea-doo XP, 5662, 1997 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership

277000617

Unavailable

2

Hex. Screw M8 X 35

207083560

$1.47

3

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Cable Support

277000738

Unavailable

6

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

7

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

8

Arm Thrust | Includes 43 to 44

277000519

Unavailable

9

Hex. Elastic Nut M8

232581600

$1.48

10

Steering Arm Stem | Includes 42 to 43

277000620

Unavailable

11

Hex. Screw M6 X 25

207162560

$1.47

12

Handle Bar Pad | Includes 12 - 13.

277000627

Unavailable

13

Flat Washer M8.5 x 18

293050001

$3.07

14

Ball Joint

277000369

Unavailable

15

Steering Stem

277000562400

Unavailable

16

L Lever | Includes 16 - 18.

277000644

Unavailable

17

SPACER - Call your local BRP dealership

291000176

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Throttle Handle

277000214

Unavailable

20

Hex. Forming Screw M6 X 20

207162060

$1.29

21

Handle bar

277000305

Unavailable

22

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

23

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

24

Hex. Screw M6 X 40

207064060

$1.69

25

Throttle Cable

277000622

Unavailable

26

Throttle Handle Housing

277000285

Unavailable

27

Handle Grip Kit (Black) This part replaces 295500112.

295500110

$41.49

28

Flat Washer M6, Stainless

234062600

$0.77

29

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Black, Cap

277000203

$9.39

32

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

33

PLATE - Call your local BRP dealership

277000549

Unavailable

34

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

35

Tie Wrap 142 mm

293750002

$1.25

36

Flat Washer M5, Stainless

234051600

$0.77

37

Hex. Flange Screw K40 X 16

241141660

$1.48

38

Hex. Screw M6 X 30

207063060

$1.89

39

Steering Cable | Includes 39 - 40.

277000629

Unavailable

40

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

41

Rotule

277000740

Unavailable

42

Hex. Nut

212100005

$1.35

43

Small Boot

277000038

Unavailable

44

LARGE BOOT - Call your local BRP dealership

277000039

Unavailable

45

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

46

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

47

Upper Steering Cover | Includes 47 - 48.

277000623

Unavailable

48

Steering Cover Plate

277000674

Unavailable

49

Synthetic Grease, 400 G

293550010

Unavailable

50

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

51

PIN - Call your local BRP dealership

277000381

Unavailable

52

Half Ring

277000055

$9.49

53

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

54

Hex. Screw M6 X 30

207063060

$1.89

55

Retainer Plate

277000219

Unavailable

56

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

57

Set Screw M6 x 12

211000039

Unavailable

58

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

59

Hex. Elastic Stop Nut M6

232561600

$1.15

60

Tie Wrap 368 mm

293750008

$1.04

61

Choke Cable(Incl. It. 8)

270000265

Unavailable

62

LH HANDLE HOUSING - Call your local BRP dealership | Includes 35 - 38.

277000498

Unavailable

63

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

64

Set Screw M6 x 12

211000039

Unavailable

65

Hex. Elastic Stop Nut M6

232561600

$1.15

66

Stainless Flat Washer M6

234061600

$0.33

67

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable
