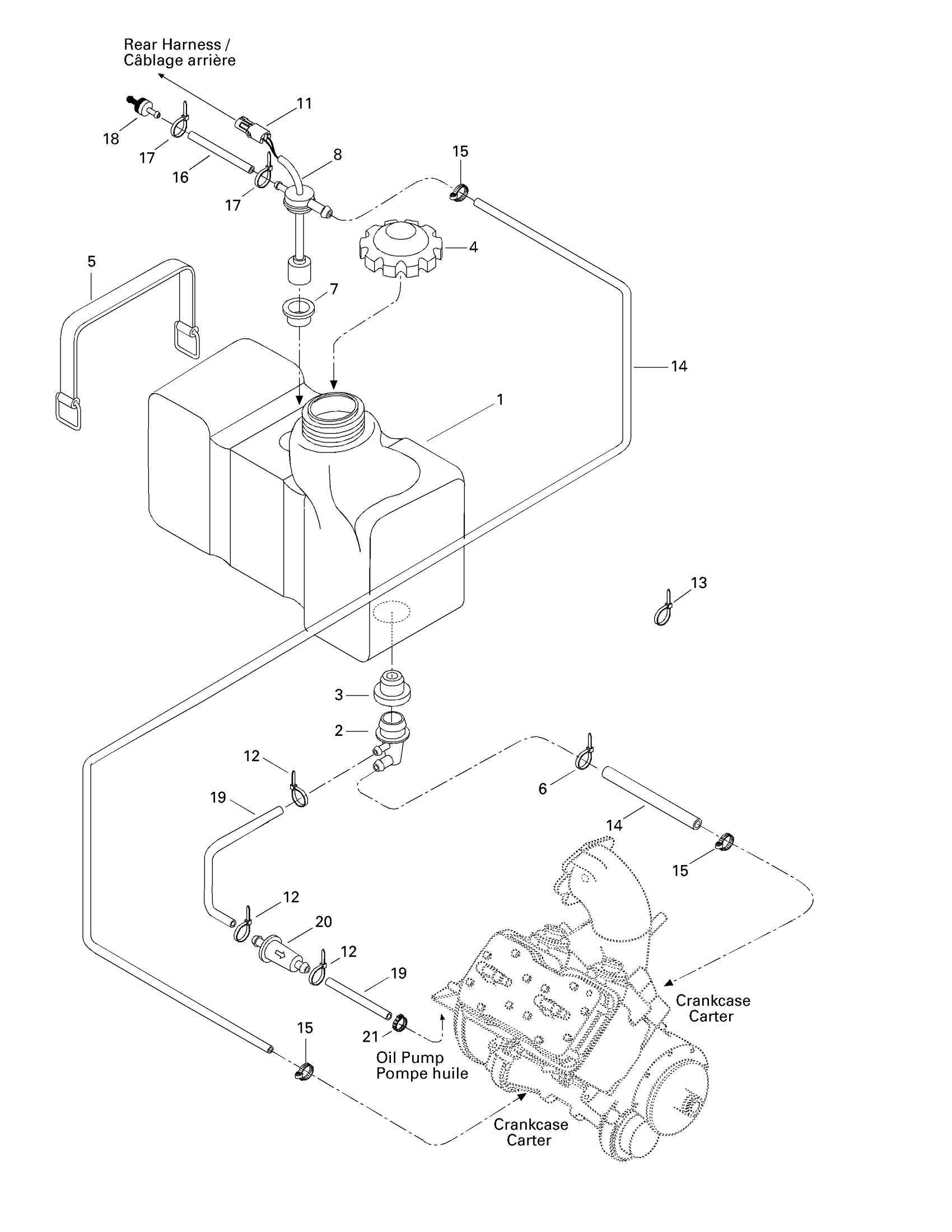

Sea-doo XP, 5662, 1997 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000210

Unavailable

2

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

3

Grommet

293720008

$14.75

4

Fuel Tank Cap

513033025

$24.49

5

Retainer Strap

293850097

$11.64

6

Tie-Rap 180 mm

414115200

$0.11

7

Grommet

204470104

Unavailable

8

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

9

Wire Seal

278000218

$4.39

10

Male Terminal | XT Models

278000222

$3.19

11

Female Housing, 2 Circuits

278000217

$9.59

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Tie-Rap 180 mm

414115200

$0.11

14

Was 275500008 Hose 12 mm

219704356

$20.49

15

Tridon Gear Clamp

293650170

$1.99

16

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

17

Tie Wrap 142 mm

293750002

$1.25

18

Check Valve This part replaces 275500087.

275501246

$10.99

19

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

20

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

21

Oetiker Clamp

293650042

$3.09
