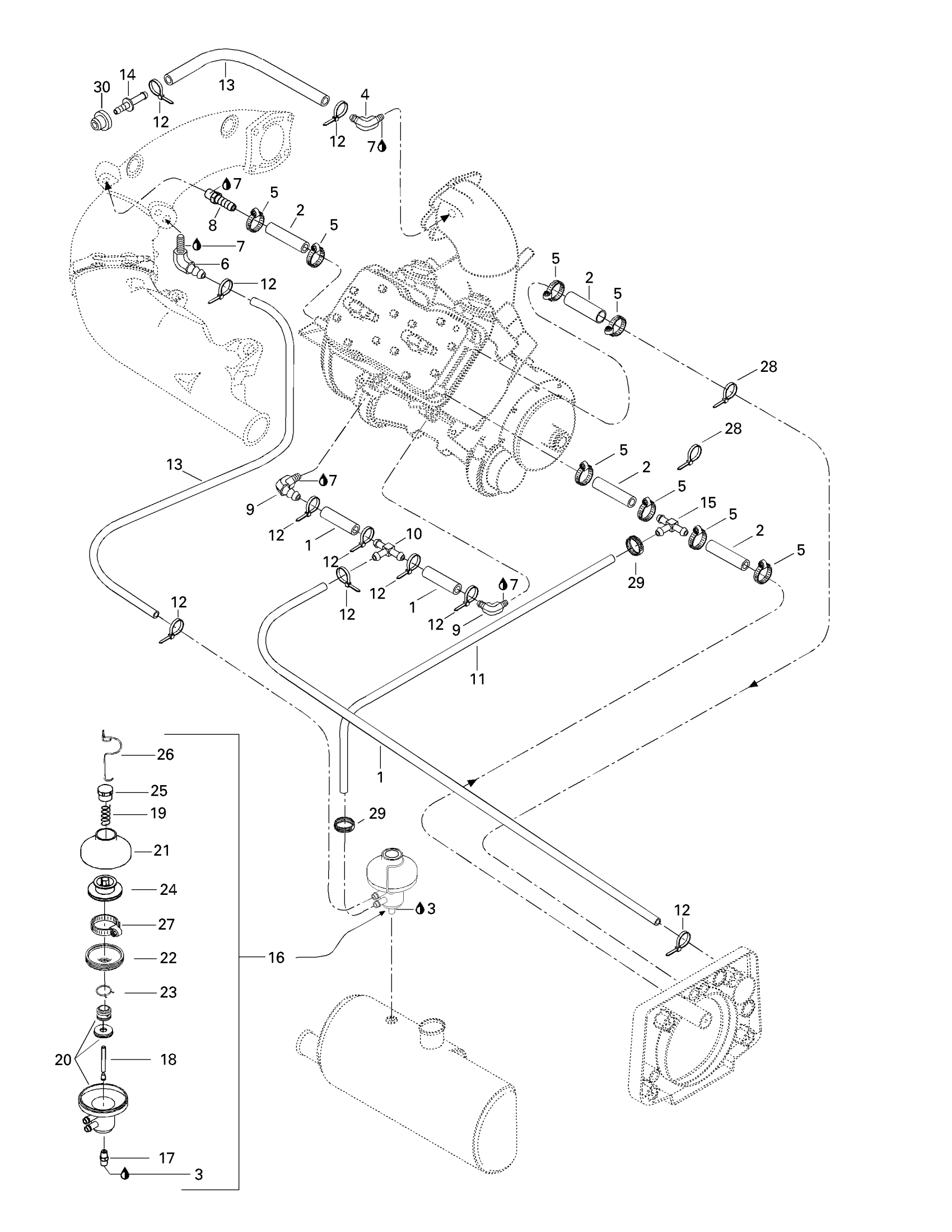

Sea-doo XP, 5662, 1997 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

2

Was 276000001 Hose 12.5 mm

219704394

$51.99

3

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

4

Elbow Fitting 90°

293710018

Unavailable

5

Tridon Gear Clamp

293650172

$3.09

6

Elbow Fitting 90°

293710048

Unavailable

7

Was 293800013 Loctite 56765

219704454

$65.99

8

Male Connector | With Catalyst

293710021

$14.23

9

Elbow Fitting

293700016

Unavailable

10

T-FITTING - Call your local BRP dealership

293710061

Unavailable

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

Straight Fitting

293710039

$7.59

15

T-FITTING - Call your local BRP dealership

293710052

$12.70

16

Pressure Regulator Ass'y | Includes 16 - 27.

274000611

Unavailable

17

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

18

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

19

Spring 50 mm

274000612

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Valve Cover

420911552

$38.99

22

Bellow

420260721

$51.99

23

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

24

EXHAUST VALVE - Call your local BRP dealership

420253255

Unavailable

25

Adjuster Screw

420241221

$14.22

26

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

27

Rivalair Clamp

293650065

Unavailable

28

Tie-Rap 180 mm

414115200

$0.11

29

Oetiker Clamp

293650042

$3.09

30

Grommet

293720029

$1.59
