10- Electronic Module And Electrical Accessories

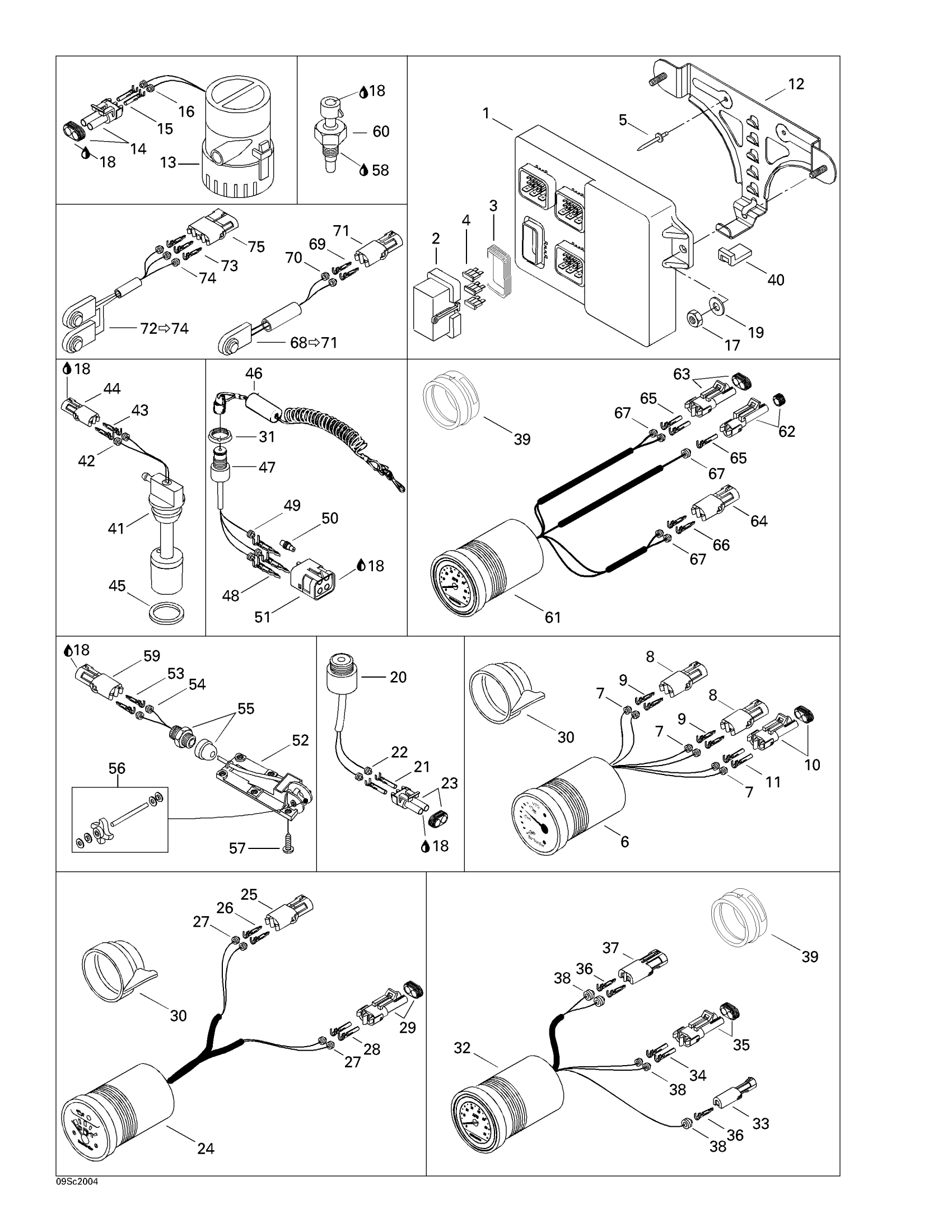

Sea-doo XP, 5651/5655, 2000 10- Electronic Module And Electrical Accessories Diagram
#
1
ELECTRONIC MODULE - Call your local BRP dealership | Includes 1 - 4.
278001526
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
Cover Seal
278001070
Unavailable
4
Fuse, 15 Amperes
278000343
$3.28
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
Fuse, 5 Amperes | CE
278000344
$3.28
5
Pop Rivet 3/16"
293150039
$1.49
6
VTS Gauge | Includes 6 - 11.
278001339
Unavailable
7
Wire Seal
278000218
$4.39
8
Female Housing, 2 Circuits
278000217
$9.59
9
Male Terminal | XT Models
278000222
$3.19
10
Male Connector, 2 Circuits
278000220
$15.49
11
Female Terminal
278000223
$3.19
12
Module Support Ass'y
291001194
Unavailable
13
BILGE PUMP - Call your local BRP dealership | Includes 22 to 25
278001176
$199.99
14
Male Connector, 2 Circuits
278000220
$15.49
15
Female Terminal
278000223
$3.19
16
Wire Seal
278000218
$4.39
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
19
Flat Washer M6, Stainless
234062600
$0.77
20
Buzzer Ass'y | Includes 10 - 13.
278001565
Unavailable
21
Female Terminal
278000223
$3.19
22
Wire Seal
278000218
$4.39
23
Male Connector, 2 Circuits
278000220
$15.49
24
Fuel/Oil Gauge | Includes 24 - 29.
278001389
Unavailable
25
Female Housing, 2 Circuits
278000217
$9.59
26
Male Terminal | XT Models
278000222
$3.19
27
Wire Seal
278000218
$4.39
28
Female Terminal
278000223
$3.19
29
Male Connector, 2 Circuits
278000220
$15.49
30
GAUGE SUPPORT - Call your local BRP dealership
293720005
Unavailable
31
Safety Nut (DESS Switch)
278002963
$3.28
32
Speedometer | Includes 32 - 38.
278001340
Unavailable
33
Female Housing, 1 Circuit
278000161
$9.59
34
Female Terminal
278000223
$3.19
35
Male Connector, 2 Circuits
278000220
$15.49
36
Male Terminal | XT Models
278000222
$3.19
37
Female Housing, 2 Circuits
278000217
$9.59
38
Wire Seal
278001065
$7.69
39
Gauge Support
293720047
Unavailable
40
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
41
Oil Sensor | Includes 44 to 48
278001402
Unavailable
42
Wire Seal
278000218
$4.39
43
Male Terminal | XT Models
278000222
$3.19
44
Female Housing, 2 Circuits
278000217
$9.59
45
Grommet
293720008
$14.75
46
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
47
Safety Switch | Includes 15 - 19.
278000977
Unavailable
48
Male Terminal | XT Models
278000222
$3.19
49
Wire Seal
278000218
$4.39
50
Wire Seal
278000216
$3.19
51
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
52
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
55
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
56
Paddle Wheel Kit
295500108
Unavailable
57
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership
250000021
Unavailable
58
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
59
Female Housing, 2 Circuits
278000217
$9.59
60
Temperature Sensor
278002895
$39.99
61
Tachometer | Includes 61 - 67.
278001381
Unavailable
62
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
63
Male Connector, 2 Circuits
278000220
$15.49
64
Female Housing, 2 Circuits
278000217
$9.59
65
Female Terminal
278000223
$3.19
66
Male Terminal | XT Models
278000222
$3.19
67
Wire Seal
278000218
$4.39
68
Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.
278001358
Unavailable
69
Male Terminal | XT Models
278000222
$3.19
70
Wire Seal
278000218
$4.39
71
Female Housing, 2 Circuits
278000217
$9.59
72
VTS Switch | Includes 53 - 55.
278001533
Unavailable
73
Male Terminal | XT Models
278000222
$3.19
74
Wire Seal
278000218
$4.39
75
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
