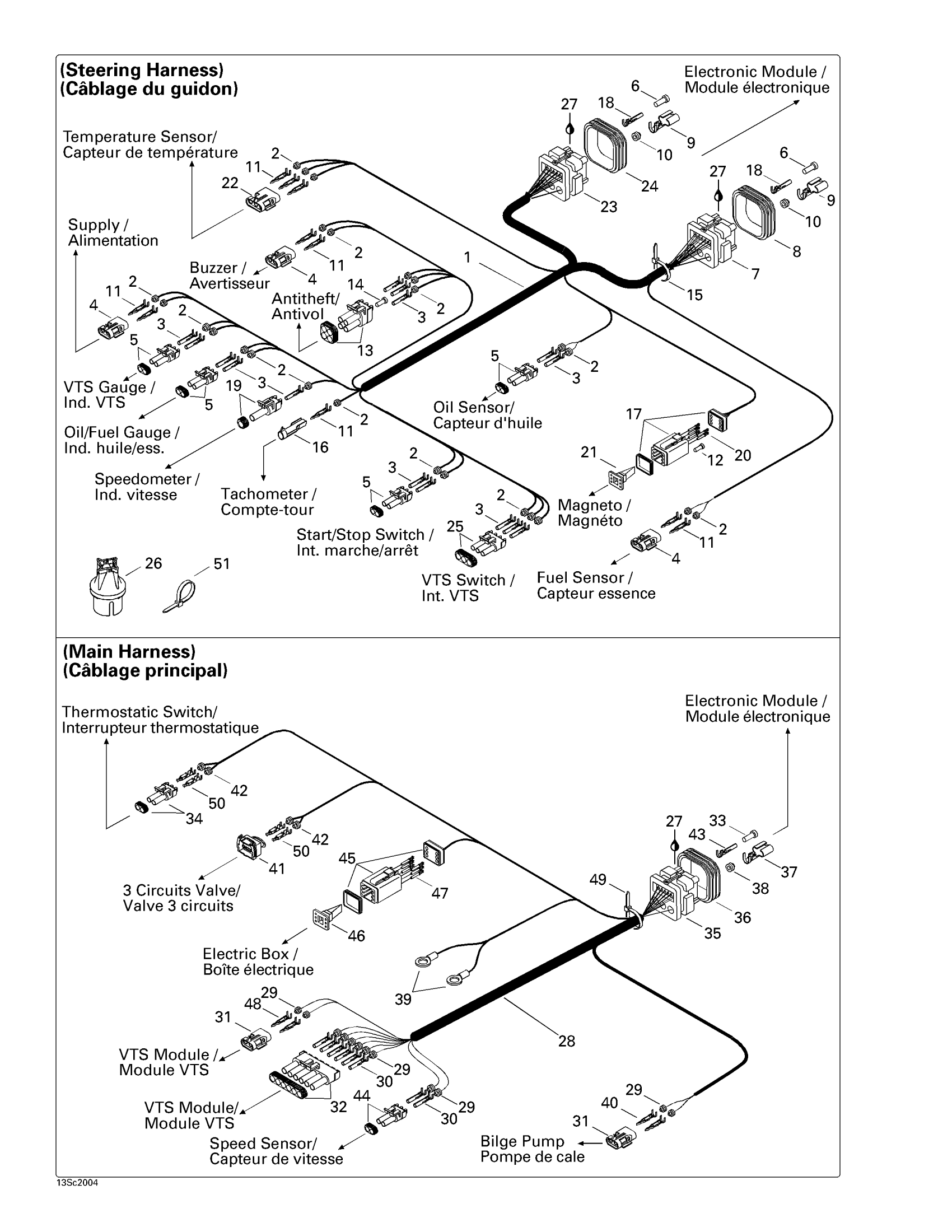

Sea-doo XP, 5651/5655, 2000 10- Electrical Harness Diagram
#
1
Steering Harness | Includes 1 - 26.
278001549
Unavailable
2
Wire Seal
278000218
$4.39
3
Female Terminal
278000223
$3.19
4
Female Housing, 2 Circuits
278000217
$9.59
5
Male Connector, 2 Circuits
278000220
$15.49
6
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
7
Male Terminal Housing, 26 Circuits
278001062
Unavailable
8
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
9
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
10
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
11
Male Terminal | XT Models
278000222
$3.19
12
Sealing Cap
293000052
$3.19
13
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
14
Wire Seal
278000216
$3.19
15
Tie Wrap 142 mm
293750002
$1.25
16
Female Housing, 1 Circuit
278000161
$9.59
17
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
18
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
19
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
20
Female Terminal
278000632
$2.09
21
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
22
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
23
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
24
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
25
Male Housing, 3 Circuits
278000273
$9.59
26
Grommet
293720040
Unavailable
27
*(Ormd) *Deoxit Aerosol *
293550034
$38.99
28
Main Harness | Includes 28 - 50.
278001390
Unavailable
29
Wire Seal
278000218
$4.39
30
Female Terminal
278000223
$3.19
31
Female Housing, 2 Circuits
278000217
$9.59
32
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
33
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
34
Male Housing, 2 Circuits
278001005
$19.49
35
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
Unavailable
36
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
37
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
38
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
39
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
40
Male Terminal | XT Models
278000222
$3.19
41
Male Connector, 2 Circuits
278001003
$46.49
42
Wire Seal
278000999
$3.19
43
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
44
Male Connector, 2 Circuits
278000220
$15.49
45
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
46
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
47
Female Terminal
278000632
$2.09
48
Male Terminal
409004300
$5.61
49
Tie Wrap 142 mm
293750002
$1.25
50
Female Terminal
278000998
$4.39
51
Tie-Rap 180 mm
414115200
$0.11
